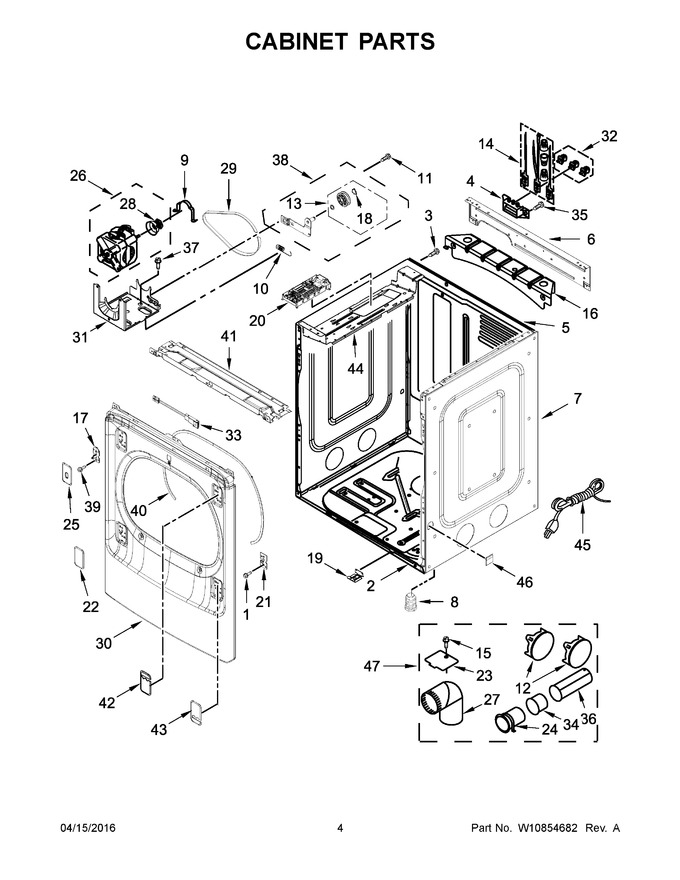

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	6-920119		Screw		Appelez-nous	-
2	W10613683		Base, Cabinet				$ 191.97
3	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.79
4	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 23.02
5	W10824896		Panel, Rear				$ 296.49
6	W10622396		Bracket, Upper Rear Panel		Appelez-nous	-
7	W10663407		Panel, Side (without Sight Hole) (white)		Appelez-nous	-
8	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
9	WPW10121316		Clamp, Motor Mount   (Replaces: W10121316)			Immediately	$ 25.68
10	WPW10446781		Spring, Idler   (Replaces: W10446781)			Immediately	$ 24.57
11	WP3389420		Screw   (Replaces: 3389420)				$ 8.02
12	WPW10404617		Plug, Multivent (white)   (Replaces: 49252)				$ 71.98
13	279640		Assembly, Pulley   (Replaces: W10468057)			Immediately	$ 32.51
14	279318		Terminal, Brass And Tinned (includes Terminal Block Screw Kit)			Immediately	$ 100.99
15	W11568617		Screw   (Replaces: W10567155)				$ 14.02
16	W11282908		Spacer Bracket, Upper   (Replaces: W10632348)		Appelez-nous	-
17	W10627440		Strike		Appelez-nous	-
18	WPW10512946		Washer, Tri Ring   (Replaces: W10512946)			Immediately	$ 8.80
19	W10632347		Spacer Bracket, Lower		Appelez-nous	-
20	W10901867		Control, Electronic   (Replaces: W10751776)		Appelez-nous	-
21	W10596959		Bracket, Hinge				$ 20.00
22	W10627437		Plug, Hinge (white)		Appelez-nous	-
23	WPW10354249		Plate, Cover   (Replaces: 3394331)				$ 8.96
24	WP8563747		Pipe, Exhaust (medium)   (Replaces: 8563747)				$ 91.38
25	W10627435		Cover, Strike (white)		Appelez-nous	-
26	W11105178		Assembly, Motor   (Replaces: W10806759)			Immediately	$ 319.29
27	WPW10416072		Elbow   (Replaces: 49026)				$ 26.82
28	W11568637		Pulley, Motor   (Replaces: W10669447)				$ 82.46
29	W11568627		Belt, Drive   (Replaces: W10577771)				$ 26.24
30	W10884829		Panel, Front (white)   (Replaces: W10627425)				$ 305.12
31	W10578053		Bracket, Motor Mounting				$ 87.83
32	279393		Screw Kit, Terminal Block			Immediately	$ 47.37
33	W10761357		Switch, Door		Appelez-nous	-
34	WPW10331278		Pipe, Exhaust (short)   (Replaces: 8563750)				$ 78.95
35	WP308685		Screw   (Replaces: 3393008)			Immediately	$ 7.87
36	WP8563749		Pipe, Exhaust (long)   (Replaces: 8563749)				$ 88.80
37	WP681414		Screw   (Replaces: 343641)			Immediately	$ 7.85
38	W10837240		Assembly, Idler   (Replaces: W10547287)			Immediately	$ 35.78
39	W10704731		Screw		Appelez-nous	-
40	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
41	W10627432		Bracket, Front Console		Appelez-nous	-
42	W10627436		Hinge Cover, Top (white)		Appelez-nous	-
43	W10627438		Hinge Cover, Bottom (white)		Appelez-nous	-
44	W10623568		Bracket, Electronic Control		Appelez-nous	-
45	W11628810		Cord, Power   (Replaces: W10706056)				$ 97.05
46	W10811916		Plug, Sight Hole (white)   (Replaces: 8564457)				$ 15.71
47	W10858320		Dryer Exhaust Kit (for Side & Bottom Venting), 4 Way Vent Kit				$ 116.12
12A	WPW10404617		Plug, Multivent (midnight Grey)   (Replaces: W10151499)				$ 71.98
22A	W10627445		Plug, Hinge (grey)		Appelez-nous	-
25A	W10627443		Cover, Strike (grey)		Appelez-nous	-
30A	W10884830		Panel, Front (chrome Shadow)   (Replaces: W10627426)				$ 314.00
42A	W10627444		Hinge Cover, Top (grey)		Appelez-nous	-
43A	W10627439		Hinge Cover, Bottom (grey)		Appelez-nous	-
46A	W10391496		Plug, Sight Hole (chrome Shadow)		Appelez-nous	-
7A	W10681832		Panel, Side (chrome Shadow (with Sight Hole))		Appelez-nous	-
7B	W10901854		Panel, Side (white)   (Replaces: W10663408)		Appelez-nous	-
7C	W10901866		Panel, Side (chrome Shadow)   (Replaces: W10681833)		Appelez-nous	-
NI	49621		Foot, Optional (extended Length Package Of 2) (not Included)   (Replaces: 279810)			Immediately	$ 8.55
