SELECT A DIAGRAM

01 - Cover Sheet


02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts

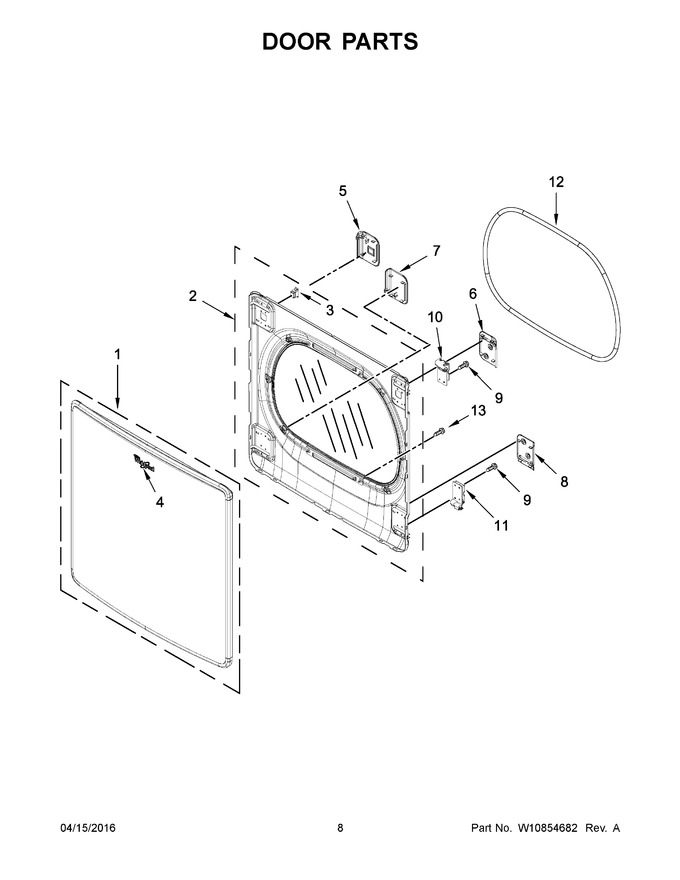

05 - Door Parts


06 - Burner Assembly Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10673368		Assembly, Outer Door		Appelez-nous	-
2	W11308254		Assembly, Inner Door (white)   (Replaces: W10635108)		Appelez-nous	-
3	W10644609		Assembly, Door Catch		Appelez-nous	-
4	WPW10511972		Badge (grey)   (Replaces: W10511972)				$ 79.55
5	W10808672		Cover, Door Catch (white)   (Replaces: W10635116)				$ 103.41
6	W10635117		Hinge Cover, Top (white)		Appelez-nous	-
7	W10808672		Hinge Cover, Bottom Left (white)   (Replaces: W10635118)				$ 103.41
8	W10635119		Hinge Cover, Bottom Right (white)		Appelez-nous	-
9	WP488627		Screw   (Replaces: 342055)				$ 8.11
10	W10635131		Hinge Assembly, Door - A		Appelez-nous	-
11	W10635137		Hinge Assembly, Door - B		Appelez-nous	-
12	W10763835		Seal, Door			Immediately	$ 129.79
13	W10850046		Screw   (Replaces: 9742177)			Immediately	$ 7.55
2A	W10673369		Assembly, Inner Door (chrome Shadow)		Appelez-nous	-
5A	W10661173		Cover, Door Catch (grey)		Appelez-nous	-
6A	W10661174		Hinge Cover, Top (grey)				$ 49.32
7A	W10808672		Hinge Cover, Bottom Left (grey)   (Replaces: W10661175)				$ 103.41
8A	W10661176		Hinge Cover, Bottom Right (grey)				$ 49.08
