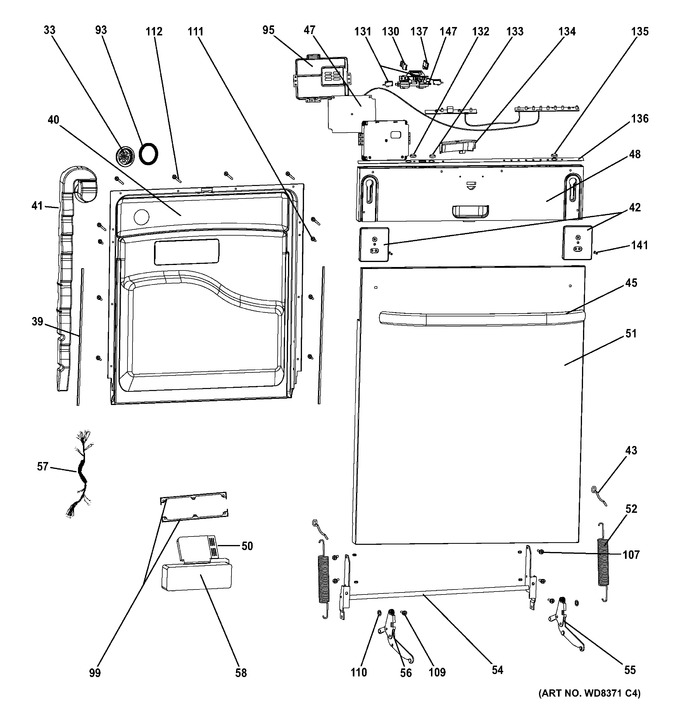

1 - Escutcheon & Door Assembly
2 - Body Parts
3 - Rack Assemblies
4 - Motor-pump Mechanism
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 33 | WD01X10309 | Ring Nut W/gasket |
|
- | |||||
| 39 | WD08X10079 | Edge Guard Wh |
|
- | |||||
| 40 | WG04L03107 | Inner Door Asm (Replaces: WD31X10114) |
|
Immediately | $ 133.28 | ||||
| 41 | WG04F07112 | Duct Vent & Gasket Asm (Replaces: WD24X10044) |
|
$ 92.30 | |||||
| 42 | WD01X10391 | Handle Bracket |
|
- | |||||
| 43 | WD01X10250 | Door Hinge Pin |
|
- | |||||
| 45 | WD09X10071 | Handle Asm Wh |
|
- | |||||
| 47 | WD21X22402 | Control Pcb Asm |
|
- | |||||
| 48 | WD34X11643 | Escutcheon Asm Wh |
|
- | |||||
| 50 | WG04L00093 | Cap Rinse Asm (Replaces: WD12X10122) |
|
$ 39.70 | |||||
| 51 | WG04L01827 | Outer Door Wh (Replaces: WD31X10117) |
|
$ 83.29 | |||||
| 52 | WG04L02288 | Hinge Assembly (Replaces: WD14X10026) |
|
$ 65.00 | |||||
| 54 | WD03X10031 | Door Hinge Spring Ss |
|
- | |||||
| 55 | WD14X10027 | Hinge Asm & Screws Rh |
|
- | |||||
| 56 | WD14X10028 | Hinge Asm & Screws Lh |
|
- | |||||
| 57 | WD21X22403 | Harness |
|
- | |||||
| 58 | WD12X10220 | Detergent Dispenser |
|
- | |||||
| 93 | WD01X10320 | O-ring |
|
- | |||||
| 95 | WD01X10390 | Cover Power Board |
|
- | |||||
| 99 | WD01X10321 | Bracket Detergent Disp |
|
- | |||||
| 107 | WD02X10137 | Cscrew M5 X 10 |
|
- | |||||
| 109 | WD01X10326 | Joint Pin |
|
- | |||||
| 110 | WD01X10327 | Spring Washer |
|
- | |||||
| 111 | WD02X10139 | Screw-tapping St3.5 X 13 |
|
- | |||||
| 112 | WD02X10165 | Screw St3.5 X 39 |
|
- | |||||
| 130 | WD21X10391 | Left Switch Breakwater |
|
- | |||||
| 131 | WG04F12233 | Microswitch (Replaces: WD21X10392) |
|
$ 57.25 | |||||
| 132 | WD01X22741 | Start-reset Button White |
|
- | |||||
| 133 | WD01X10428 | Delay Button Wh |
|
- | |||||
| 134 | WD31X10113 | Handle Cover Wh |
|
- | |||||
| 135 | WD01X10435 | Select Button Wh |
|
- | |||||
| 136 | WD34X11645 | Keypad Wh |
|
- | |||||
| 137 | WG04F05580 | Right Switch Breakwater (Replaces: WD21X10393) |
|
$ 3.97 | |||||
| 141 | WD02X10174 | Screw M5x20 |
|
- | |||||
| 147 | WD13X10046 | Latch Asm |
|
- |
