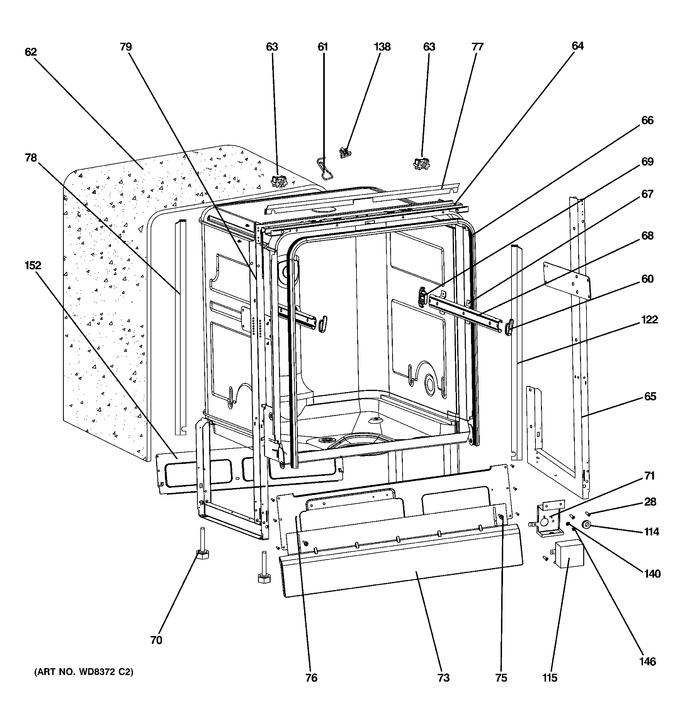

1 - Escutcheon & Door Assembly


2 - Body Parts


3 - Rack Assemblies


4 - Motor-pump Mechanism


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
28	WD02X10133		Screw		Appelez-nous	-
60	WG04L01551		Cap - Guide Rail (front)   (Replaces: WD12X10314)				$ 5.96
61	WD01X10429		Door Lock - Hook		Appelez-nous	-
62	WG04F01208		Tub Insulation   (Replaces: WD01X10313)				$ 128.97
63	WD01X10329		Hook Wh		Appelez-nous	-
64	WD30X10031		Upper Front Brace Wh		Appelez-nous	-
65	WD30X10025		Right Frame		Appelez-nous	-
66	WD08X10063		Tub Gasket		Appelez-nous	-
67	WD12X10317		Guide Rail Bracket Asm W		Appelez-nous	-
68	WD30X10029		Guide Rail		Appelez-nous	-
69	WD12X10315		Cap - Guide Rail (back)		Appelez-nous	-
70	WG02L01018		Leveling Leg   (Replaces: WD02X10134)				$ 9.25
71	WD12X10223		Bracket - Junction Box		Appelez-nous	-
73	WG04L03146		Toe Kick Wh   (Replaces: WD27X10268)				$ 35.73
75	WD02X10177		Screw3.9*13		Appelez-nous	-
76	WG04L03219		Lower Front Brace   (Replaces: WD01X10315)				$ 49.21
77	WD08X10069		Top Trim Wh		Appelez-nous	-
78	WG04L02627		Side Trim - Left Wh   (Replaces: WD08X10070)				$ 21.32
79	WD30X10026		Left Frame		Appelez-nous	-
114	WD01X10328		Junction Guard Ring		Appelez-nous	-
115	WD12X10229		Cover - Junction Box		Appelez-nous	-
122	WD08X10071		Side Trim Right Wh		Appelez-nous	-
138	WG04L00134		Coupling Block   (Replaces: WD01X10426)				$ 4.20
140	WD02X10199		Nut		Appelez-nous	-
146	WD02X22401		Screw		Appelez-nous	-
152	WD01X10440		Lower Back Brace		Appelez-nous	-
