10 - Case Parts


1 - Dispenser Door


2 - Machine Compartment


3 - Freezer Door


4 - Fresh Food Door - Rh


5 - Freezer Section


6 - Freezer Shelves


7 - Ice Maker & Dispenser


8 - Fresh Food Section


9 - Fresh Food Shelves

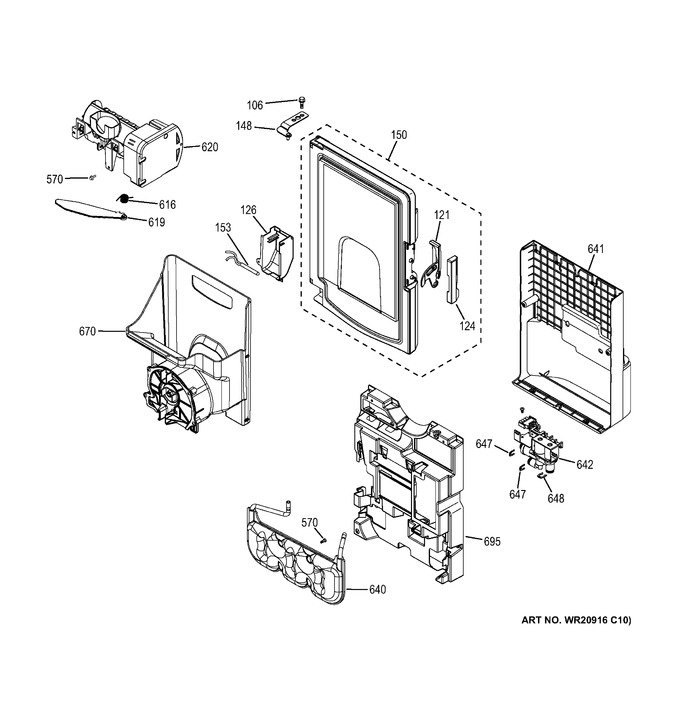

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
106	WR01X11054		Scr 8-18 Flp 1/2 S		Appelez-nous	-
121	WR11X10031		Latch Icebox Door		Appelez-nous	-
124	WR02X23032		Cover Latch		Appelez-nous	-
126	WR17X13067		Cover Am Im Harness		Appelez-nous	-
148	WR13X10972		Hinge Top Door Icebox		Appelez-nous	-
150	WR78X25914		Door Icebox Foam Asm		Appelez-nous	-
153	WR55X11142		Sensor Temperature		Appelez-nous	-
570	WR1X1757		Scr 8-18 Hxw 1 1/4s		Appelez-nous	-
616	WR29X10112		Spring Feeler Arm		Appelez-nous	-
619	WR29X10110		Arm Feeler Im		Appelez-nous	-
620	WG03F07552		Ice Maker Asm-for Door   (Replaces: WR30X10160)			Immediately	$ 184.41
640	WR17X24972		Tank Cold Water Asm		Appelez-nous	-
641	WR02X25186		Cover Valve And Tank		Appelez-nous	-
642	WG03F01814		Valve Dual Water   (Replaces: WR57X10098)			Immediately	$ 118.98
647	WR01X11041		Quick Clip Connector 1/4		Appelez-nous	-
648	WR01X11040		Quick Clip Conn 5/16		Appelez-nous	-
670	WR30X10174		Ice Bucket & Crusher		Appelez-nous	-
695	WR13X25912		Housing Tray Valve Tank		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
