SELECT A DIAGRAM

10 - Case Parts


1 - Dispenser Door


2 - Machine Compartment


3 - Freezer Door


4 - Fresh Food Door - Rh


5 - Freezer Section


6 - Freezer Shelves


7 - Ice Maker & Dispenser


8 - Fresh Food Section


9 - Fresh Food Shelves

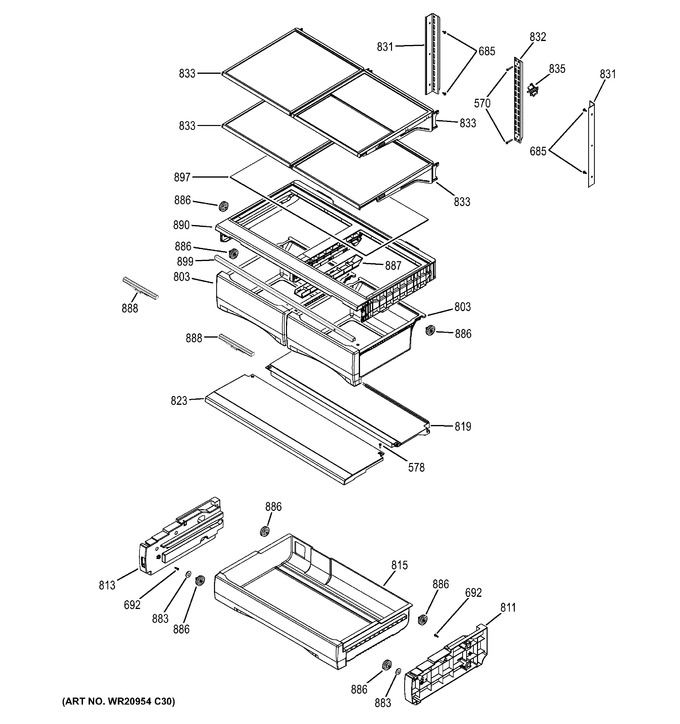

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
570	WR1X1757		Scr 8-18 Hxw 1 1/4s		Appelez-nous	-
578	WR01X11012		Scr 8-18 Ab Hxw 9/16 S		Appelez-nous	-
685	WR1X1804		Scr 8-18 Ab Hxw 3/4 Wh		Appelez-nous	-
692	WZ04X0416		Scr 8-18 Ab Hxw 3/4		Appelez-nous	-
803	WR32X10897		Pan Veg Asm		Appelez-nous	-
811	WR72X24401		Support Side Rh		Appelez-nous	-
813	WR72X24400		Support Side Lh		Appelez-nous	-
815	WR32X23743		Pan Meat Asm		Appelez-nous	-
819	WR72X23040		Cover Mp Top Back		Appelez-nous	-
823	WR32X24374		Cover Mp Top Front		Appelez-nous	-
831	WR72X21071		Track Side Ff		Appelez-nous	-
832	WR72X10429		Track Center Ff		Appelez-nous	-
833	WR32X10887		Shelf Cantilever Asm		Appelez-nous	-
835	WR02X13679		Spacer Track		Appelez-nous	-
883	WR01X23746		Washer Lock		Appelez-nous	-
886	WR02X13658		Roller Asm		Appelez-nous	-
887	WR72X10444		Guide Roller Veg Pan		Appelez-nous	-
888	WR17X24925		Damper Veg Pan		Appelez-nous	-
890	WR32X10892		Art Frame Vp Asm		Appelez-nous	-
897	WR32X10893		Glass Veg Pan		Appelez-nous	-
899	WR02X21803		Bar Reinforcement		Appelez-nous	-
