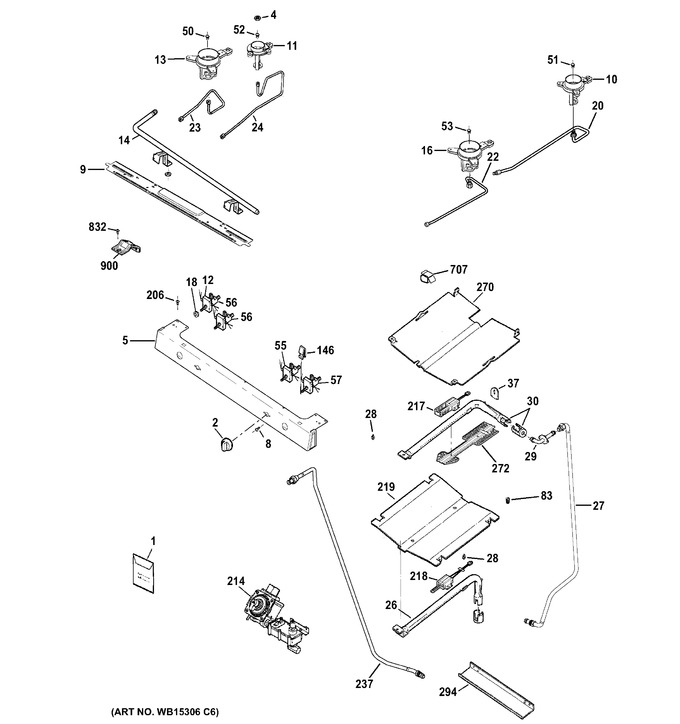

1 - Gas & Burner Parts
2 - Control Panel & Cooktop
3 - Body Parts
4 - Door & Drawer Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB49X21392 | Hinge Service Kit |
|
- | |||||
| 1 | 31-10998 | Pm Install Instructions |
|
- | |||||
| 1 | 31-11027 | Pm Install Instructions |
|
- | |||||
| 1 | 31-17101 | Pm Install Instructions |
|
- | |||||
| 1 | 49-85224 | Pm Gas Quick Guide |
|
- | |||||
| 1 | WB49X26612 | Kit Lp Conversion Asm |
|
- | |||||
| 1 | WB49X26121 | Kit Butane Conversion As |
|
- | |||||
| 1 | WB28X20687 | Kit High Altitude Asm |
|
- | |||||
| 1 | WB49X25441 | Ng Kit High Altitude Asm |
|
- | |||||
| 2 | WS01L13900 | Knob Asm (Replaces: WB03X24818) |
|
Immediately | $ 23.53 | ||||
| 4 | WS01A01130 | Economic Nut (Replaces: WB01K10037) |
|
Immediately | $ 16.28 | ||||
| 5 | WB36X26615 | Panel And Cover Asm |
|
- | |||||
| 8 | WS01A01212 | Screw 8-32 (Replaces: WB01K10002) |
|
$ 88.13 | |||||
| 9 | WB02K10272 | Manifold Support |
|
- | |||||
| 10 | WB02X24728 | Injet, Small V2 |
|
- | |||||
| 11 | WB02X24727 | Injet, Medium V2 |
|
- | |||||
| 12 | WB18X24471 | Harness Switches |
|
- | |||||
| 13 | WB02X24726 | Injet, Large V2 |
|
- | |||||
| 14 | WB28X26613 | Manifold Pipe |
|
- | |||||
| 16 | WB02X24725 | Injet, Xl V2 |
|
- | |||||
| 18 | WB2K24 | Cover Valve |
|
- | |||||
| 20 | WB28X24766 | Orifice Holder Rf |
|
- | |||||
| 22 | WB28X24763 | Orifice Holder Lr |
|
- | |||||
| 23 | WB28X26621 | Orifice Holder Lf |
|
- | |||||
| 24 | WB28X24764 | Orifice Holder Rr |
|
- | |||||
| 26 | WS01F06053 | Burner Bake (Replaces: WB16X20463) |
|
$ 50.52 | |||||
| 27 | WB28X24773 | Tube Burner Supply |
|
- | |||||
| 28 | WB1K50 | Screw Mtg Igniter |
|
- | |||||
| 29 | WB28X23220 | Elbow 90 Asm |
|
- | |||||
| 30 | WB16K10086 | Burner Broil |
|
- | |||||
| 37 | WB34X24753 | Cover Ignitor |
|
- | |||||
| 50 | WB28X26625 | Orifice Spud |
|
- | |||||
| 51 | WS01F01338 | Orifice Spud Lp (Replaces: WB28K10834) |
|
Immediately | $ 3.97 | ||||
| 52 | WS01F01389 | Orifice-lp 89mm (Replaces: WB28K10023) |
|
$ 3.97 | |||||
| 53 | WS01F01390 | Orifice-lp Lg 99mm (Replaces: WB28K10032) |
|
$ 12.71 | |||||
| 55 | WS01F05939 | Valve Burner 270 (Replaces: WB21X20261) |
|
$ 57.25 | |||||
| 56 | WS01F05938 | Valve Burner 270 (Replaces: WB21X20260) |
|
Immediately | $ 22.53 | ||||
| 57 | WB21X20262 | Valve Burner 270 |
|
- | |||||
| 83 | WB28X26089 | Oven Orifice Spud |
|
- | |||||
| 146 | WB02X26569 | Clip Rangetop |
|
- | |||||
| 206 | WS01A01151 | Screw (Replaces: WB01K10091) |
|
Immediately | $ 12.71 | ||||
| 214 | WS01F06400 | Valve Control Asm Nor. D (Replaces: WB21X21506) |
|
$ 278.27 | |||||
| 217 | WB13X25261 | Igniter Glowbar |
|
- | |||||
| 218 | WB13K10026 | Igniter Glowbar |
|
- | |||||
| 219 | WB49K44 | Flame Spreader |
|
- | |||||
| 237 | WB28X24772 | Tube Manifold Supply |
|
- | |||||
| 270 | WB49K10025 | Deflector |
|
- | |||||
| 272 | WB34X20303 | Shield Broil |
|
- | |||||
| 294 | WB63K10040 | Cover Terminal |
|
- | |||||
| 707 | WB02K10267 | Clip Wire |
|
- | |||||
| 832 | WB01K10080 | Screw Thermostat |
|
- | |||||
| 900 | WB02K10297 | Bracket Valve |
|
- |
