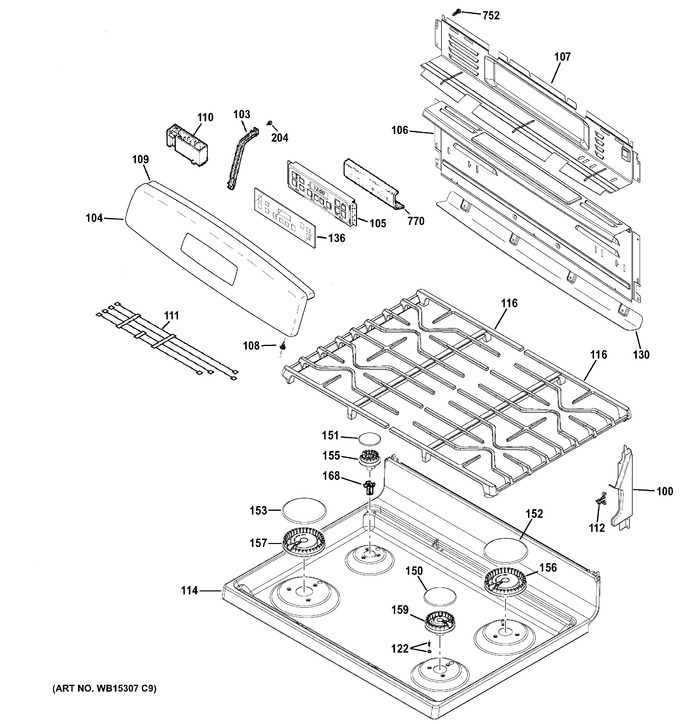

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
100	WB07X24815		End Support Rh		Appelez-nous	-
100	WB07X24816		End Support Lh		Appelez-nous	-
103	WB02X24845		Bracket Control		Appelez-nous	-
104	WB36X26045		Trim Control Asm		Appelez-nous	-
105	WB27K10453		Control Oven To9 (gas)		Appelez-nous	-
106	WB34X24851		Cover Back Upper		Appelez-nous	-
107	WB34X24746		Cover Back Lower		Appelez-nous	-
108	WS01A01150		Screw (cr)   (Replaces: WB1X5364)				$ 3.97
109	WB34X24960		Top Complement Backguard		Appelez-nous	-
110	WB13X24323		Ignition Module		Appelez-nous	-
111	WB18X26312		Electrodes & Harness H.v		Appelez-nous	-
112	WB14K10003		Hinge Range Top		Appelez-nous	-
114	WB62X26614		Rangetop & Brkt Asm		Appelez-nous	-
116	WB31X26620		Grate Asm		Appelez-nous	-
122	WB01X24735		Ckt Screw		Appelez-nous	-
130	WB34X25717		Backguard Eyebrow		Appelez-nous	-
136	WB07X25217		Overlay T09		Appelez-nous	-
150	WS01F02536		Asm Burner Cap (9500)   (Replaces: WB29K10023)			Immediately	$ 17.47
151	WB29X24720		Asm. Cap, Burner Small V		Appelez-nous	-
152	WS01F03894		Asm Burner Cap (12000)   (Replaces: WB29K10024)			Immediately	$ 23.82
153	WS01F02544		Cap Burner Asm (15k)   (Replaces: WB28K10222)			Immediately	$ 18.43
155	WB16X24721		Burner, Small V2		Appelez-nous	-
156	WB16X24723		Burner, Large V2		Appelez-nous	-
157	WB16X24722		Burner, Xl V2		Appelez-nous	-
159	WB16X24724		Burner, Medium V2		Appelez-nous	-
168	WB02X24976		Clip, Igniter V2		Appelez-nous	-
204	WS01A00654		Screw (blk)   (Replaces: WB1K42)				$ 15.88
752	WZ04X0345		Screw 8-18x5/8 Hxw		Appelez-nous	-
770	WB35K10040		Insulation Control		Appelez-nous	-
