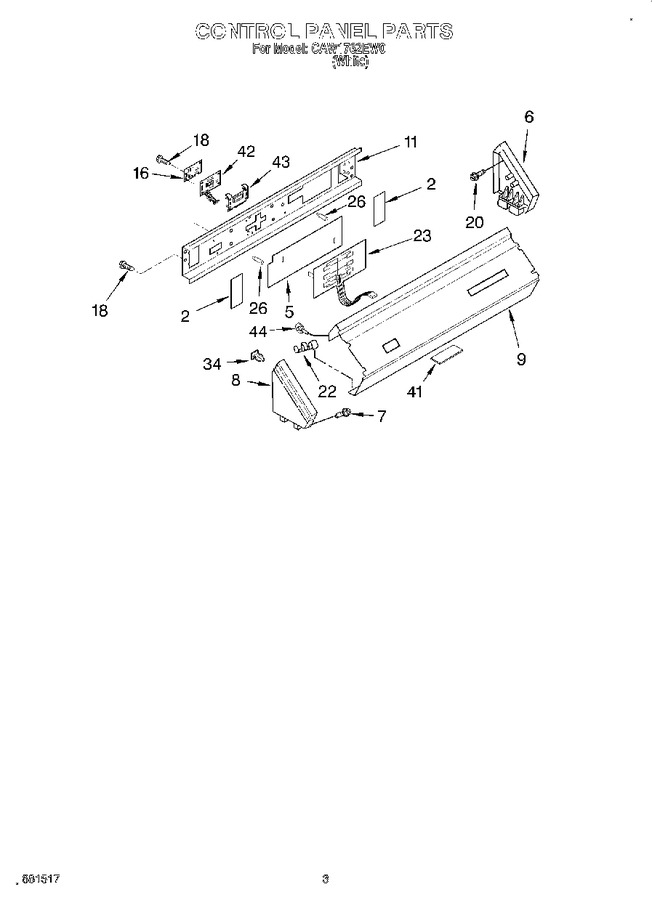

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	3950775		Backer Plate (side)		Appelez-nous	-
5	3950773		Backer Plate		Appelez-nous	-
6	3949737		Cap, End (r.h.)				$ 49.53
7	WP388326		Screw (2)   (Replaces: 388326)				$ 9.29
8	3949734		Cap, End (l.h.)		Appelez-nous	-
9	3950806		Panel, Control		Appelez-nous	-
11	3950800		Bracket, Control		Appelez-nous	-
16	3407136		Board, Control		Appelez-nous	-
18	WPW10366705		Screw & Washer   (Replaces: 3393909)				$ 7.88
20	WPW10109200		Screw, 11-16 X 3/4   (Replaces: 97787)			Immediately	$ 8.80
22	W10113937		Clip, Grounding   (Replaces: 357572)				$ 11.37
23	3951035		Switch, Membrane		Appelez-nous	-
26	3950774		Mounting Stud		Appelez-nous	-
34	689559		Nut, Push-in (2)		Appelez-nous	-
41	686770		Protector Support		Appelez-nous	-
42	3407139		Board, Display		Appelez-nous	-
43	3949599		Lens, Display		Appelez-nous	-
44	690236		Ground Wire		Appelez-nous	-
