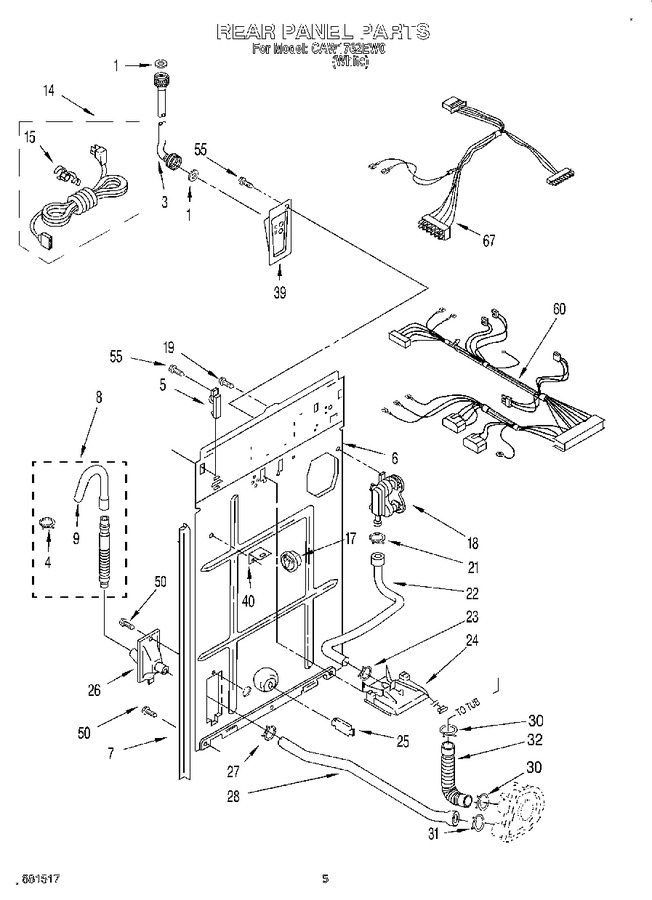

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP16123		Washer, Water Inlet Hose (4) (1-1/16 X 5/8)   (Replaces: 16123)				$ 8.16
3	WP89503		Hose, Water Inlet (2)   (Replaces: 3949370)			Immediately	$ 24.09
4	WP3357331		Clamp, Hose Drain   (Replaces: 3366913)				$ 8.19
5	387402		Hinge, Console (2)				$ 5.84
6	3360996		Panel, Rear		Appelez-nous	-
7	WP62747		Pad, Rear Panel   (Replaces: 3354204)				$ 27.57
8	285664		Hose, Drain (4 Ft.)   (Replaces: 3951609)			Immediately	$ 36.89
8	285666		Hose, Drain (9 Ft.) (not Included)   (Replaces: 661577)			Immediately	$ 62.34
9	WP3357027		Nozzle-drain Hose   (Replaces: 3357027)				$ 97.86
14	285928		Cord, Power   (Replaces: 3359548)				$ 137.67
15	W11733005		Strain Relief, Power Cord To Rear Panel   (Replaces: 63848)				$ 13.58
17	3348542		Switch, Water Level		Appelez-nous	-
18	285805		Valve, Water Mixing   (Replaces: 3360392)			Immediately	$ 55.08
19	WP3390631		Screw, 10-24 X 3/8 (2)   (Replaces: 62863)				$ 8.25
21	WP596669		Clamp, Hose   (Replaces: 370451)			Immediately	$ 8.82
22	3353815		Hose, Vacuum Break		Appelez-nous	-
23	WP596669		Clamp, Hose   (Replaces: 371503)			Immediately	$ 8.82
24	WP3347034		Break, Vacuum   (Replaces: 3347034)			Immediately	$ 75.28
25	WP8519200		Support, Rear Panel   (Replaces: 63290)			Immediately	$ 19.85
26	WPW10358149		Connector, Drain Hose   (Replaces: 3361809)			Immediately	$ 48.16
27	WP356138		Clamp, Hose   (Replaces: 3366912)			Immediately	$ 8.52
28	WP3348552		Hose, Pump To Drain Connector   (Replaces: 3359818)				$ 89.09
30	WP616099		Clamp, Hose   (Replaces: 371504)			Immediately	$ 8.58
31	WP285655		Clamp, Hose   (Replaces: 660628)			Immediately	$ 8.81
32	285871		Hose, Pump To Tub   (Replaces: 3950340)			Immediately	$ 28.99
39	3353777		Plate, Mixing Valve		Appelez-nous	-
40	3347824		Bracket, Top Lock		Appelez-nous	-
50	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 8.25
55	WP308685		Screw, Hinge To Rear Panel   (Replaces: 3357011)			Immediately	$ 7.87
60	3951040		Harness, Wiring (for Detail See Page 8.) Also See Clips.		Appelez-nous	-
67	3952299		Harness, Timer		Appelez-nous	-
