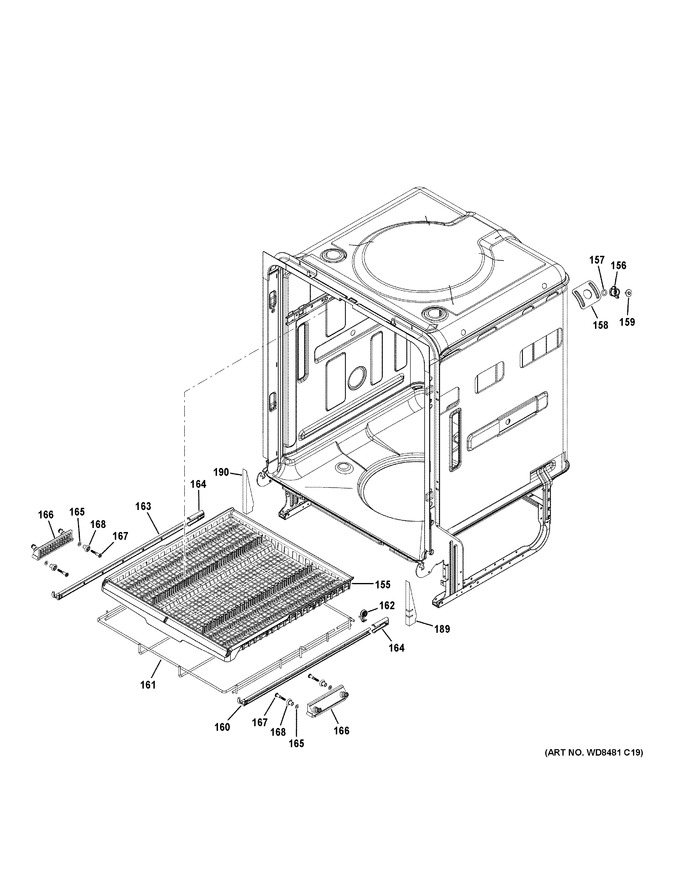

1 - Escutcheon & Door Assembly


2 - Body Parts (1)


3 - Body Parts (2)


4 - Upper Rack Assembly


5 - Lower Rack Assembly


6 - Sump & Filter Assembly


7 - Sump & Motor Mechanism


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
155	WD28X22348		Tray Third Rack		Appelez-nous	-
156	WD02X20685		Sleeve Tub Mount		Appelez-nous	-
157	WD08X22344		Gasket Tub Mount		Appelez-nous	-
158	WD30X22340		Brace Tub Mount		Appelez-nous	-
159	WG04A01231		Scr B-16 Hxw 1/2 Ss   (Replaces: WD02X10169)				$ 6.35
160	WD27X22350		Rail And End Cap Asm		Appelez-nous	-
161	WD30X22343		Frame Wire Coated Asm		Appelez-nous	-
162	WD30X22347		Roller And Bracket Asm		Appelez-nous	-
163	WD27X22351		Rail And End Cap Asm		Appelez-nous	-
164	WD02X22342		End Cap Third Rack Rear		Appelez-nous	-
165	WD3X767		Washer		Appelez-nous	-
166	WD30X22345		Mount Tub		Appelez-nous	-
167	WD02X22851		Stud Tub		Appelez-nous	-
168	WD02X22850		Roller Tub		Appelez-nous	-
189	WD01X22898		Offset Leg Shim Rh		Appelez-nous	-
190	WD01X22899		Offset Leg Shim Lh		Appelez-nous	-
