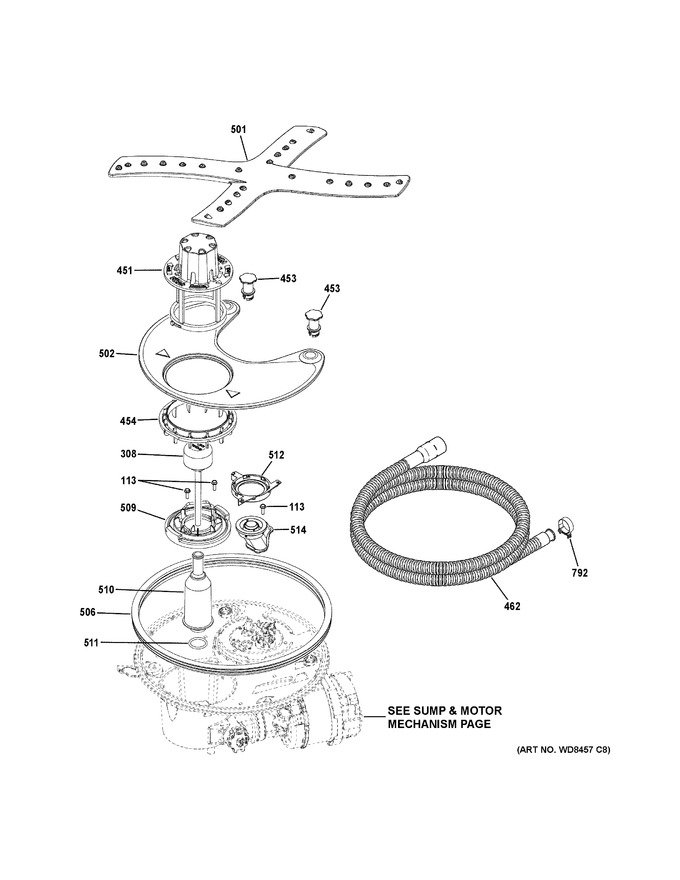

1 - Escutcheon & Door Assembly


2 - Body Parts (1)


3 - Body Parts (2)


4 - Upper Rack Assembly


5 - Lower Rack Assembly


6 - Sump & Filter Assembly


7 - Sump & Motor Mechanism


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
113	WG04A00176		Screw 8-16 Hxw 1/2 Ss   (Replaces: WD02X10067)				$ 3.97
308	WD21X22822		Float Flood		Appelez-nous	-
451	WD12X22560		Manual Clean Filter		Appelez-nous	-
453	WD24X10057		Vent Filter		Appelez-nous	-
454	WD12X10419		Adaptor Filter		Appelez-nous	-
462	WG04F04609		Drain Tube Asm   (Replaces: WD24X10062)			Immediately	$ 42.93
501	WD22X22879		Arm Spray Lower Asm		Appelez-nous	-
502	WD22X10093		Filter Coarse Ss		Appelez-nous	-
506	WD08X21320		Gasket Sump Manifold		Appelez-nous	-
509	WD12X21677		Plate Floor Manual		Appelez-nous	-
510	WD21X22838		Stem Flood		Appelez-nous	-
511	WD01X22825		O Ring		Appelez-nous	-
512	WD12X22852		Hub Spray Arm		Appelez-nous	-
514	WD18X22865		Adapter Conduit		Appelez-nous	-
792	WG04A00073		Clamp   (Replaces: WD01X10104)			Immediately	$ 12.71

    View Diagram in Separate Window       Print Part List
