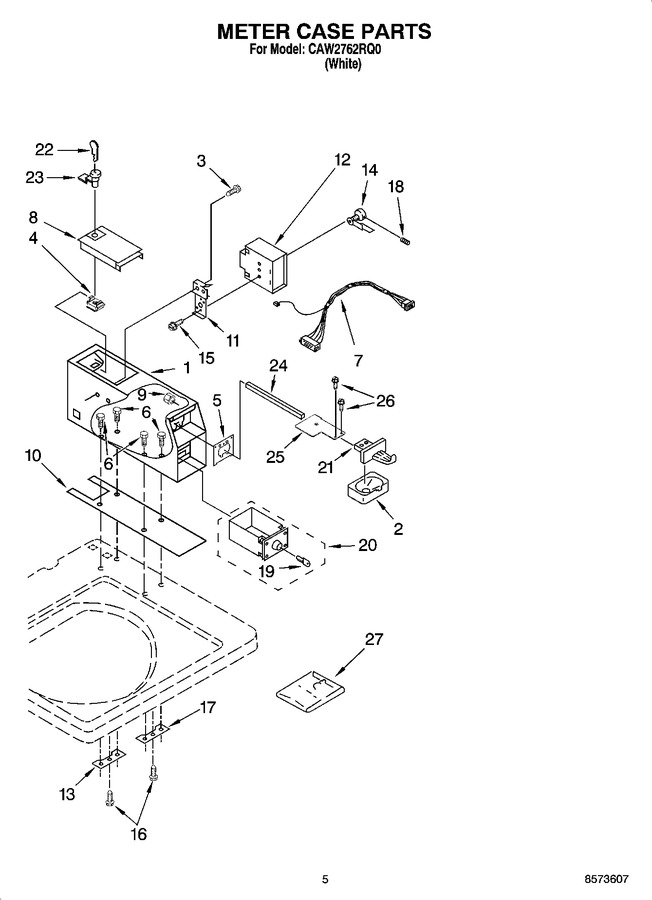

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10461200 | Meter Case (Replaces: 3406994) |
|
Immediately | $ 383.22 | ||||
| 2 | WP385421 | Coin Funnel (Replaces: 385421) |
|
Immediately | $ 74.20 | ||||
| 3 | 339805 | Screw, 10-32 X 3/16 |
|
$ 13.39 | |||||
| 4 | WP90406 | Nut, Cage (Replaces: 90406) |
|
$ 8.14 | |||||
| 6 | 3353994 | Bolt (5/16-18 X 2.5 (1)) |
|
- | |||||
| 6 | W11715721 | Bolt (5/16-24 X 1 (3)) (Replaces: 3349065) |
|
$ 7.12 | |||||
| 7 | 3955640 | Wire Harness, Timer |
|
$ 125.67 | |||||
| 8 | W11283272 | Door, Service (Replaces: 3351136) |
|
$ 105.88 | |||||
| 9 | WP3400029 | Nut, Adapter Plate (3) (Replaces: 3400029) |
|
Immediately | $ 7.76 | ||||
| 10 | WP3954812 | Cushion, Case (Replaces: 3954812) |
|
$ 31.10 | |||||
| 11 | 385575 | Bracket, Timer |
|
$ 94.31 | |||||
| 12 | WP8575004 | Timer, 60 Hz. (Replaces: 8575004) |
|
Immediately | $ 423.57 | ||||
| 13 | 3353813 | Plate, Mounting |
|
$ 47.08 | |||||
| 14 | 385571 | Clutch, Timer |
|
$ 42.89 | |||||
| 14 | WP354987 | E-ring (Replaces: 354987) |
|
Immediately | $ 11.75 | ||||
| 15 | WP3400064 | Screw, Timer (Replaces: 3400064) |
|
$ 6.95 | |||||
| 16 | W10841059 | Screw, 10-16 X 3/4 (Replaces: 98445) |
|
- | |||||
| 17 | 3347825 | Plate, Mounting |
|
- | |||||
| 18 | W10169313 | Switch- Do (Replaces: 33001508) |
|
Immediately | $ 32.42 | ||||
| 18 | 98654 | Screw, Set |
|
- | |||||
| 20 | W11190039 | Money Box (includes 19) (Replaces: 8316525) |
|
Immediately | $ 178.05 | ||||
| 21 | W11126319 | Coin Chute (Replaces: 8316520) |
|
Immediately | $ 310.89 | ||||
| 22 | 4396669 | Key, Service Door (Replaces: 358288) |
|
Immediately | $ 11.82 | ||||
| 23 | W11315637 | Security Lock & Cam Assembly (Replaces: 8316526) |
|
Immediately | $ 40.47 | ||||
| 24 | WP8576635 | Bolt, Coin Chute (Replaces: 8318517) |
|
Immediately | $ 74.59 | ||||
| 25 | W11318367 | Extension (Replaces: 8316522) |
|
Immediately | $ 42.44 | ||||
| 26 | 3400086 | Screw, 10-32 X 3/8 |
|
$ 12.77 | |||||
| 27 | 8316524 | Kit, Chute Decal |
|
- |
