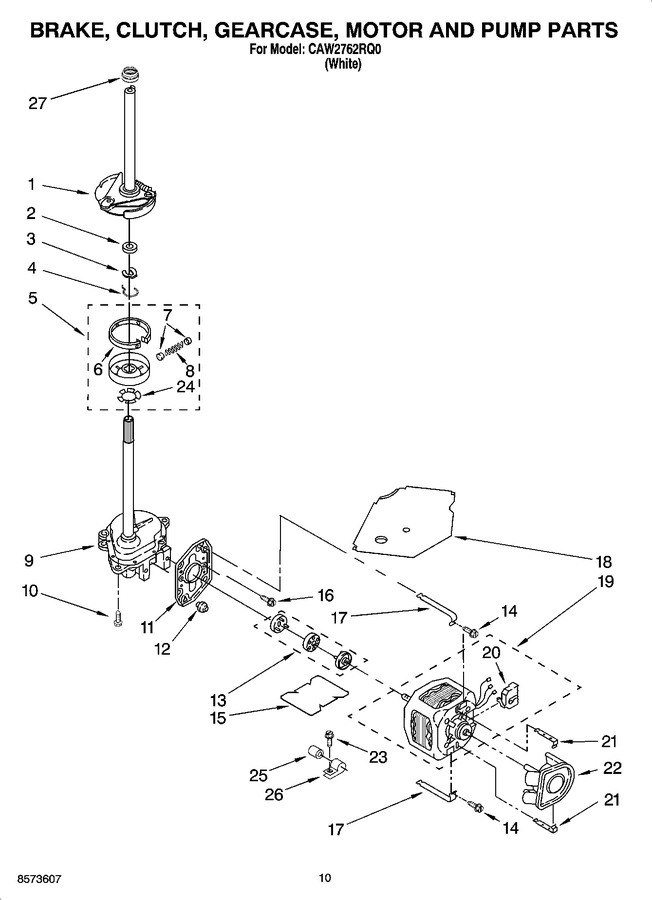

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10820043 | Brake & Drive Tube (complete) (refer To Page 14 For Further Breakdown) (Replaces: 388952) |
|
Immediately | $ 217.31 | ||||
| 2 | WP63292 | Washer, Spin Tube Thrust (Replaces: 63292) |
|
Immediately | $ 7.71 | ||||
| 3 | WPW10080230 | Ring, Spin Tube Support (Replaces: 62697) |
|
$ 12.02 | |||||
| 4 | 285353 | E-clip, Clutch Retainer (Replaces: 63283) |
|
$ 8.11 | |||||
| 5 | WP8299642 | Clutch (complete) (Replaces: 8299642) |
|
Immediately | $ 138.85 | ||||
| 6 | W10817888 | Band & Lining, Clutch (includes Illus. 7 & 8) (Replaces: 3951993) |
|
Immediately | $ 119.36 | ||||
| 7 | WP62646 | Cap, Clutch Spring (2) (Replaces: 62646) |
|
$ 7.55 | |||||
| 8 | WP8559387 | Spring, Clutch (Replaces: 8559387) |
|
$ 7.81 | |||||
| 9 | 3360629 | Gearcase(complete)(refer To Page 15 For Further Breakdown) (Replaces: 3360630) |
|
Immediately | $ 469.13 | ||||
| 10 | WP3400516 | Screw, Gearcase To Base (3) (Replaces: 3357334) |
|
Immediately | $ 7.19 | ||||
| 11 | WP62611 | Plate, Motor Mount To Gearcase (Replaces: 62611) |
|
$ 117.10 | |||||
| 12 | WP62691 | Grommet, Motor (4) (Replaces: 62691) |
|
$ 11.82 | |||||
| 13 | 285852A | Coupling, Motor And Isolation (Replaces: 285852) |
|
Immediately | $ 47.40 | ||||
| 14 | WP273556 | Screw (2) 10-16 X 5/8 (Replaces: 3387485) |
|
Immediately | $ 7.82 | ||||
| 15 | WP3946532 | Shield, Motor (Replaces: 3946532) |
|
$ 31.28 | |||||
| 16 | WP3400516 | Bolt, Motor Plate (Replaces: 3400516) |
|
Immediately | $ 7.19 | ||||
| 17 | WPW10086010 | Retainer, Motor (2) (Replaces: 3349637) |
|
$ 7.94 | |||||
| 18 | W10838408 | Shield, Tub To Motor (Replaces: 3362089) |
|
$ 37.43 | |||||
| 19 | WP661600 | Motor, Main Drive (Replaces: 661600) |
|
Immediately | $ 230.64 | ||||
| 20 | 62850 | Switch, Main Drive Motor |
|
- | |||||
| 21 | WP8546127 | Retainer, Pump (2) (Replaces: 8546127) |
|
$ 8.14 | |||||
| 22 | WP3363394 | Pump (complete) (Replaces: 3363394) |
|
Immediately | $ 61.66 | ||||
| 23 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 62863) |
|
$ 7.82 | |||||
| 24 | WP3355454 | Clip, Anti-rattle (Replaces: 3355454) |
|
$ 7.84 | |||||
| 25 | WP8572717 | Capacitor (Replaces: 661606) |
|
Immediately | $ 80.14 | ||||
| 26 | 357030 | Clamp, Capacitor |
|
$ 21.09 | |||||
| 27 | WP91939 | Seal, Shaft (Replaces: 91939) |
|
Immediately | $ 7.19 |
