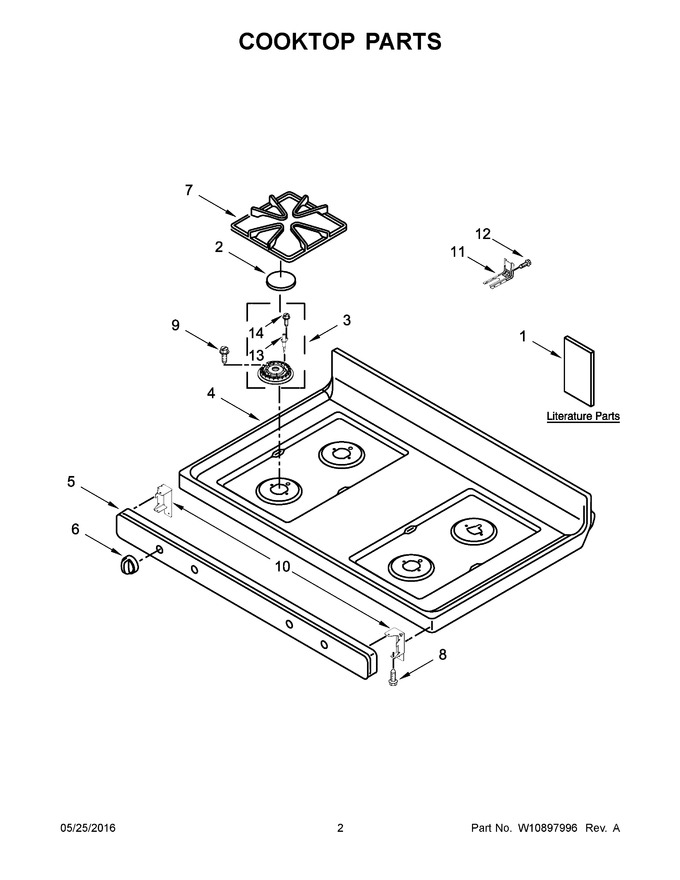

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10545337 | Instructions, Installation |
|
- | |||||
| 2 | WPW10170554 | Set, Burner Cap (black) (Replaces: W10170554) |
|
$ 140.26 | |||||
| 3 | WPW10515452 | Assembly, Burner (12k) (left Front) (Replaces: W10515452) |
|
$ 88.90 | |||||
| 4 | 8272253 | Cooktop (black) |
|
- | |||||
| 5 | 8523855 | Panel, Manifold (black) |
|
$ 176.18 | |||||
| 6 | WP8273103 | Knob, Control (black) (Replaces: 8273103) |
|
Immediately | $ 16.85 | ||||
| 7 | WPW10268483 | Kit, Grate (black) (Replaces: 8053580) |
|
$ 140.02 | |||||
| 8 | WP3368921 | Screw (Replaces: 3400701) |
|
Immediately | $ 8.56 | ||||
| 9 | WP3196557 | Screw (Replaces: 3196557) |
|
Immediately | $ 7.95 | ||||
| 10 | 8523249 | Bracket, Manifold |
|
- | |||||
| 11 | W11839019 | Bracket, Anti-tip (Replaces: W10306542) |
|
Immediately | $ 28.54 | ||||
| 12 | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 30.72 | |||||
| 13 | WPW10515459 | Electrode (Replaces: W10515459) |
|
Immediately | $ 43.77 | ||||
| 14 | WP8273062 | Screw (Replaces: 8273062) |
|
Immediately | $ 7.91 | ||||
| 1A | W10572542 | Guide, Use & Care |
|
- | |||||
| 1B | W10538793 | Sheet, Tech (english) |
|
- | |||||
| 1C | W10538794 | Sheet, Tech (french) |
|
- | |||||
| 1D | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1E | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 2A | WPW10165809 | Set, Burner Cap (wetstone) (Replaces: W10165809) |
|
$ 138.32 | |||||
| 3A | WPW10515454 | Assembly, Burner (9.5k) (right Front And Left Rear) (Replaces: W10515454) |
|
$ 115.74 | |||||
| 3B | WPW10515453 | Assembly, Burner (6k) (right Rear) (Replaces: W10515453) |
|
$ 99.29 | |||||
| 4A | 8272251 | Cooktop (white) |
|
- | |||||
| 5A | WP8523854 | Panel, Manifold (white) (Replaces: 8523854) |
|
$ 290.58 | |||||
| 6A | WP8273104 | Knob, Control (white) (Replaces: 8273104) |
|
Immediately | $ 17.99 | ||||
| 7A | W10683630 | Kit, Grate (wetstone) |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10797422 | Harness, Main |
|
- | |||||
| NI | W11161843 | Harness, Bake/broil (Replaces: W10753750) |
|
$ 216.55 | |||||
| NI | W10809927 | Harness, Cooktop |
|
$ 160.90 | |||||
| NI | W10519920 | Harness, Dsi Ground |
|
$ 21.06 | |||||
| NI | 3196896 | Clip, Wire |
|
- | |||||
| NI | 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 89.00 | |||||
| NI | W10334923 | Clip, Wire |
|
- | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 | |||||
| NI | W11244557 | Screw (Replaces: 3196173) |
|
$ 14.29 | |||||
| NI | 3196696 | Clip, Harness |
|
- | |||||
| NI | WP3196174 | Screw (Replaces: 3196174) |
|
Immediately | $ 8.44 | ||||
| NI | WPW10182767 | Tie, Cable (Replaces: W10182767) |
|
$ 7.30 |
