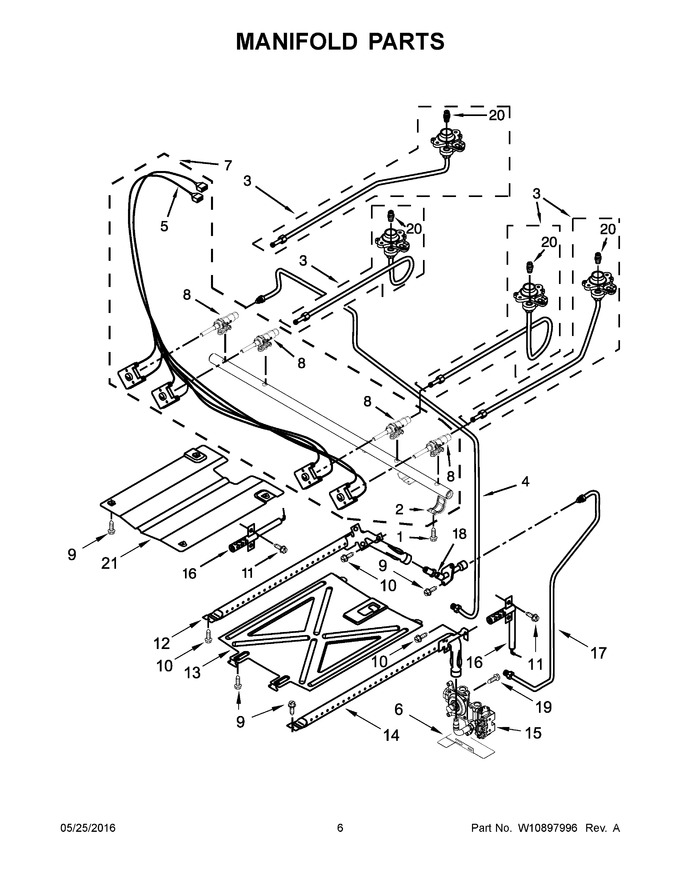

04 - Manifold Parts


05 - Chassis Parts


06 - Drawer And Broiler Parts


07 - Door Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10295997		Screw, Valve				$ 7.32
2	W10949105		Bracket, Saddle Valve   (Replaces: W10295996)				$ 22.75
3	W10474154		Assembly, Orifice Holder (12k) (left Front)				$ 82.51
4	W11680399		Tubing (manifold To Regulator)   (Replaces: W10215439)				$ 159.35
5	W11256561		Harness, Switch   (Replaces: W10812380)				$ 190.30
6	W10224921		Bracket, Aegis		Appelez-nous	-
7	W10812381		Assembly, Manifold		Appelez-nous	-
8	WPW10279614		Valve, Gas (left Front, Right Front & Left Rear)   (Replaces: W10279614)				$ 279.81
9	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
10	3196265		Screw		Appelez-nous	-
11	W11684507		Screw   (Replaces: 3196385)				$ 14.27
12	WP8054078		Burner, Broiler   (Replaces: 8054078)			Immediately	$ 239.36
13	WPW10184491		Spreader, Flame (oven)   (Replaces: W10184491)				$ 253.52
14	WP9758078		Burner, Bake   (Replaces: 9758078)				$ 226.07
15	WPW10602001		Regulator   (Replaces: W10602001)			Immediately	$ 340.97
16	WP8054129		Ignitor (electrode, Broil)   (Replaces: 8054129)			Immediately	$ 137.14
17	W10420040		Tube, Broiler Supply				$ 194.54
18	W10592836		Fitting, Broiler				$ 108.26
19	WP3400016		Screw   (Replaces: 3400016)				$ 8.39
20	WPW10170508		Orifice (9.5k) (right Front And Left Rear)   (Replaces: W10170508)				$ 95.21
21	W10137062		Spreader, Flame (broiler)		Appelez-nous	-
16A	WP9758079		Ignitor (electrode, Bake)   (Replaces: 9758079)			Immediately	$ 41.01
20A	W10178934		Orifice (12k) (left Front)			Immediately	$ 103.60
20B	WPW10170506		Orifice (5k) (right Rear)   (Replaces: W10170506)				$ 97.85
3A	W10473929		Assembly, Orifice Holder (9.5k) (left Rear)				$ 83.40
3B	W10474169		Assembly, Orifice Holder (9.5k) (right Front)		Appelez-nous	-
3C	W10474163		Assembly, Orifice Holder (6k) (right Rear)				$ 82.87
8A	WPW10247744		Valve, Gas (right Rear)   (Replaces: W10247744)				$ 280.12
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	WPW10170531		Spuds, Lp Gas   (Replaces: W10170531)				$ 107.14
NI	W11126051		Kit, Lp Bake And Broil   (Replaces: W10566537)				$ 129.04
