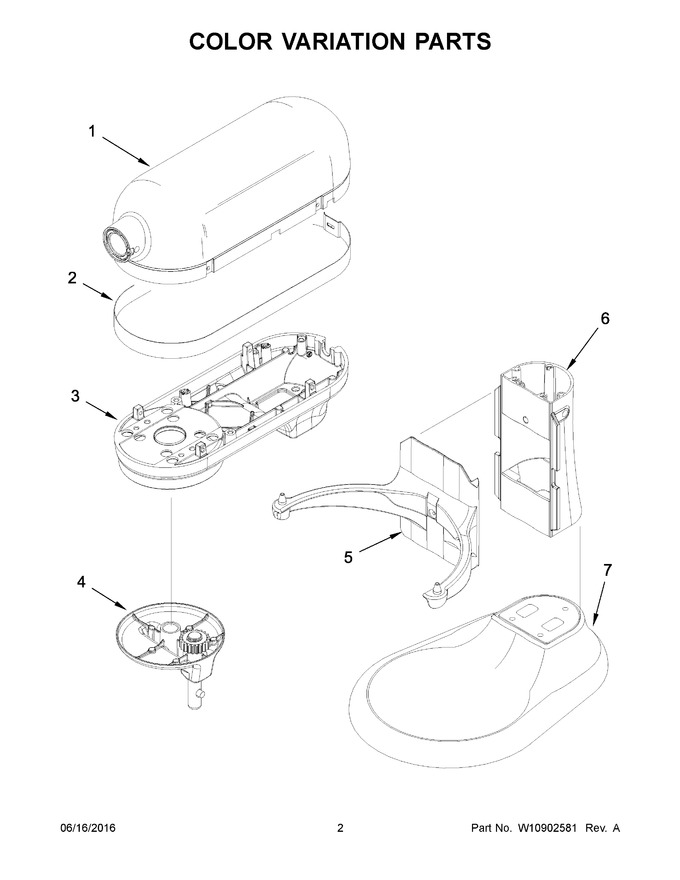

02 - Color Variation Parts


03 - Case, Gearing And Planetary Unit Parts


04 - Base And Pedestal Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10403016		Motor Housing (candy Apple)   (Replaces: W10403016)				$ 65.02
2	W10475035		Trim Band (dark Platinum (china))		Appelez-nous	-
3	W10403006		Lower Gearcase (candy Apple)   (Replaces: W10403004)				$ 65.91
4	WPW10403008		Planetary (candy Apple)   (Replaces: W10403008)				$ 64.97
5	WPW10402998		Bowl Support And Pins (candy Apple)   (Replaces: W10402998)				$ 98.26
6	WPW10450997		Column And Pins (candy Apple)   (Replaces: W10450997)				$ 103.25
7	WPW10402986		Base And Foot Assembly (candy Apple)   (Replaces: W10402986)				$ 111.33
