01 - Cover Sheet
02 - Color Variation Parts

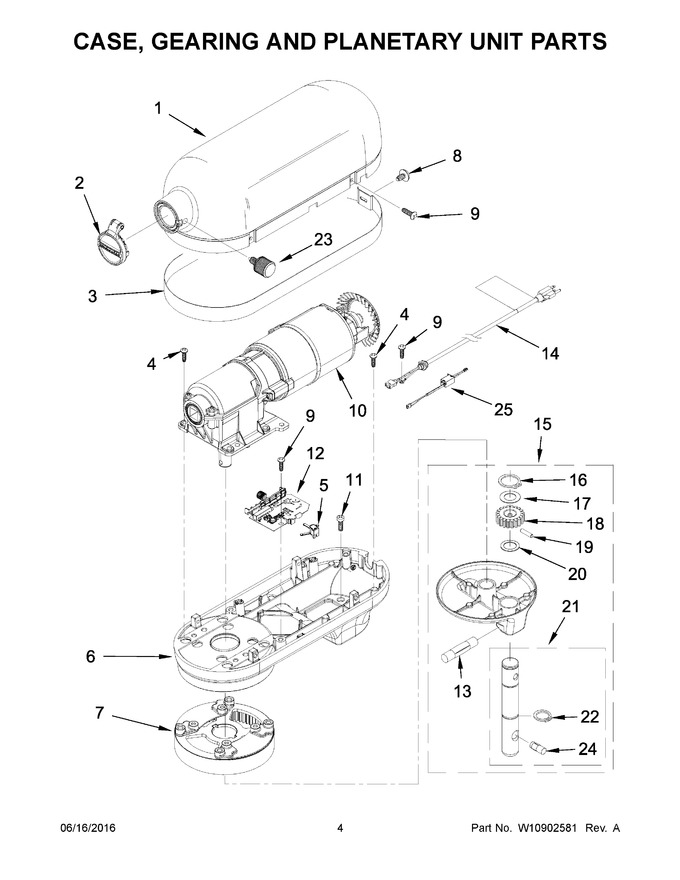

03 - Case, Gearing And Planetary Unit Parts
04 - Base And Pedestal Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Gearcase Motor Housing (refer To Color Variation Parts Page) |
|
- | |||||
| 2 | W11123129 | Cap, Attachment Hub, Hinged (Replaces: W10394928) |
|
$ 19.69 | |||||
| 3 | N/P | Band, Trim (refer To Color Variation Parts Page) |
|
- | |||||
| 4 | W10914506 | Screw (Replaces: W10351843) |
|
$ 4.59 | |||||
| 5 | WPW10305968 | Holder, Control (Replaces: W10305968) |
|
$ 4.33 | |||||
| 6 | N/P | Lower Gearcase (refer To Color Variation Parts Page) |
|
- | |||||
| 7 | W10234493 | Gear, Ring And Plate Assembly |
|
$ 8.95 | |||||
| 8 | WP3196170 | Screw (Replaces: 3400617) |
|
$ 7.55 | |||||
| 9 | WP3400814 | Screw (Replaces: 3400814) |
|
$ 4.62 | |||||
| 10 | WPW10517943 | Motor (230 Volt) (Replaces: W10517943) |
|
$ 208.57 | |||||
| 11 | W10913677 | Screw (Replaces: 3400200) |
|
$ 4.64 | |||||
| 12 | W11188060 | Control Assembly (230 Volt) (Replaces: W10487699) |
|
$ 129.53 | |||||
| 13 | WPW10234531 | Pin, Groove (Replaces: W10234531) |
|
Immediately | $ 5.29 | ||||
| 14 | W10523143 | Cord, Power (black 5ksm7586pzca0) |
|
- | |||||
| 15 | N/P | Planetary Assembly (refer To Color Variation Parts Page) |
|
- | |||||
| 16 | WP9703438 | Ring, Retaining (Replaces: 9703438) |
|
Immediately | $ 4.60 | ||||
| 17 | WP9706090 | Washer (Replaces: 9706090) |
|
$ 5.04 | |||||
| 18 | WPW10234643 | Gear, Pinion (Replaces: W10234643) |
|
$ 5.61 | |||||
| 19 | WP9707223 | Pin, Retaining (Replaces: 9707223) |
|
Immediately | $ 5.08 | ||||
| 20 | W10854966 | Washer (Replaces: 8533910) |
|
$ 4.94 | |||||
| 21 | WP9708191 | Shaft, Agitator (Replaces: 9708191) |
|
Immediately | $ 17.84 | ||||
| 22 | WP9703680 | Clip, Retaining (Replaces: 9703680) |
|
Immediately | $ 4.99 | ||||
| 23 | W10512907 | Thumb Screw (chrome) |
|
$ 49.11 | |||||
| 24 | W11664709 | Pin, Groove (Replaces: 9704677) |
|
Immediately | $ 6.75 | ||||
| 25 | W10703125 | Rfi Filter 5ksm7586pzca0 |
|
- | |||||
| 10A | W11246392 | Motor (100 Volt) (Replaces: W10517933) |
|
- | |||||
| 12A | W10903568 | Control Assembly (120 Volt) (Replaces: W10863024) |
|
- | |||||
| 14A | W10863019 | Cord, Power (black 7ksm7586pzca0) |
|
- | |||||
| 25A | W11319634 | Rfi Filter 7ksm7586pzca0 (Replaces: W10544972) |
|
- |
