View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Top And Console Parts

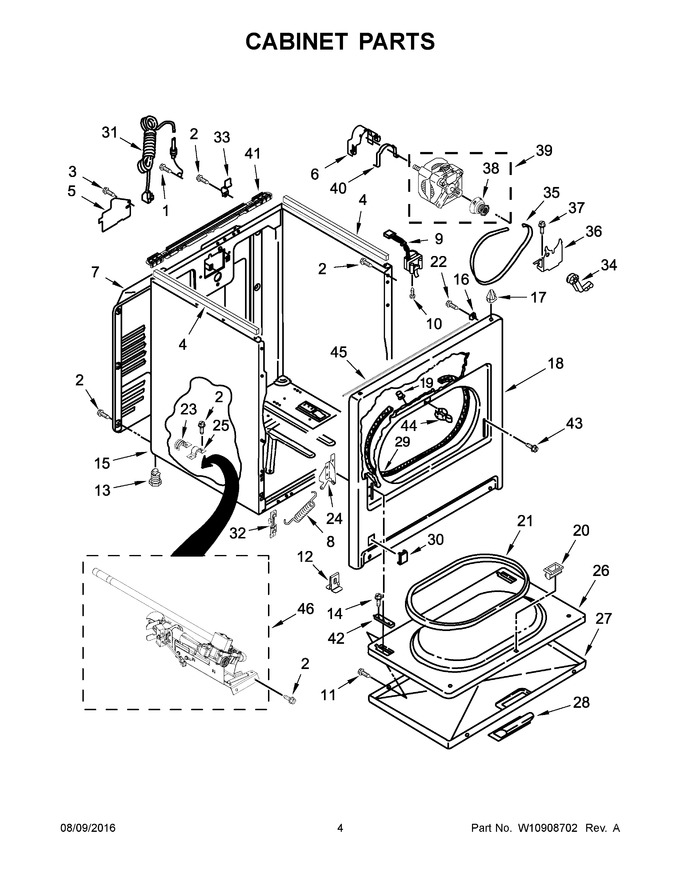

03 - Cabinet Parts
04 - Bulkhead Parts
05 - Burner Assembly Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10850756 | Screw (Replaces: W10773242) |
|
$ 8.20 | |||||
| 2 | WP3390631 | Screw (Replaces: 3390631) |
|
$ 8.25 | |||||
| 3 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 4 | WPW10157932 | Seal, Foam (Replaces: W10316529) |
|
Immediately | $ 8.45 | ||||
| 5 | W11539855 | Cover, Terminal Block (Replaces: 3396795) |
|
Immediately | $ 629.75 | ||||
| 6 | WP3404162 | Clamp, Motor (with Shield) (Replaces: 3404162) |
|
Immediately | $ 8.21 | ||||
| 7 | 280043 | Panel, Rear (Replaces: W10571724) |
|
$ 358.37 | |||||
| 8 | WPW10041960 | Spring, Door (Replaces: W10041960) |
|
Immediately | $ 42.70 | ||||
| 9 | WPW10237959 | Switch, Door (Replaces: W10237959) |
|
Immediately | $ 55.64 | ||||
| 10 | WP3395530 | Screw (Replaces: 697773) |
|
$ 8.57 | |||||
| 11 | WP488627 | Screw (Replaces: 342055) |
|
$ 8.11 | |||||
| 12 | W10575896 | Clip, Spring |
|
$ 15.15 | |||||
| 13 | W10813918 | Foot, Dryer (Replaces: W10754507) |
|
Immediately | $ 13.70 | ||||
| 14 | WP308685 | Screw (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 15 | 8533643 | Cabinet (white) (Replaces: 8530603) |
|
$ 419.22 | |||||
| 16 | WP98234 | Clip, Ground (Replaces: 98234) |
|
Immediately | $ 11.96 | ||||
| 17 | WP8066092 | Lock, Front Top (Replaces: 8066092) |
|
Immediately | $ 20.48 | ||||
| 18 | 279740 | Panel, Front (white) (Replaces: W10664692) |
|
$ 380.07 | |||||
| 19 | 279220 | Clip, Felt Pad (Replaces: 685203) |
|
$ 23.55 | |||||
| 20 | WP3389441 | Assembly, Door Catch (Replaces: 3389441) |
|
$ 6.20 | |||||
| 21 | W10906683 | Seal, Door (Replaces: W10823580) |
|
$ 134.96 | |||||
| 22 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 23 | 341029 | Clamp, Pipe |
|
- | |||||
| 24 | WP8066056 | Hinge, Door (right) (Replaces: 8066056) |
|
Immediately | $ 103.36 | ||||
| 25 | W10727507 | Clamp, Pipe |
|
- | |||||
| 26 | WP695737 | Door, Rear (Replaces: 695737) |
|
$ 267.29 | |||||
| 27 | W10861223 | Door, Outer (white) (Replaces: W10714515) |
|
$ 233.28 | |||||
| 28 | W10861225 | Handle, Door (white) (Replaces: W10714516) |
|
Immediately | $ 54.26 | ||||
| 29 | W11035878 | Assembly, Seal And Bearing (Replaces: W10803476) |
|
Immediately | $ 78.78 | ||||
| 30 | W10811916 | Plug, Hinge Hole (white) (Replaces: 8564457) |
|
$ 16.50 | |||||
| 31 | W11222083 | Cord, Power (Replaces: 344020) |
|
$ 126.62 | |||||
| 32 | W10854425 | Clip, Front Panel (Replaces: W10775448) |
|
Immediately | $ 16.34 | ||||
| 33 | W11715722 | Hinge, Top (Replaces: W10641296) |
|
$ 8.19 | |||||
| 34 | WP691366 | Idler Assembly (Replaces: 691366) |
|
Immediately | $ 22.47 | ||||
| 35 | 341241 | Belt, Drive (Replaces: W10131364) |
|
Immediately | $ 18.15 | ||||
| 36 | WP348780 | Base, Motor (Replaces: 348780) |
|
Immediately | $ 127.65 | ||||
| 37 | 3400500 | Bolt |
|
Immediately | $ 14.04 | ||||
| 38 | WP8066184 | Pulley, Motor (Replaces: 8066184) |
|
Immediately | $ 51.02 | ||||
| 39 | 279827 | Assembly, Motor (Replaces: W10396029) |
|
Immediately | $ 191.95 | ||||
| 40 | WPW10121316 | Clamp, Motor Mount (Replaces: W10121316) |
|
Immediately | $ 26.96 | ||||
| 41 | W10641295 | Bracket, Rear |
|
$ 41.90 | |||||
| 42 | W11252547 | Clip, Hinge (Replaces: 337189) |
|
$ 22.46 | |||||
| 43 | 342043 | Screw |
|
- | |||||
| 44 | 279570 | Strike, Door (Replaces: 696144) |
|
Immediately | $ 8.89 | ||||
| 45 | W11596046 | Seal, Spill Guard (Replaces: W10841728) |
|
Immediately | $ 54.09 | ||||
| 46 | W10823508 | Burner Assembly (60 Hz) (type 1 And 2) (Replaces: W10336852) |
|
$ 541.24 | |||||
| 24A | WP8066057 | Hinge, Door (left) (Replaces: 8066057) |
|
$ 100.95 |
