SELECT A DIAGRAM
01 - Cover Sheet
02 - Top And Console Parts
03 - Cabinet Parts

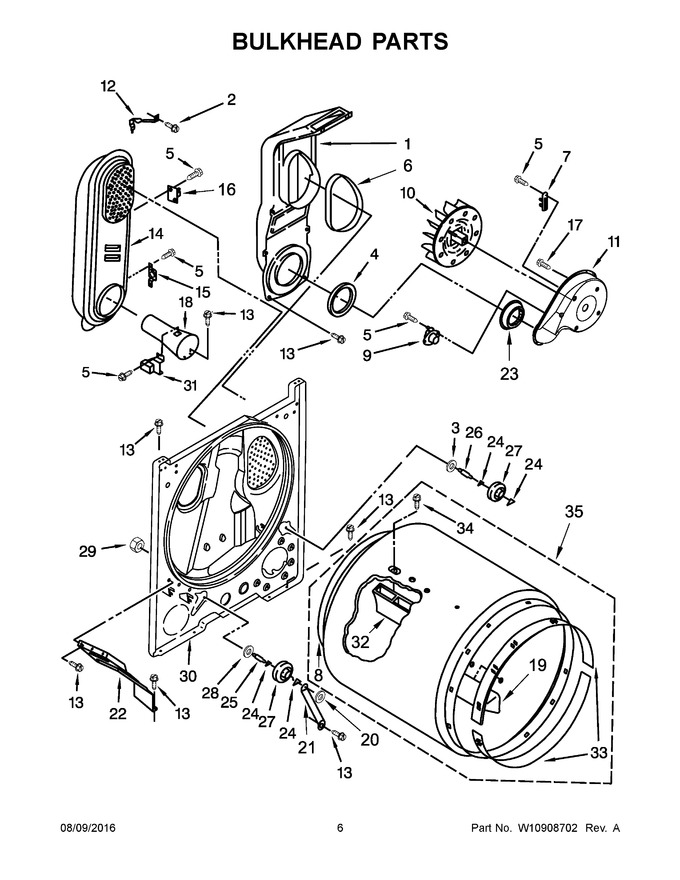

04 - Bulkhead Parts
05 - Burner Assembly Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11117429 | Assembly, Lint Chute (Replaces: 348368) |
|
$ 183.76 | |||||
| 2 | WP489463 | Screw (Replaces: 489463) |
|
$ 8.25 | |||||
| 3 | WP3388703 | Washer (Replaces: 3388703) |
|
$ 7.85 | |||||
| 4 | W11415783 | Seal, Lint Chute (Replaces: 347139) |
|
Immediately | $ 19.14 | ||||
| 5 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 6 | WP339956 | Seal (Replaces: 339956) |
|
Immediately | $ 9.06 | ||||
| 7 | WP3392519 | Fuse, Thermal (91c) (Replaces: 3392519) |
|
Immediately | $ 24.95 | ||||
| 8 | W10612022 | Seal, Rear Drum (Replaces: W10856781) |
|
Immediately | $ 57.15 | ||||
| 9 | WP3387134 | Thermostat (Replaces: 3387134) |
|
Immediately | $ 35.90 | ||||
| 10 | WP694089 | Wheel, Blower (Replaces: 694089) |
|
Immediately | $ 37.66 | ||||
| 11 | WP8577230 | Housing, Blower (Replaces: 8577230) |
|
$ 186.85 | |||||
| 12 | 279771 | Clip, Heater Box (Replaces: 3398161) |
|
$ 15.05 | |||||
| 13 | WP3390631 | Screw (Replaces: 3390631) |
|
$ 8.25 | |||||
| 14 | 279980 | Box, Heater (96c) (Replaces: 8530285) |
|
$ 331.29 | |||||
| 15 | W11050897 | Thermostat, High Limit Spst (180f) (Replaces: W10423382) |
|
Immediately | $ 15.30 | ||||
| 16 | W11050897 | Kit, Thermal Cut-off (includes Thermostat) (Replaces: W10480709) |
|
Immediately | $ 15.30 | ||||
| 17 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 18 | WP8066049 | Funnel, Burner Light (Replaces: 8066049) |
|
$ 156.50 | |||||
| 19 | WP3403636 | Baffle, Drum (short) (Replaces: 3403636) |
|
$ 145.59 | |||||
| 20 | WP90296 | Nut, Push On (Replaces: 90296) |
|
$ 8.24 | |||||
| 21 | W11684613 | Bracket, Support (Replaces: 3976434) |
|
$ 21.99 | |||||
| 22 | W11398682 | Bracket, Bulkhead Chute (Replaces: 3406022) |
|
$ 58.88 | |||||
| 23 | W11233063 | Shield, Exhaust (Replaces: W10389567) |
|
$ 23.40 | |||||
| 24 | WPW10512946 | Washer, Tri Ring (Replaces: W10512946) |
|
Immediately | $ 8.80 | ||||
| 25 | WPW10359270 | Shaft, Drum Roller - Left Hand Thread (Replaces: W10359270) |
|
Immediately | $ 72.71 | ||||
| 26 | WPW10359269 | Shaft, Drum Roller - Right Hand Thread (Replaces: W10359269) |
|
Immediately | $ 47.30 | ||||
| 27 | 349241T | Roller, Support (Replaces: 3397590) |
|
Immediately | $ 29.53 | ||||
| 28 | WP348197 | Washer (Replaces: 348197) |
|
$ 7.55 | |||||
| 29 | W11229607 | Nut, Hex (Replaces: W10298789) |
|
Immediately | $ 8.64 | ||||
| 30 | W11178668 | Bulkhead (Replaces: 3403410) |
|
$ 299.30 | |||||
| 31 | WP338906 | Sensor, Radiant (Replaces: 338906) |
|
Immediately | $ 51.91 | ||||
| 32 | WP692490 | Baffle, Drum (long) (Replaces: 692490) |
|
$ 167.23 | |||||
| 33 | 279441 | Bearing, Ring (Replaces: 692526) |
|
Immediately | $ 66.22 | ||||
| 34 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 8.18 | ||||
| 35 | W10899578 | Assembly, Drum (complete) (Replaces: W10757750) |
|
$ 375.53 |
