01 - Cover Sheet

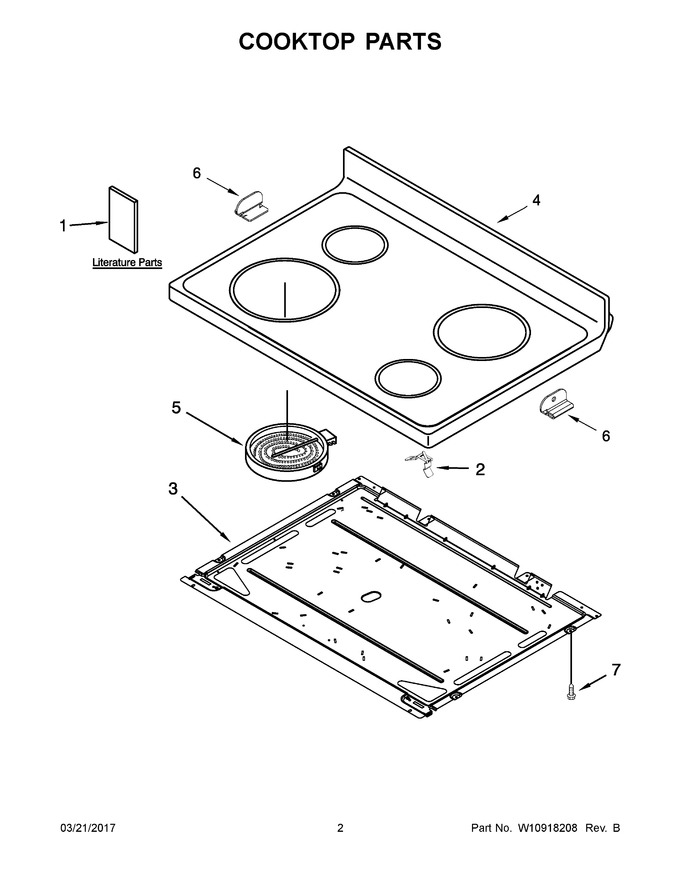

02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Drawer And Broiler Parts


06 - Door Parts


07 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10403811		Instructions, Installation		Appelez-nous	-
2	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 10.40
3	W11728329		Pan, Radiant Element   (Replaces: W10691223)			Immediately	$ 143.49
4	W10245805		Cooktop (black)   (Replaces: W10380657)				$ 553.83
5	W11517959		Element (3000/1400w) (left Front)   (Replaces: W10275048)			Immediately	$ 134.44
6	W10607641		Bracket, Cooktop (left)				$ 33.52
7	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
1A	W10866295		Owners Manual		Appelez-nous	-
1B	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1C	W10873896		Tech Sheet		Appelez-nous	-
1D	W10873900		Diagram, Wiring		Appelez-nous	-
5A	W11047722		Element (2500w) (right Front)   (Replaces: 8273992)			Immediately	$ 132.46
5B	W11171119		Element (1200w) (left Rear & Right Rear)   (Replaces: 8273994)			Immediately	$ 182.23
6A	W10607642		Bracket, Cooktop (right)		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11134674		Harness, Main   (Replaces: W10842521)		Appelez-nous	-
NI	W10842604		Harness, Cooktop (right)				$ 205.24
NI	W10842605		Harness, Cooktop (left)				$ 205.50
