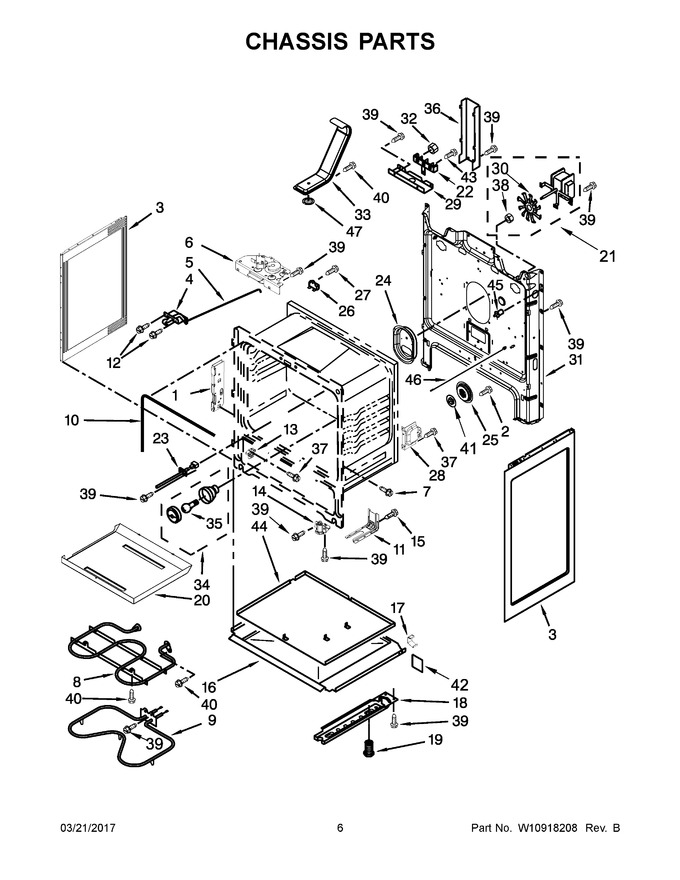

04 - Chassis Parts


05 - Drawer And Broiler Parts


06 - Door Parts


07 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10647259		Receiver, Hinge   (Replaces: W10289077)			Immediately	$ 8.39
2	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.80
3	W11730303		Panel, Side (black)   (Replaces: W10162245)			Immediately	$ 160.65
4	WP9761013		Assembly, Door Latch (front)   (Replaces: 9761013)				$ 230.72
5	W10078380		Rod, Latch				$ 85.42
6	WPW10107820		Assembly, Door Latch (rear)   (Replaces: W10107820)				$ 278.60
7	WPW10067840		Screw   (Replaces: W10067840)				$ 7.47
8	W10856603		Element, Broil   (Replaces: 9757340)			Immediately	$ 172.30
9	WP9755770		Element, Bake   (Replaces: 9755770)			Immediately	$ 174.47
10	W11542153		Seal, Door   (Replaces: W10658354)			Immediately	$ 45.18
11	W11839019		Bracket, Anti-tip   (Replaces: W10306542)			Immediately	$ 25.69
12	W11169708		Screw   (Replaces: 3196560)				$ 13.36
13	W10807823		Glide, Drawer Front   (Replaces: W10674705)			Immediately	$ 17.37
14	WPW10341186		Assembly, Front Foot   (Replaces: W10341186)			Immediately	$ 29.33
15	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 27.65
16	W10134121		Tray, Insulation				$ 40.28
17	W10137382		Clip, Panel			Immediately	$ 43.58
18	W11818353		Assembly, Base Rail (left)   (Replaces: W10390008)				$ 56.39
19	WPW10058460		Foot, Leveling   (Replaces: W10058460)			Immediately	$ 7.42
20	W10183712		Tray, Hidden Bake				$ 219.56
21	W11582241		Fan, Convection   (Replaces: W10167917)			Immediately	$ 121.26
22	WPW10245259		Block, Terminal   (Replaces: W10245259)			Immediately	$ 31.65
23	WPW10181986		Sensor, Oven   (Replaces: W10181986)			Immediately	$ 96.15
24	W10134126		Bracket, Fan				$ 21.58
25	WPW10134124		Cover, Conv Fan   (Replaces: W10134124)			Immediately	$ 92.33
26	WP3196548		Fuse, Thermal   (Replaces: 3196548)			Immediately	$ 45.09
27	3196172		Screw			Immediately	$ 12.12
28	W10404688		Clip, Oven Support				$ 15.92
29	W11763591		Bracket, Service   (Replaces: 3186034)		Appelez-nous	-
30	W10758272		Blade, Fan   (Replaces: W10116351)			Immediately	$ 7.12
31	W10273169		Back, Main		Appelez-nous	-
32	WP3400029		Nut   (Replaces: 3400029)			Immediately	$ 7.37
33	WPW10134285		Tube, Vent   (Replaces: W10134285)			Immediately	$ 236.70
34	W11594027		Assembly, Light   (Replaces: W10454648)			Immediately	$ 78.31
35	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 16.80
36	WPW10326122		Cover, Terminal Block   (Replaces: W10326122)				$ 125.64
37	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 6.80
38	W11548755		Nut   (Replaces: W10213748)				$ 13.84
39	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 13.25
40	WP3196174		Screw   (Replaces: 3196174)			Immediately	$ 7.60
41	WP3400968		Nut   (Replaces: 3400968)			Immediately	$ 7.52
42	W10646923		Card, Insulator				$ 17.61
43	WP3400016		Screw   (Replaces: 3400016)				$ 7.55
44	W10134125		Shield, Heat				$ 143.43
45	WP9757262		Switch, Door   (Replaces: W10627802)			Immediately	$ 146.71
46	9757239		Rod, Door Switch				$ 86.73
47	9761301		Screen, Vent				$ 133.11
18A	W11818353		Assembly, Base Rail (right)   (Replaces: W10390007)				$ 56.39
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11161831		Insulation, Wrap   (Replaces: W10774939)			Immediately	$ 104.77
NI	W10326347		Insulation, Back		Appelez-nous	-
NI	W11684918		Insulation, Flue   (Replaces: W10333344)			Immediately	$ 31.93
NI	WPW10281322		Kit, Bare Wire Adapter Block   (Replaces: W10281322)				$ 7.98
