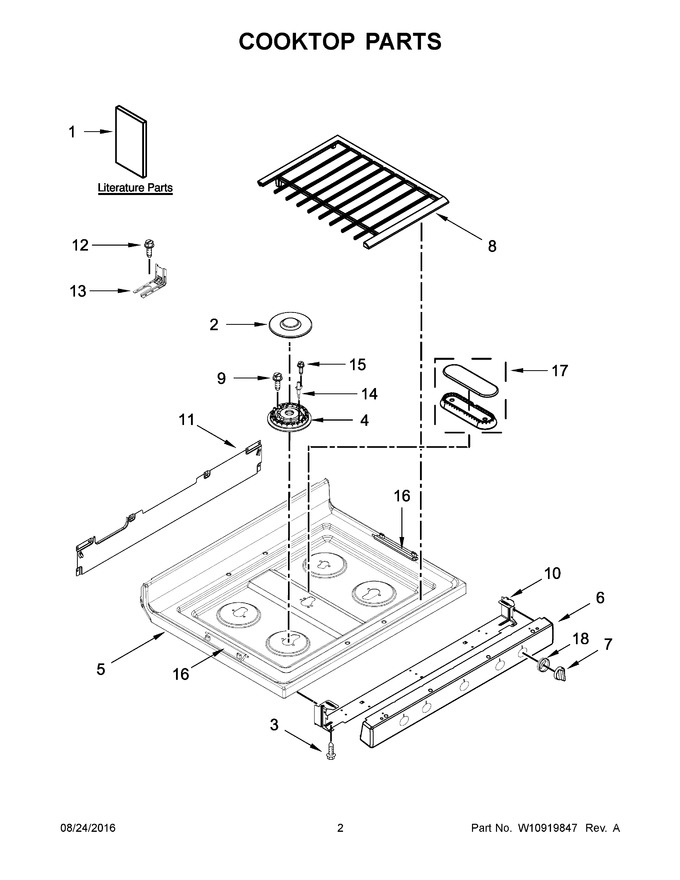

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10553363		Instructions, Installation		Appelez-nous	-
2	W10881749		Kit, Burner Cap (black (set Of 4))   (Replaces: W10850506)				$ 111.69
3	WPW10067840		Screw   (Replaces: W10067840)				$ 8.30
4	WPW10515455		Assembly, Burner (17.5k) (left Front & Right Front)   (Replaces: W10515455)				$ 112.47
5	W10823651		Cooktop (includes Hinges) (black)		Appelez-nous	-
6	W10862655		Panel, Manifold (black)				$ 239.78
7	W11122880		Knob (stainless)   (Replaces: W10862482)			Immediately	$ 26.82
8	W11381653		Kit, Grate (black)   (Replaces: W10824611)				$ 411.25
9	WP3368921		Screw   (Replaces: 3400701)			Immediately	$ 8.56
10	W10534174		Bracket, Manifold Panel		Appelez-nous	-
11	W10530070		Bracket, Rear Gas Cooktop		Appelez-nous	-
12	W11839019		Bracket, Anti-tip   (Replaces: W10306542)			Immediately	$ 28.54
13	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 30.72
14	WPW10515459		Electrode   (Replaces: W10515459)			Immediately	$ 43.77
15	WP8273062		Screw   (Replaces: 8273062)			Immediately	$ 7.91
16	N/P		Hinge, Grate (not Serviced)		Appelez-nous	-
17	W11162114		Spreader, Flame   (Replaces: W10298664)				$ 89.90
18	W11188712		Bezel   (Replaces: W10850043)			Immediately	$ 61.48
1A	W10841338		Guide, Use And Care		Appelez-nous	-
1B	W10400066		Guide, Quick Start (english)		Appelez-nous	-
1C	W10400067		Guide, Quick Start (french)		Appelez-nous	-
1D	9762761		Guide, Quick Start (french)		Appelez-nous	-
1E	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
1F	W10843073		Tech Sheet (english)		Appelez-nous	-
1G	W10841359		Tech Sheet (french)		Appelez-nous	-
4A	WPW10515454		Assembly, Burner (9.5k) (left Rear)   (Replaces: W10515454)				$ 115.74
4B	WPW10515453		Assembly, Burner (6k) (right Rear)   (Replaces: W10515453)				$ 99.29
5A	W10911012		Cooktop (includes Hinges) (white)   (Replaces: W10823650)				$ 574.14
6A	W10862654		Panel, Manifold (white)		Appelez-nous	-
6B	W10862656		Panel, Manifold (stainless)				$ 249.48
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10797419		Harness, Main		Appelez-nous	-
NI	W11161843		Harness, Bake/broil   (Replaces: W10753750)				$ 216.55
NI	W10809927		Harness, Cooktop				$ 160.90
NI	W10519920		Harness, Dsi Ground				$ 21.06
NI	3196896		Clip, Wire		Appelez-nous	-
NI	W10334923		Clip, Gas Wiring		Appelez-nous	-
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 89.00
NI	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
NI	WPW10182767		Tie, Manifold Wire   (Replaces: W10182767)				$ 7.30
