SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Manifold Parts

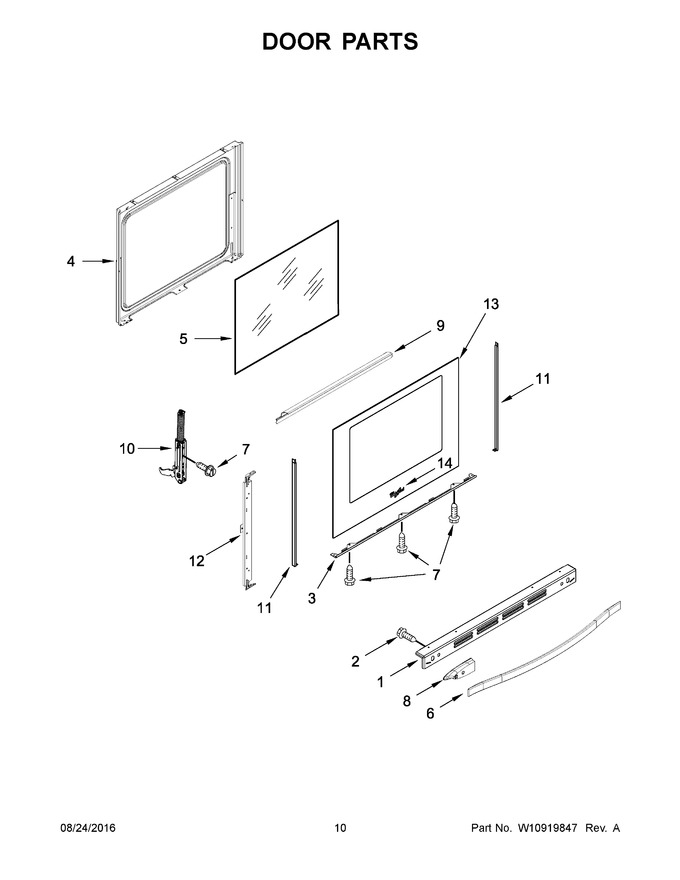

06 - Door Parts


07 - Drawer Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10294855		Trim, Vent (black)			Immediately	$ 119.88
2	WPW10317886		Screw   (Replaces: W10317886)			Immediately	$ 8.20
3	W10334031		Trim, Bottom (black Ice & White Ice Models Only) (black)				$ 77.86
4	WPW10297318		Liner, Door   (Replaces: W10297318)			Immediately	$ 331.51
5	WPW10300487		Glass, Inner   (Replaces: W10300487)				$ 252.42
6	WPW10618239		Handle, Door (stainless)   (Replaces: W10254687)			Immediately	$ 175.54
7	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 8.80
8	WPW10410341		Standoff, Handle (black)   (Replaces: W10410341)				$ 80.75
9	W10294853		Bracket, Glass Liner			Immediately	$ 237.04
10	WPW10440013		Hinge, Door (active)   (Replaces: W10440013)			Immediately	$ 63.80
11	W10334004		Trim, Side (black Ice & White Ice Models Only) (black)				$ 233.76
12	W11116956		Rail, Door   (Replaces: W10294851)				$ 133.75
13	WPW10289142		Glass, Outer (black)   (Replaces: W10289142)				$ 335.69
14	W11178521		Badge (grey)   (Replaces: W10481433)			Immediately	$ 63.13
11A	W10334003		Trim, Side (black Ice & White Ice Models Only) (white)			Immediately	$ 84.58
13A	WPW10289141		Glass, Outer (white)   (Replaces: W10289141)				$ 364.30
13B	W10909032		Glass, Outer (stainless Includes Badge And Panel)   (Replaces: W10844776)				$ 305.25
14A	W11178521		Badge (white)   (Replaces: W10481434)			Immediately	$ 63.13
1A	WPW10335331		Trim, Vent (white)   (Replaces: W10335331)			Immediately	$ 125.35
1B	W10335333		Trim, Vent (stainless)				$ 174.97
3A	WPW10333990		Trim, Bottom (black Ice & White Ice Models Only) (white)   (Replaces: W10333990)			Immediately	$ 51.90
8A	WPW10429492		Standoff, Handle (white)   (Replaces: W10429492)			Immediately	$ 23.08

    View Diagram in Separate Window       Print Part List
