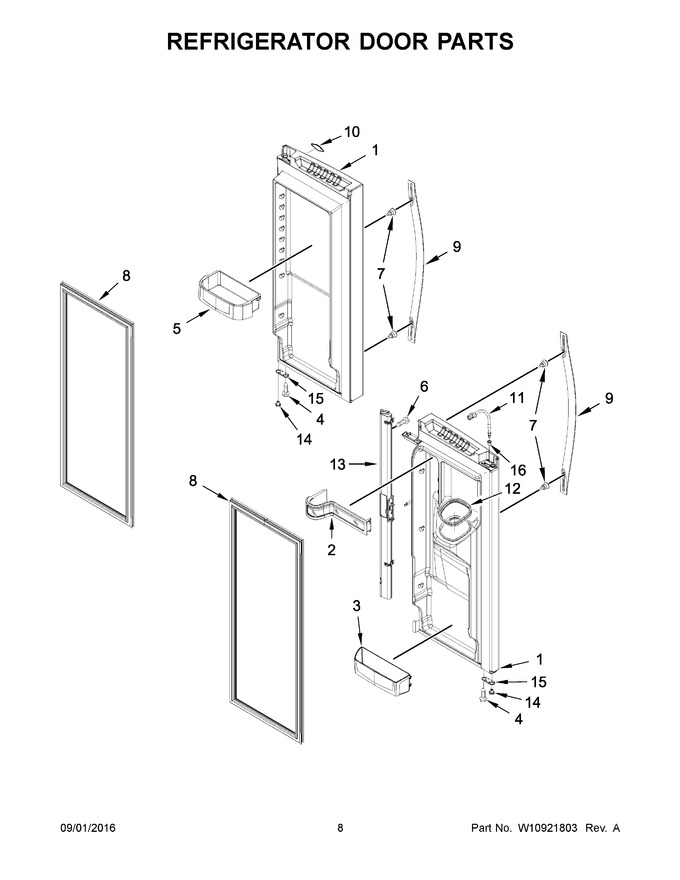

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13107323WQ | Door, Refrigerator Left Hand (white) (Replaces: 13107323W) |
|
$ 1,025.82 | |||||
| 2 | WPW10323808 | Bucket, Upper (Replaces: W10323808) |
|
Immediately | $ 81.50 | ||||
| 3 | WPW10212139 | Bucket, Small (Replaces: W10212139) |
|
Immediately | $ 78.54 | ||||
| 4 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.57 | |||||
| 5 | WPW10224961 | Bucket, Gallon (Replaces: W10224961) |
|
Immediately | $ 95.08 | ||||
| 6 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 7.30 | ||||
| 7 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 12.88 | ||||
| 8 | W10830276 | Gasket, Door (white) |
|
$ 335.11 | |||||
| 9 | W11459378 | Handle, Door (stainless) (Replaces: W10356566) |
|
Immediately | $ 183.89 | ||||
| 10 | WPW10391355 | Nameplate (white) (Replaces: W10391355) |
|
$ 75.65 | |||||
| 11 | WPW10511930 | Waterline, Door (Replaces: W10511930) |
|
$ 121.94 | |||||
| 12 | WPW10287601 | Seal, Ice Chute (Replaces: W10287601) |
|
Immediately | $ 32.76 | ||||
| 13 | W10311759 | Mullion, Door (white) |
|
$ 126.88 | |||||
| 14 | WP67003638 | Closure, Door (white) (Replaces: 12028505W) |
|
Immediately | $ 8.15 | ||||
| 15 | 12968202W | Stop, Door (white) |
|
$ 69.29 | |||||
| 16 | 12996601 | Clip, Bushing |
|
$ 10.05 | |||||
| 10A | WPW10393265 | Nameplate (grey) (Replaces: W10393265) |
|
Immediately | $ 73.15 | ||||
| 13A | W10311758 | Mullion, Door (black) |
|
$ 131.64 | |||||
| 14A | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
$ 90.32 | |||||
| 15A | W11708403 | Stop, Door (black) (Replaces: 12968202B) |
|
Immediately | $ 14.75 | ||||
| 1A | 13107323BQ | Door, Refrigerator Left Hand (black) (Replaces: 13107323B) |
|
$ 878.92 | |||||
| 1B | 13107319WQ | Door, Refrigerator Right Hand (white) (Replaces: 13107319W) |
|
$ 820.85 | |||||
| 1C | 13107319BQ | Door, Refrigerator Right Hand (black) (Replaces: 13107319B) |
|
$ 872.38 | |||||
| 8A | W10830277 | Gasket, Door (black) |
|
$ 335.09 |
