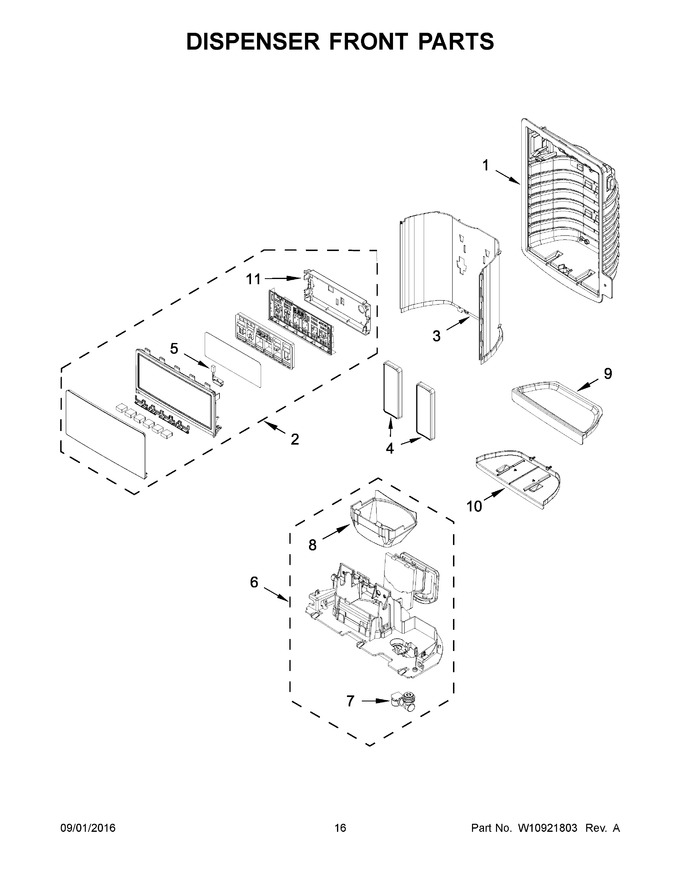

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	WPW10521642		Assembly, Ui (stainless)   (Replaces: W10521642)				$ 415.19
3	W11045975		Wall, Dispenser False (white)   (Replaces: W10215699)		Appelez-nous	-
4	W10353846		Assembly, Pad (includes Blue Light) (white)				$ 280.01
5	W11290115		Assembly, Led   (Replaces: W10238083)				$ 84.45
6	WPW10353552		Assembly, Seperator   (Replaces: W10353552)				$ 166.29
7	W11227371		Assembly, Spigot Body   (Replaces: 2316647)				$ 136.38
8	WPW10435760		Guide, Ice   (Replaces: W10339578)				$ 23.94
9	W11045970		Dispenser, Tray (white)   (Replaces: W10267869)				$ 65.93
10	W10267860		Tray, Dispenser Slide (white)		Appelez-nous	-
11	W10254277		Cover, Board		Appelez-nous	-
10A	W10267861		Tray, Dispenser Slide (black)				$ 74.39
3A	W11045976		Wall, Dispenser False (black)   (Replaces: W10233560)				$ 43.18
4A	W11661207		Assembly, Pad (includes Blue Light) (black)   (Replaces: W10353847)				$ 66.19
9A	W11045971		Dispenser, Tray (black)   (Replaces: W10267870)				$ 65.90

    View Diagram in Separate Window       Print Part List
