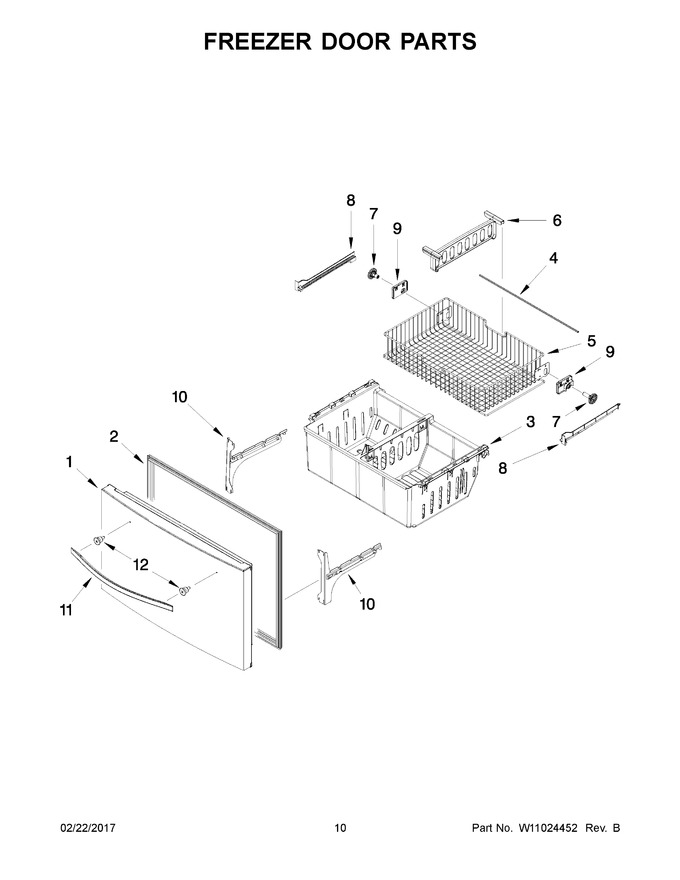

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13107111SQ | Door, Freezer (stainless) (Replaces: 13107111S) |
|
$ 1,104.61 | |||||
| 2 | WPW10714545 | Gasket, Door (grey) (Replaces: W10714545) |
|
$ 323.60 | |||||
| 3 | WPW10293682 | Bin, Lower (Replaces: W10293682) |
|
$ 181.18 | |||||
| 4 | W11173556 | Shaft, Rack (Replaces: W10802333) |
|
$ 32.38 | |||||
| 5 | W11218042 | Basket, Upper (Replaces: W10348249) |
|
$ 203.43 | |||||
| 6 | W10146439 | Divider, Upper Basket |
|
$ 32.66 | |||||
| 7 | WPW10474716 | Gear (left Hand) (Replaces: W10474716) |
|
Immediately | $ 32.42 | ||||
| 8 | W11489993 | Rack, Side (left Hand) (Replaces: W10516603) |
|
$ 23.46 | |||||
| 9 | W10348259 | Mount, Gear (left Hand) |
|
$ 89.87 | |||||
| 10 | WPW10330991 | Bracket, Door Slide (left Hand) (Replaces: W10330991) |
|
$ 164.31 | |||||
| 11 | W10827046 | Handle, Door (stainless) (Replaces: W10719666) |
|
Immediately | $ 232.68 | ||||
| 12 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 12.88 | ||||
| 10A | WPW10330993 | Bracket, Door Slide (right Hand) (Replaces: W10330993) |
|
$ 166.09 | |||||
| 7A | WPW10474715 | Gear (right Hand) (Replaces: W10474715) |
|
Immediately | $ 32.76 | ||||
| 8A | W11489994 | Rack, Side (right Hand) (Replaces: W10516602) |
|
$ 23.46 | |||||
| 9A | W10348260 | Mount, Gear (right Hand) |
|
$ 89.90 |
