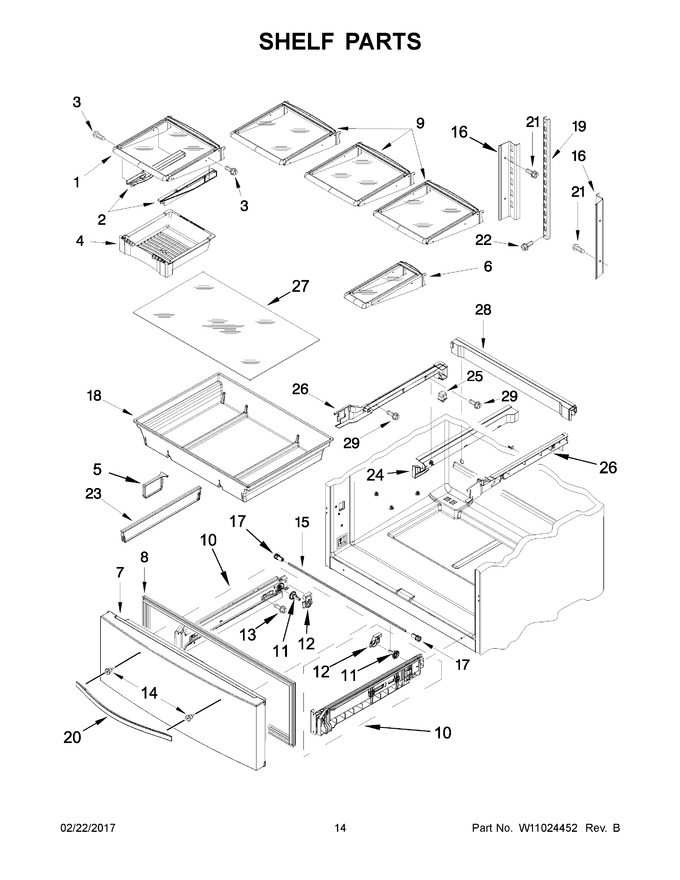

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP12883508SP | Shelf, Glass (Replaces: 12883508SP) |
|
$ 305.36 | |||||
| 2 | WPW10194031 | Glide, Snack Pan (left Hand) (Replaces: W10194031) |
|
$ 125.17 | |||||
| 3 | W11233072 | Screw (Replaces: 12990302SP) |
|
Immediately | $ 14.02 | ||||
| 4 | WPW10319333 | Pan, Snack (includes Handle) (Replaces: W10319333) |
|
$ 138.06 | |||||
| 5 | W10818645 | Divider, Sliding |
|
- | |||||
| 6 | W11197490 | Shelf, Mini Stationary (Replaces: 12885501) |
|
$ 230.52 | |||||
| 7 | 13107112SQ | Door, Pantry (stainless) (Replaces: 13107112S) |
|
$ 967.96 | |||||
| 8 | WPW10443326 | Gasket, Pantry (grey) (Replaces: W10443326) |
|
$ 331.11 | |||||
| 9 | W11402525 | Shelf, Glide Out (Replaces: 12883507) |
|
$ 223.28 | |||||
| 10 | W11093713 | Adapter, Pantry (left Hand) (Replaces: W10666362) |
|
$ 134.70 | |||||
| 11 | W10277360 | Gear, Spur |
|
$ 30.33 | |||||
| 12 | W10284709 | Cover, Gear (left Hand) |
|
$ 70.37 | |||||
| 13 | WPW10272364 | Screw (Replaces: W10272364) |
|
Immediately | $ 10.82 | ||||
| 14 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 11.85 | ||||
| 15 | W10802341 | Shaft, Rack |
|
- | |||||
| 16 | W10251968 | Ladder, Side (left Hand) |
|
$ 26.08 | |||||
| 17 | WPW10277361 | Collar, Gear (Replaces: W10277361) |
|
$ 11.51 | |||||
| 18 | W11483068 | Pan, Pantry (Replaces: W10801677) |
|
$ 252.36 | |||||
| 19 | W10273464 | Ladder, Center |
|
Immediately | $ 28.75 | ||||
| 20 | W10827046 | Handle, Snack Pan (stainless) (Replaces: W10719666) |
|
Immediately | $ 232.68 | ||||
| 21 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 6.95 | ||||
| 22 | WP67006415 | Screw (Replaces: 12990512) |
|
$ 7.80 | |||||
| 23 | W11340457 | Divider, Pantry (Replaces: W10818644) |
|
$ 40.20 | |||||
| 24 | W10311725 | Cover, Pantry Rail (left Hand) |
|
$ 17.37 | |||||
| 25 | W11291138 | Switch, Rocker (Replaces: 12466104) |
|
Immediately | $ 36.67 | ||||
| 26 | W10311723 | Rail, Pantry (left Hand) |
|
$ 135.27 | |||||
| 27 | WPW10296571 | Glass, Pantry Shelf (Replaces: W10296571) |
|
$ 235.33 | |||||
| 28 | W10331298 | Rail, Rear Pantry |
|
- | |||||
| 29 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.00 | |||||
| 10A | W11093714 | Adapter, Pantry (right Hand) (Replaces: W10666363) |
|
$ 131.73 | |||||
| 12A | W10294414 | Cover, Gear (right Hand) |
|
$ 79.50 | |||||
| 16A | W10251965 | Ladder, Side (right Hand) |
|
$ 29.60 | |||||
| 26A | W11715934 | Rail, Pantry (right Hand) (Replaces: W10311726) |
|
$ 43.64 | |||||
| 2A | WPW10194032 | Glide, Snack Pan (right Hand) (Replaces: W10194032) |
|
$ 121.61 |
