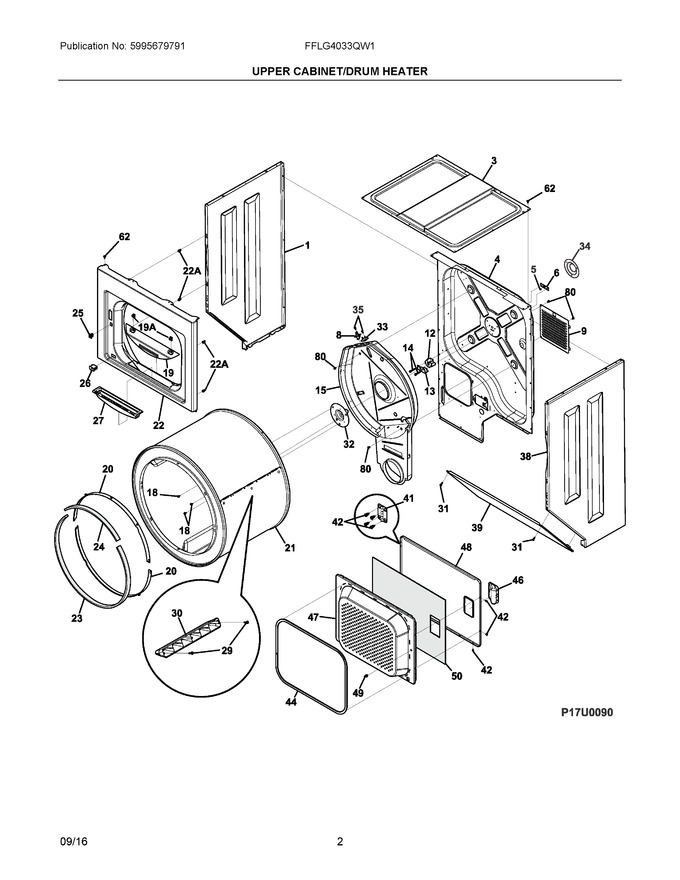

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 137510410 | Panel, Left Side, White |
|
$ 257.36 | |||||
| 3 | 131883301 | Panel, Top |
|
$ 307.76 | |||||
| 4 | 5304500431 | Panel, Rear, Lc Dryer |
|
$ 324.50 | |||||
| 5 | 5303281019 | Ball, Grounding |
|
$ 18.11 | |||||
| 6 | 5303281020 | Clip, Ball, Steel, Flat Nut |
|
$ 18.90 | |||||
| 8 | 137032600 | Limiter, Thermal, Heater |
|
Immediately | $ 24.44 | ||||
| 9 | 5303309490 | Panel, Motor Access |
|
- | |||||
| 12 | 131825900 | Bearing, Drum Support |
|
Immediately | $ 12.19 | ||||
| 13 | 131724301 | Bracket, Bearing Support (Replaces: 131724300) |
|
Immediately | $ 28.51 | ||||
| 14 | 131205400 | Screw, Bracket Mtg., 10-16b X 1.375, Cr/sq Drive |
|
$ 14.18 | |||||
| 15 | 137470800 | Heater Housing, W/duct |
|
- | |||||
| 18 | 5304502598 | Screw, Thread Cutting, #10-32 X .75 |
|
Immediately | $ 10.45 | ||||
| 19 | 131729301 | Cover, Moisture Sensor, Assembly |
|
$ 71.82 | |||||
| 20 | 137513300 | Glide, Flat, Dryer |
|
Immediately | $ 40.75 | ||||
| 21 | 5304506370 | Drum Assembly, Svc Kit, W/vanes |
|
- | |||||
| 22 | 137552110 | Panel, Front Weld, White |
|
$ 356.32 | |||||
| 23 | 5303937183 | Seal, Felt, Lower (Replaces: 134134700) |
|
Immediately | $ 39.86 | ||||
| 24 | 5303937182 | Seal, Felt, Upper (Replaces: 134036400) |
|
Immediately | $ 36.16 | ||||
| 25 | 131658800 | Door Catch, Upper |
|
Immediately | $ 75.98 | ||||
| 26 | 134813600 | Switch, Door |
|
Immediately | $ 47.88 | ||||
| 27 | 5304516871 | Lint Trap, White (Replaces: 131359602) |
|
Immediately | $ 46.67 | ||||
| 29 | 131382300 | Screw, Quadrex Head, 10-14 X 1.00, Vane Mtg., Special |
|
Immediately | $ 14.96 | ||||
| 30 | 137552902 | Vane, Straight, Low |
|
$ 42.58 | |||||
| 31 | 131202300 | Screw, 10-16ab X 0.625 |
|
Immediately | $ 14.96 | ||||
| 32 | 131777700 | Shaft, Drum Support, Ballhitch (Replaces: 137088600) |
|
Immediately | $ 79.85 | ||||
| 33 | 5304406099 | Thermostat, Safety |
|
Immediately | $ 133.98 | ||||
| 34 | 5304506372 | Cover Plate, Bearing |
|
$ 59.73 | |||||
| 35 | 131243700 | Screw, Pan Head, 8-18ab X 0.375 |
|
$ 3.73 | |||||
| 38 | 137510510 | Panel, Right Side, White |
|
$ 258.98 | |||||
| 39 | 137546910 | Panel, Access |
|
$ 204.65 | |||||
| 41 | 134222900 | Hinge, Dryer Door |
|
$ 25.20 | |||||
| 42 | 134156200 | Screw, Flat Head, 8-18ab X 0.44, Quad Drive |
|
Immediately | $ 16.54 | ||||
| 44 | 137551901 | Gasket, Door |
|
Immediately | $ 45.56 | ||||
| 46 | 131789400 | Handle, Door, White |
|
Immediately | $ 70.88 | ||||
| 47 | 137365110 | Panel, Inner Door, White |
|
$ 255.15 | |||||
| 48 | 137408403 | Panel, Outer Door, White |
|
Immediately | $ 215.78 | ||||
| 49 | 5303207102 | Strike, Door (Replaces: 5303211430) |
|
Immediately | $ 22.05 | ||||
| 50 | 134535300 | Insulator, Heat Shield, Outer Door |
|
$ 66.94 | |||||
| 62 | 131302800 | Screw, 10-16ab X 0.500 (Replaces: 131258400) |
|
Immediately | $ 29.53 | ||||
| 80 | 131168200 | Screw, Pan Head, 8-18b X 0.31 |
|
Immediately | $ 15.75 | ||||
| 19A | 5308014350 | Clip, End Cap Mtg, U-type |
|
- | |||||
| 22A | 137362600 | Pin, Panel Locator |
|
$ 39.38 | |||||
| NIA | 137604900 | Seal, Exhaust Tube |
|
- | |||||
| NIA | 137576600 | Plug, Light Hole |
|
Immediately | $ 15.75 | ||||
| NIA | 137352600 | Harness, Door, Sw W/sensor |
|
$ 81.93 |
