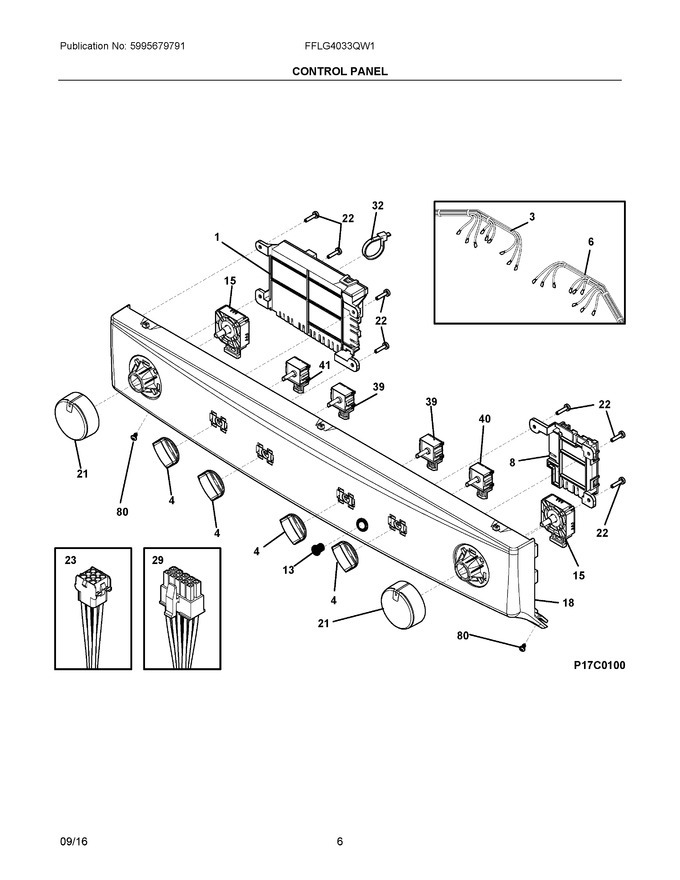

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304500455 | Board, Control, Main, W/housing |
|
$ 219.01 | |||||
| 3 | 137329400 | Wiring Harness, Dryer, Lc Upper |
|
$ 118.91 | |||||
| 4 | 5304504886 | Knob, Switch |
|
$ 75.78 | |||||
| 6 | 5304500474 | Harness, Upper Lc Washer |
|
$ 137.81 | |||||
| 8 | 5304500456 | Board, User Interface, Washer, W/housing |
|
Immediately | $ 211.08 | ||||
| 13 | 134040800 | Switch, On/off, White, Round |
|
$ 73.24 | |||||
| 15 | 137493400 | Switch, Pts Cycle Selec, 9 Pos |
|
Immediately | $ 35.98 | ||||
| 18 | 5304500510 | Console, Dec Cntl Panel |
|
$ 168.69 | |||||
| 21 | 5304504887 | Knob, Cycle Selector |
|
$ 74.66 | |||||
| 22 | 134402900 | Screw, Phillips, 6-19 X 0.650 |
|
$ 33.08 | |||||
| 23 | 5304500522 | Harness, Main |
|
$ 207.29 | |||||
| 29 | 137303800 | Harness, Main, Lc-d-gas |
|
- | |||||
| 32 | 5304464772 | Cable Tie, 5.60 Inch, Plastic (Replaces: 5303321209) |
|
$ 11.81 | |||||
| 39 | 137205200 | Switch, Rotary, 2 Pos |
|
Immediately | $ 48.04 | ||||
| 40 | 137052700 | Switch, Rotary, 5 Pos |
|
$ 53.55 | |||||
| 41 | 137261000 | Switch, Rotary, 4 Pos |
|
$ 114.06 | |||||
| 80 | 131205100 | Screw, #8 Pan Head, 10-10b X 0.500, Cr/sq Drive |
|
Immediately | $ 15.75 | ||||
| NI | 5304500530 | Energy Guide |
|
- |
