01 - Cover Sheet

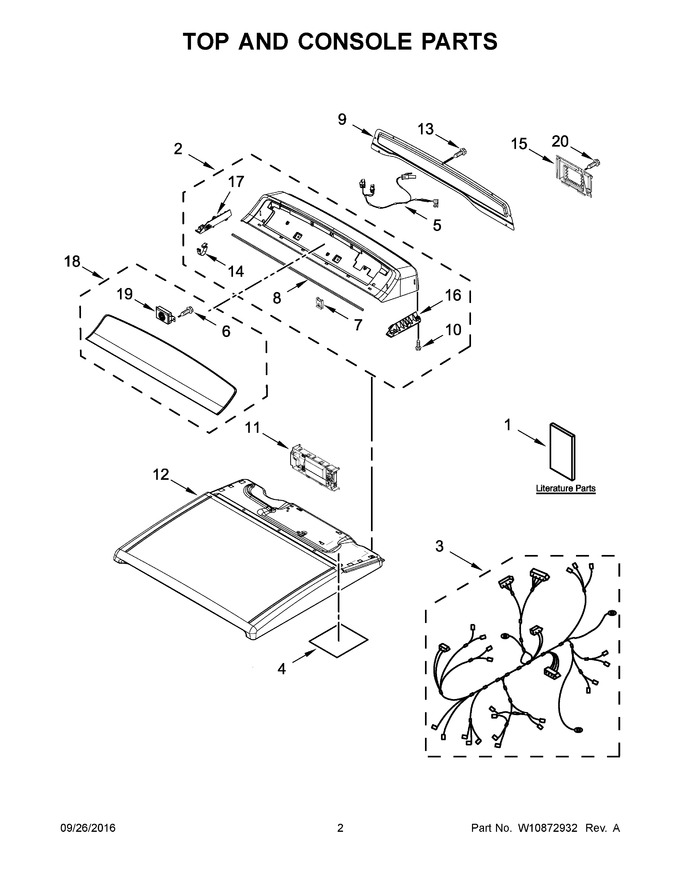

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Door Parts


06 - Burner Assembly Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10725269		Installation Instructions		Appelez-nous	-
2	W11050696		Console (white)   (Replaces: W10622070)				$ 172.20
3	W10777444		Wiring Harness		Appelez-nous	-
4	W11668653		Panel, Dampening   (Replaces: W10836097)				$ 30.95
5	W10593673		Harness, User Interface				$ 38.57
6	W10728156		Screw		Appelez-nous	-
7	W11213336		Nut, "u   (Replaces: W10298336)				$ 8.13
8	W11721376		Seal, Console   (Replaces: W10726632)		Appelez-nous	-
9	W10622402		Panel, Rear Console		Appelez-nous	-
10	W10853898		Screw   (Replaces: W10219342)			Immediately	$ 8.18
11	WPW10739350		Control, Electronic   (Replaces: W10739350)				$ 297.41
12	W11227373		Top (white)   (Replaces: W10508981)				$ 255.61
13	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 8.58
14	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
15	W10819767		Cover, Terminal Block   (Replaces: 8317339)		Appelez-nous	-
16	W10631629		Console Mount (right)		Appelez-nous	-
17	W10631630		Console Mount (left)				$ 153.63
18	W10507946		Fascia, Console				$ 353.26
19	W11123146		Assembly, Speaker   (Replaces: W10568405)				$ 80.93
20	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 12.88
12A	W11051477		Top (chrome Shadow)   (Replaces: W10681117)				$ 358.85
12B	W10573725		Top (red)		Appelez-nous	-
1A	W10680139		Guide, Use And Care		Appelez-nous	-
1B	W10777449		Tech Sheet		Appelez-nous	-
1C	W10720369		Quickstart Guide		Appelez-nous	-
2A	W11116871		Console (chrome Shadow)   (Replaces: W10682652)				$ 684.03
2B	W11028279		Console (red)   (Replaces: W10678979)		Appelez-nous	-
