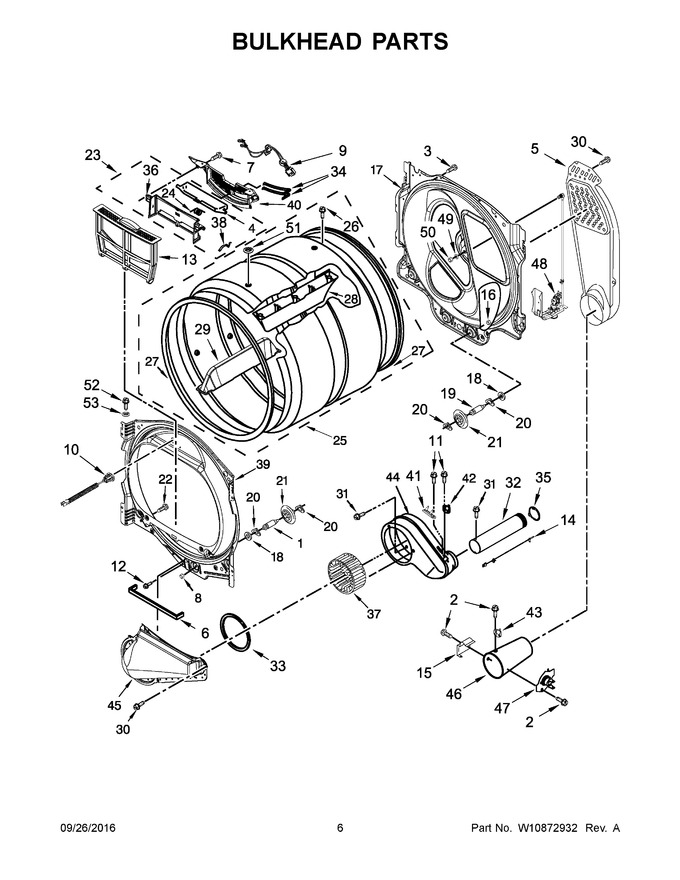

04 - Bulkhead Parts
05 - Door Parts
06 - Burner Assembly Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10359271 | Shaft, Drum Roller - Right Hand Thread (Replaces: W10359271) |
|
Immediately | $ 62.21 | ||||
| 2 | WP489463 | Screw (Replaces: 489463) |
|
$ 8.25 | |||||
| 3 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 4 | W11242876 | Door, Lint Screen (Replaces: W10608808) |
|
$ 110.26 | |||||
| 5 | W11129538 | Duct, Inlet Assembly (Replaces: W10834203) |
|
$ 203.06 | |||||
| 6 | W10701355 | Seal, Housing Outlet To Lint Duct |
|
- | |||||
| 7 | WP3387230 | Screw (Replaces: 3387230) |
|
Immediately | $ 8.54 | ||||
| 8 | W11812294 | Nut, Hex (Replaces: 3934666) |
|
$ 12.77 | |||||
| 9 | W11161899 | Sensor Jumper, Moisture (Replaces: W10657328) |
|
$ 15.89 | |||||
| 10 | WPW10629046 | Assembly, Drum Light (Replaces: W10629046) |
|
$ 82.97 | |||||
| 11 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 12 | WP308685 | Screw (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 13 | W10859086 | Screen, Lint (white) (Replaces: W10608811) |
|
$ 71.64 | |||||
| 14 | W11744013 | Thermistor, Gas Inlet (Replaces: W10651569) |
|
- | |||||
| 15 | WP338906 | Sensor, Radiant (Replaces: 338906) |
|
Immediately | $ 51.91 | ||||
| 16 | WPW10080190 | Nut, Hex (left Hand Thread) (Replaces: W10001120) |
|
Immediately | $ 10.01 | ||||
| 17 | W11135006 | Bulkhead, Rear (Replaces: W10623519) |
|
$ 267.47 | |||||
| 18 | W11236646 | Washer (Replaces: 3387459) |
|
Immediately | $ 14.73 | ||||
| 19 | WPW10359272 | Shaft, Drum Roller - Left Hand Thread (Replaces: W10359272) |
|
Immediately | $ 58.48 | ||||
| 20 | WPW10512946 | Washer, Tri Ring (Replaces: W10512946) |
|
Immediately | $ 8.80 | ||||
| 21 | WPW10314173 | Roller, Support (Replaces: W10314171) |
|
Immediately | $ 28.50 | ||||
| 22 | WPW10366705 | Screw (Replaces: W10366705) |
|
$ 7.88 | |||||
| 23 | W11242876 | Assembly, Outlet Housing (Replaces: W10608812) |
|
$ 110.26 | |||||
| 24 | W11242876 | Spring, Lint Screen Door (Replaces: W10219015) |
|
$ 110.26 | |||||
| 25 | W10646770 | Assembly, Drum |
|
Immediately | $ 256.80 | ||||
| 26 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 8.18 | ||||
| 27 | W11189144 | Seal, Drum (Replaces: W10664120) |
|
$ 22.69 | |||||
| 28 | W10767090 | Baffle, Drum Low |
|
$ 39.12 | |||||
| 29 | W10767074 | Baffle, Drum High |
|
$ 37.79 | |||||
| 30 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 31 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 32 | W10608817 | Pipe, Exhaust |
|
$ 77.08 | |||||
| 33 | W10868675 | Seal, Lint Duct |
|
$ 78.46 | |||||
| 34 | W11165163 | Sensor, Electrode (Replaces: W10608814) |
|
$ 99.31 | |||||
| 35 | WPW10344699 | Collar, Duct (Replaces: W10344699) |
|
$ 85.70 | |||||
| 36 | W11242876 | Housing, Outlet (Replaces: W10608806) |
|
$ 110.26 | |||||
| 37 | WP697772 | Wheel, Blower (Replaces: 697772) |
|
Immediately | $ 59.07 | ||||
| 38 | W10608815 | Spring Clip, Lint Screen |
|
- | |||||
| 39 | W10861007 | Bulkhead, Front |
|
$ 221.78 | |||||
| 40 | W10608813 | Grille, Outlet |
|
$ 230.15 | |||||
| 41 | W10909685 | Fuse, Thermal (91c) (Replaces: W10693363) |
|
Immediately | $ 71.42 | ||||
| 42 | WP8577274 | Thermistor (Replaces: 8577274) |
|
Immediately | $ 43.61 | ||||
| 43 | WP3391912 | Thermostat, Hi Limit (Replaces: 3391912) |
|
Immediately | $ 71.56 | ||||
| 44 | W11246350 | Housing, Blower (Replaces: W10667717) |
|
Immediately | $ 98.52 | ||||
| 45 | W10868982 | Lint Duct Assembly |
|
$ 196.38 | |||||
| 46 | WP8573824 | Funnel, Burner (Replaces: 8573824) |
|
$ 185.29 | |||||
| 47 | WP8573713 | Cut-off, Thermal (Replaces: 8573713) |
|
Immediately | $ 72.51 | ||||
| 48 | W11314437 | Valve And Hose Assembly (Replaces: W10638150) |
|
Immediately | $ 226.16 | ||||
| 49 | W10044579 | Washer, Nozzle |
|
$ 9.22 | |||||
| 50 | W11230609 | Nut, Brass (Replaces: W10849464) |
|
Immediately | $ 8.24 | ||||
| 51 | W10665050 | Cap, Plug (Replaces: W10128544) |
|
$ 20.15 | |||||
| 52 | W10718190 | Screw |
|
- | |||||
| 53 | W10491983 | Cap (Replaces: 359702) |
|
- |
