SELECT A DIAGRAM

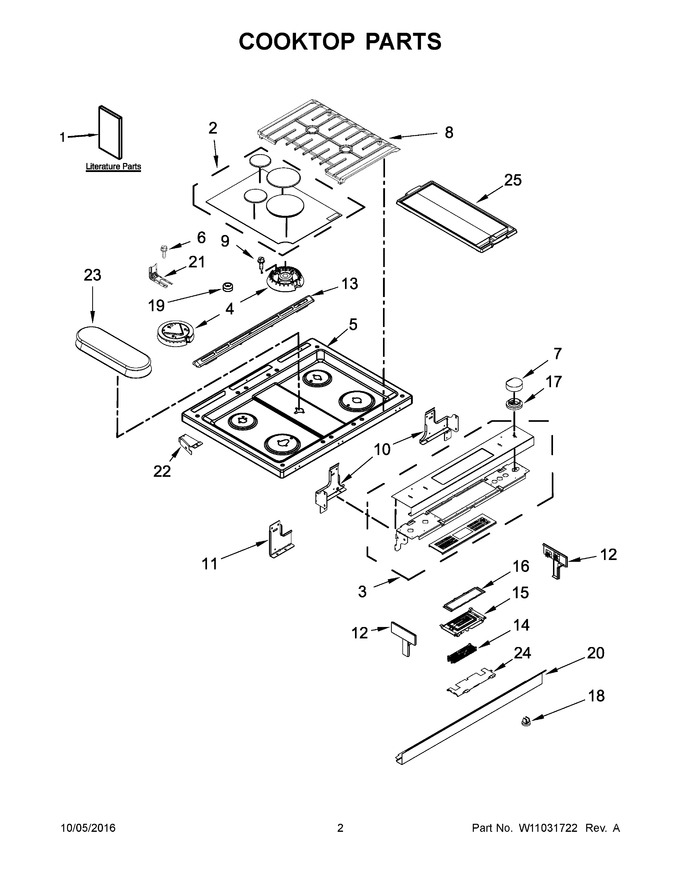

01 - Cover Sheet


02 - Cooktop Parts


03 - Chassis Parts


04 - Manifold Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10665259		Instructions, Installation		Appelez-nous	-
2	W11244067		Kit, Burner Cap (black)   (Replaces: W10432498)			Immediately	$ 212.58
3	W10911397		Console (stainless)   (Replaces: W10901070)			Immediately	$ 813.90
4	W10556380		Spreader, Flame (left Front)				$ 193.95
5	W10797526		Cooktop (stainless)   (Replaces: W10474665)				$ 584.80
6	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 30.72
7	WPW10505764		Knob (stainless)   (Replaces: W10505764)				$ 127.72
8	W11228127		Set, Grate (black)   (Replaces: W10432535)				$ 364.92
9	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
10	W10289170		Support, Cooktop (left)				$ 30.05
11	W10598048		Bracket, Console (center)				$ 25.73
12	W10557751		Endcap (stainless Left)				$ 168.85
13	W11170796		Trim, Vent (stainless)   (Replaces: W10636529)			Immediately	$ 145.75
14	W11099813		Control (mrc2)   (Replaces: W10558057)			Immediately	$ 527.64
15	WPW10603095		Assembly, Display   (Replaces: W10603095)			Immediately	$ 312.65
16	W10557780		Bracket , Control				$ 36.68
17	W11028784		Bezel (stainless)   (Replaces: W10490679)			Immediately	$ 61.99
18	W11025100		Grommet   (Replaces: W10645947)			Immediately	$ 13.16
19	W11104127		Bumper   (Replaces: W10664705)			Immediately	$ 21.97
20	W10565662		Panel, Lower Console (stainless)				$ 209.37
21	W11502257		Bracket, Anti-tip   (Replaces: W10606241)			Immediately	$ 23.03
22	W10162253		Brace, Corner (left)				$ 74.13
23	W10556376		Spreader, Flame (fish) (center)				$ 321.09
24	W10558372		Bracket, Control				$ 25.10
25	W10432544		Griddle			Immediately	$ 56.67
10A	W10289169		Support, Cooktop (right)				$ 30.05
12A	W10557754		Endcap (stainless Right)				$ 168.85
1A	W10665266		Guide, Use & Care		Appelez-nous	-
1B	W10665227		Sheet, Tech		Appelez-nous	-
1C	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1D	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
1E	W10400066		Guide, Quick Start (english)		Appelez-nous	-
1F	W10400067		Guide, Quick Start (french)		Appelez-nous	-
22A	W10162252		Brace, Corner (right)				$ 78.59
4A	W10556379		Spreader, Flame (left Rear)				$ 91.84
4B	W11238353		Spreader, Flame (right Front)   (Replaces: W10556378)				$ 126.38
4C	W10556377		Spreader, Flame (right Rear)				$ 88.62
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10580314		Harness, Main		Appelez-nous	-
NI	W11025616		Harness, Keypad   (Replaces: W10575120)			Immediately	$ 53.35
NI	W11176109		Harness, Display   (Replaces: W10598169)			Immediately	$ 224.96
NI	W10580316		Harness, Bake Drawer			Immediately	$ 185.69
NI	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 89.00

    View Diagram in Separate Window       Print Part List
