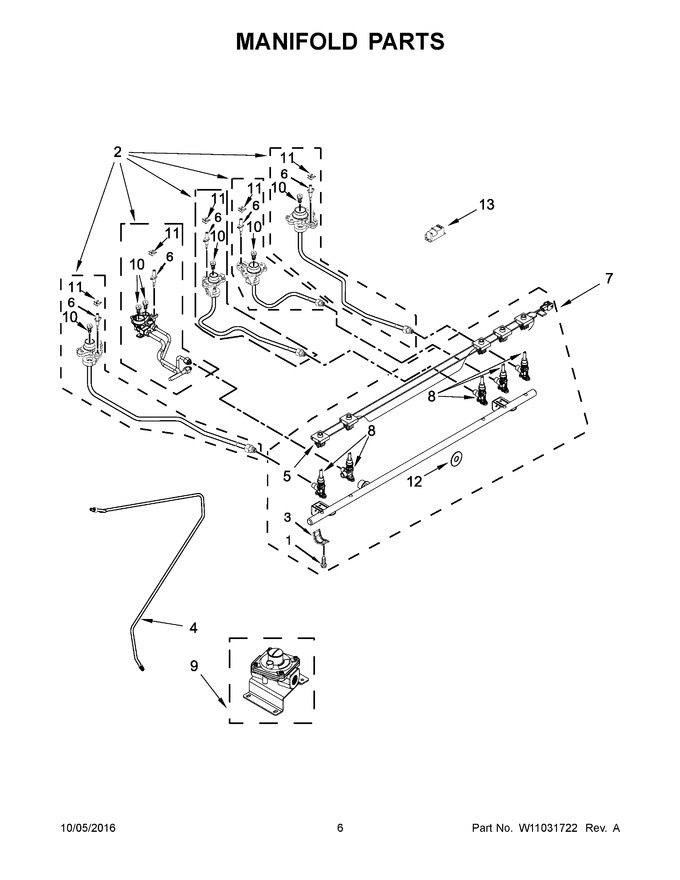

04 - Manifold Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11666001 | Screw (Replaces: W10246216) |
|
$ 14.28 | |||||
| 2 | W10552135 | Assembly, Orifice (19k) (left Front) |
|
$ 255.58 | |||||
| 3 | W10949105 | Bracket, Saddle Valve (Replaces: W10295996) |
|
$ 22.75 | |||||
| 4 | W10552945 | Tube, Supply |
|
$ 94.24 | |||||
| 5 | W10468433 | Harness, Spark Switch |
|
Immediately | $ 118.89 | ||||
| 6 | W11611678 | Electrode (left Front) (Replaces: W10496874) |
|
Immediately | $ 32.98 | ||||
| 7 | W11602206 | Assembly, Manifold (Replaces: W10790618) |
|
Immediately | $ 319.10 | ||||
| 8 | W10566038 | Valve, Gas (dual) (left Front) |
|
$ 344.11 | |||||
| 9 | W10661850 | Assembly, Regulator & Bracket |
|
$ 131.25 | |||||
| 10 | W10566082 | Orifice (left Front, Power) |
|
Immediately | $ 97.59 | ||||
| 11 | W10575401 | Clip, Spring (electrode) |
|
Immediately | $ 11.30 | ||||
| 12 | W10140571 | Seal, Switch Shaft |
|
$ 7.70 | |||||
| 13 | WPW10475149 | Module, Spark (5+0) (Replaces: W10475149) |
|
Immediately | $ 179.05 | ||||
| 10A | W10819958 | Orifice (1.2k) (left Front, Simmer) (Replaces: W10256132) |
|
$ 97.77 | |||||
| 10B | W10756981 | Orifice (left Rear) (Replaces: W10515054) |
|
Immediately | $ 17.91 | ||||
| 10C | W10821182 | Orifice (right Front) (Replaces: W10434277) |
|
Immediately | $ 93.46 | ||||
| 10D | W11752198 | Orifice (right Rear) (Replaces: W10657949) |
|
$ 33.30 | |||||
| 10E | W10657947 | Orifice (8k) (center) |
|
$ 22.40 | |||||
| 2A | W10552132 | Assembly, Orifice (5k) (left Rear) |
|
$ 181.95 | |||||
| 2B | W10552131 | Assembly, Orifice (15k) (right Front) |
|
$ 204.18 | |||||
| 2C | W10552130 | Assembly, Orifice (9.2k) (right Rear) |
|
$ 203.42 | |||||
| 2D | W10552137 | Assembly, Orifice (8k) (center) |
|
$ 220.64 | |||||
| 6A | W11050467 | Electrode (left Rear) (Replaces: W10464799) |
|
Immediately | $ 66.18 | ||||
| 6B | W11447374 | Electrode (right Front & Center) (Replaces: W10496870) |
|
Immediately | $ 46.10 | ||||
| 6C | W11220383 | Electrode (right Rear) (Replaces: W10496872) |
|
Immediately | $ 66.18 | ||||
| 8A | W10831589 | Valve, Gas (left Rear) |
|
$ 278.21 | |||||
| 8B | W11223016 | Valve, Gas (right Front) (Replaces: W10566042) |
|
Immediately | $ 264.72 | ||||
| 8C | W11163975 | Valve, Gas (right Rear & Center) (Replaces: W10566050) |
|
Immediately | $ 188.72 | ||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10909678 | Kit, Lp Conversion (Replaces: W10681410) |
|
Immediately | $ 121.50 |
