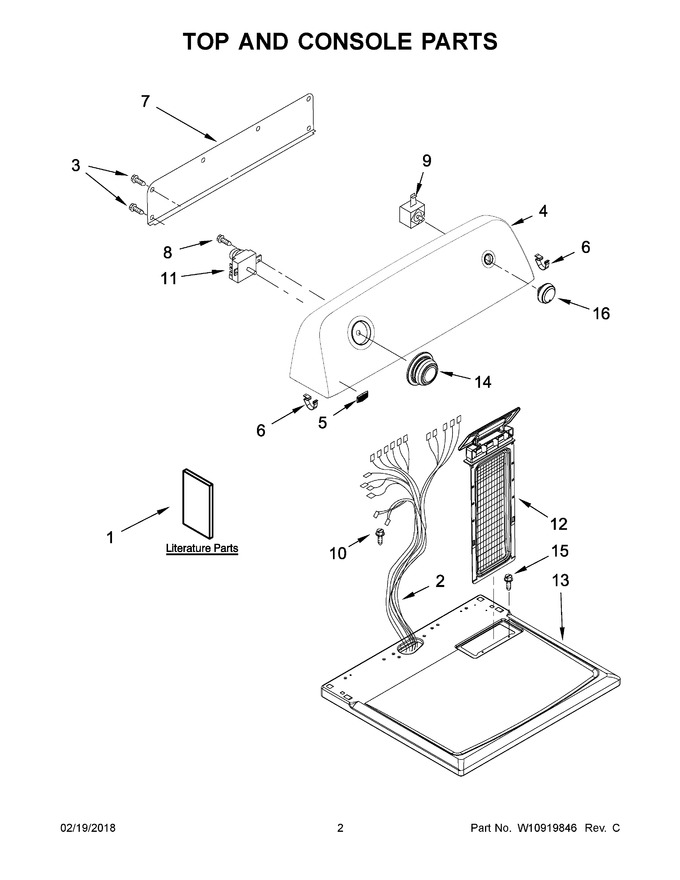

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10849529		Use And Care Guide		Appelez-nous	-
2	W10804465		Main, Wiring Harness		Appelez-nous	-
3	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.19
4	W11027112		Console (white)   (Replaces: W10804420)		Appelez-nous	-
5	WPW10612925		Badge   (Replaces: W10612925)			Immediately	$ 40.34
6	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
7	WPW10416486		Panel, Rear Console   (Replaces: W10416486)				$ 126.09
8	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 7.82
9	W11759046		Switch, Push To Start   (Replaces: W10804432)		Appelez-nous	-
10	W10850756		Screw   (Replaces: W10773242)				$ 7.76
11	W10857612		Timer   (Replaces: W10745655)			Immediately	$ 175.61
12	W11778253		Screen, Lint (white)   (Replaces: W10717210)			Immediately	$ 52.03
13	WP8563663		Top (white)   (Replaces: 8559800)			Immediately	$ 332.62
14	WPW10711289		Assembly, Knob (white)   (Replaces: W10711289)			Immediately	$ 7.93
15	W11693756		Screw   (Replaces: 688983)			Immediately	$ 14.06
16	WPW10453947		Knob, Control (white)   (Replaces: W10453947)				$ 52.15
1A	W10849532		Installation Instructions		Appelez-nous	-
1B	W10916392		Wiring Diagram		Appelez-nous	-
