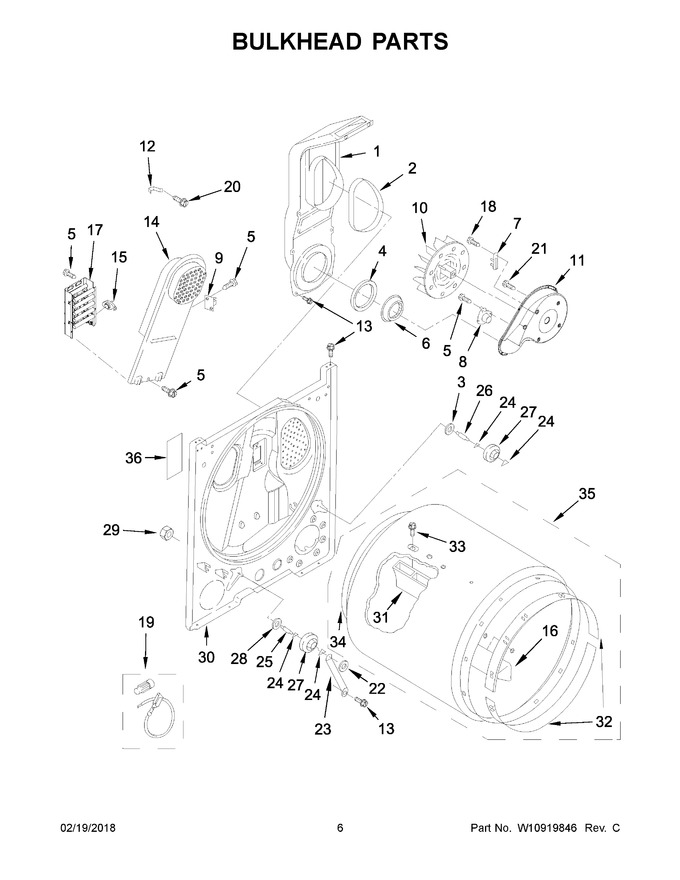

04 - Bulkhead Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11117429 | Assembly, Lint Chute (Replaces: W10798023) |
|
$ 175.01 | |||||
| 2 | WP339956 | Seal (Replaces: 339956) |
|
Immediately | $ 8.63 | ||||
| 3 | WP3388703 | Washer (Replaces: 3388703) |
|
$ 7.47 | |||||
| 4 | W11415783 | Seal, Lint Chute (Replaces: 347139) |
|
Immediately | $ 18.23 | ||||
| 5 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 7.82 | ||||
| 6 | W11233063 | Shield, Exhaust (Replaces: W10389567) |
|
$ 22.29 | |||||
| 7 | WP3392519 | Fuse, Thermal (91c) (Replaces: 3392519) |
|
Immediately | $ 24.95 | ||||
| 8 | WP3387137 | Thermostat (Replaces: 3387137) |
|
$ 136.38 | |||||
| 9 | W11034847 | Kit, Thermal Cut-off (includes Thermostat) |
|
$ 107.95 | |||||
| 10 | WP694089 | Wheel, Blower (Replaces: 694089) |
|
Immediately | $ 37.66 | ||||
| 11 | WP8577230 | Housing, Blower (Replaces: 8577230) |
|
$ 177.95 | |||||
| 12 | W11228141 | Clip, Heater Box (Replaces: W11102319) |
|
- | |||||
| 13 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 14 | WP8541818 | Box, Heater (Replaces: 8541818) |
|
$ 234.81 | |||||
| 15 | WP3977767 | Thermostat, 221 F (105 C) (Replaces: 3977767) |
|
Immediately | $ 26.09 | ||||
| 16 | WP3403636 | Baffle, Drum (short) (Replaces: 3403636) |
|
$ 138.66 | |||||
| 17 | W11026484 | Element, Heater (Replaces: W10798739) |
|
$ 348.67 | |||||
| 18 | WP308685 | Screw (Replaces: 3393008) |
|
Immediately | $ 7.87 | ||||
| 19 | 279457 | Terminal Wire Kit (for Heater Element Wiring Harness Repair) |
|
Immediately | $ 7.92 | ||||
| 20 | WP489463 | Screw (Replaces: 489463) |
|
$ 7.82 | |||||
| 21 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.79 | ||||
| 22 | WP90296 | Nut, Push On (Replaces: 90296) |
|
$ 7.85 | |||||
| 23 | W11684613 | Bracket, Support (Replaces: W11032820) |
|
$ 20.94 | |||||
| 24 | WPW10512946 | Washer, Tri Ring (Replaces: W10512946) |
|
Immediately | $ 8.80 | ||||
| 25 | WPW10359270 | Shaft, Drum Roller - Left Hand Thread (Replaces: W10359270) |
|
Immediately | $ 72.71 | ||||
| 26 | WPW10359269 | Shaft, Drum Roller - Right Hand Thread (Replaces: W10359269) |
|
Immediately | $ 47.30 | ||||
| 27 | 349241T | Roller, Support (Replaces: 3397590) |
|
Immediately | $ 29.53 | ||||
| 28 | WP348197 | Washer (Replaces: 348197) |
|
$ 7.19 | |||||
| 29 | W11229607 | Nut, Hex (Replaces: W10298789) |
|
Immediately | $ 7.74 | ||||
| 30 | W11178668 | Bulkhead (Replaces: W10714466) |
|
$ 285.05 | |||||
| 31 | WP692490 | Baffle, Drum (long) (Replaces: 692490) |
|
$ 159.27 | |||||
| 32 | 279441 | Bearing, Ring (Replaces: 692526) |
|
Immediately | $ 66.22 | ||||
| 33 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 7.75 | ||||
| 34 | W11491417 | Seal, Rear Drum (Replaces: W10899408) |
|
$ 30.73 | |||||
| 35 | W10899578 | Assembly, Drum (complete) |
|
$ 357.65 | |||||
| 36 | W10922156 | Pad, Foam |
|
- |
