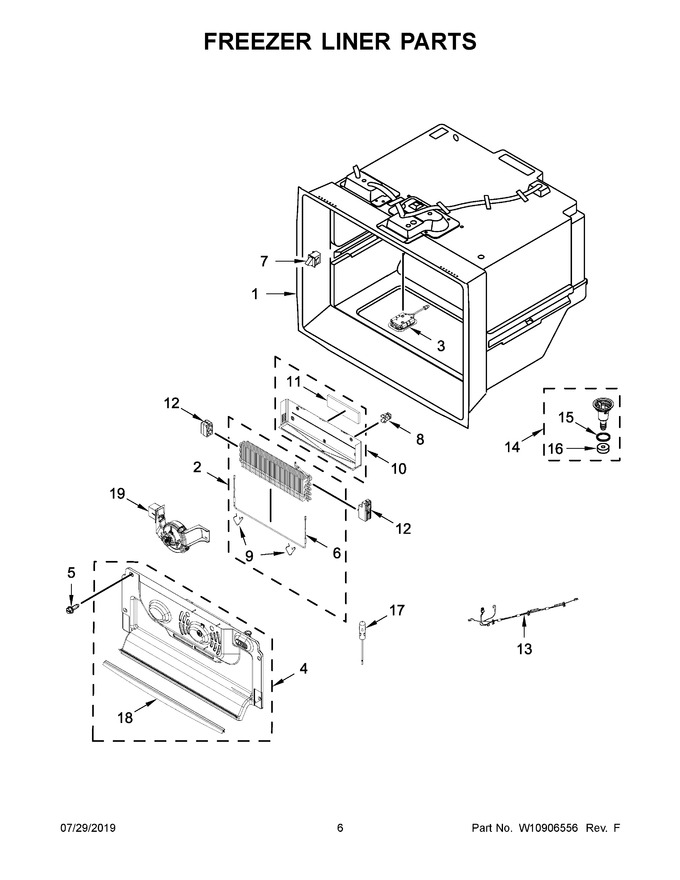

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Seviceable Part) |
|
- | |||||
| 2 | W11035643 | Assembly, Evaporator (Replaces: W10882136) |
|
Immediately | $ 368.26 | ||||
| 3 | W11683243 | Assembly, Led Light Module (Replaces: W10843353) |
|
Immediately | $ 269.91 | ||||
| 4 | W11394920 | Assembly, Evaporator Cover (includes Fan Motor And Wire Assembly) (Replaces: W10772353) |
|
Immediately | $ 333.10 | ||||
| 5 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 6 | W11700340 | Heater, Defrost (Replaces: W10882092) |
|
Immediately | $ 107.40 | ||||
| 7 | W11291139 | Switch, Light (Replaces: W11044241) |
|
$ 38.88 | |||||
| 8 | 10623002 | Clip, Evaporator |
|
$ 12.11 | |||||
| 9 | W10683507 | Clip, Defrost Heater |
|
- | |||||
| 10 | W10668191 | Shield, Heat |
|
- | |||||
| 11 | W10683540 | Gasket, Drip Tray Rear |
|
$ 24.72 | |||||
| 12 | W10668201 | Dam, Air (left Hand) |
|
$ 79.18 | |||||
| 13 | W11204566 | Assembly, Evaporator Heater Wire (includes Thermistor) (Replaces: W10655745) |
|
$ 140.89 | |||||
| 14 | W10503218 | Assembly, Drain Funnel |
|
Immediately | $ 18.64 | ||||
| 15 | WPM0500703 | Seal (Replaces: M0500703) |
|
$ 11.47 | |||||
| 16 | WPB8381501 | Gasket, Drain (Replaces: B8381501) |
|
$ 7.78 | |||||
| 17 | W11724692 | Thermistor (Replaces: W10280385) |
|
Immediately | $ 33.60 | ||||
| 18 | W10770923 | Seal, Crisp Front |
|
$ 28.56 | |||||
| 19 | W11407678 | Assembly, Icebox Fan (Replaces: W10685479) |
|
Immediately | $ 197.69 | ||||
| 12A | W10668198 | Dam, Air (right Hand) |
|
$ 52.42 |
