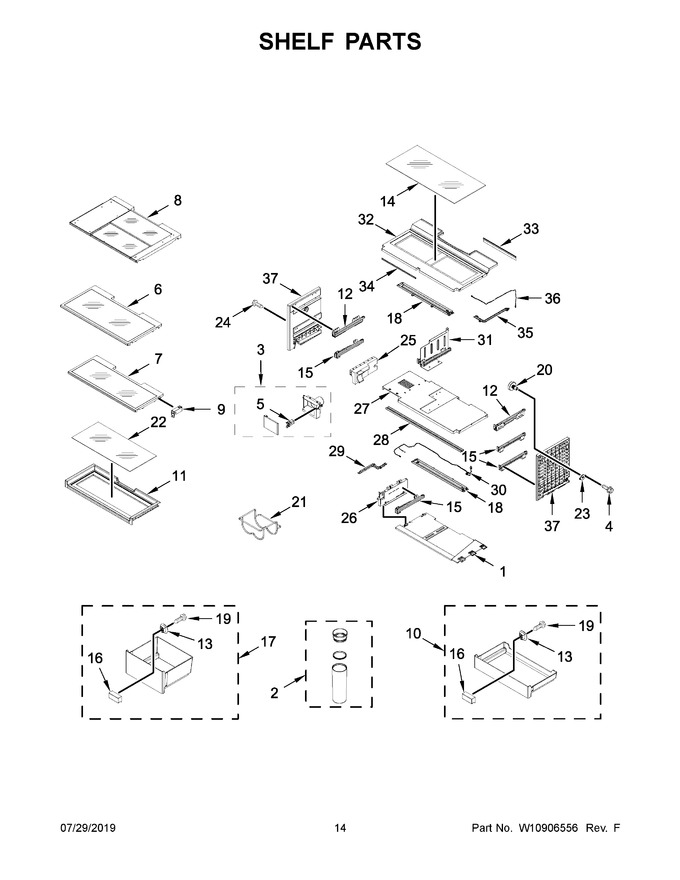

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11086554		Base, Pantry   (Replaces: W10794327)				$ 162.15
2	W10882409		Assembly, Herb Storage (includes Lid And Gasket)   (Replaces: W10795580)				$ 52.09
3	W11483207		Assembly, Filter Door   (Replaces: W11347068)				$ 124.64
4	W10834284		Screw (grey)		Appelez-nous	-
5	WP2223877		Latch, Push   (Replaces: 2223877)				$ 120.84
6	W10906768		Assembly, 15" Full Shelf   (Replaces: W10836819)				$ 329.14
7	W11262315		Assembly, 12" Full Shelf   (Replaces: W11116725)				$ 327.84
8	W10906770		Assembly, Tuck Shelf   (Replaces: W10837200)		Appelez-nous	-
9	W10817923		Assembly, Block (front Left/back Right)				$ 28.00
10	W10794366		Pan, Pantry				$ 190.51
11	W11289961		Assembly, Platter Shelf   (Replaces: W11135594)				$ 334.94
12	W10816004		Glide, Platter (left Hand)			Immediately	$ 153.69
13	W10663641		Spacer, Handle				$ 27.58
14	W10887837		Glass, Crisper Cover   (Replaces: W10804533)			Immediately	$ 242.34
15	W10816002		Glide, Crisper (left Hand)				$ 132.94
16	W10794362		Handle		Appelez-nous	-
17	W10794361		Assembly, Crisper Pan			Immediately	$ 200.47
18	W10921807		Assembly, Light		Appelez-nous	-
19	W10903879		Screw		Appelez-nous	-
20	W10840921		Knob, Side Support		Appelez-nous	-
21	W10837214		Rack, Wine		Appelez-nous	-
22	W10906771		Glass, Platter   (Replaces: W10794577)		Appelez-nous	-
23	W10840918		Flange, Side Support				$ 93.47
24	W10847999		Screw				$ 13.47
25	W11084829		Insulation, Filter Housing   (Replaces: W10792132)		Appelez-nous	-
26	W10794329		Support, Pantry		Appelez-nous	-
27	W11086555		Cover, Pantry   (Replaces: W10794323)				$ 140.72
28	W10814884		Bar, Support			Immediately	$ 150.53
29	W10834719		Cover, Wiring Harness		Appelez-nous	-
30	W11744510		Assembly, Pantry Wire (includes Thermistor)   (Replaces: W10779301)				$ 114.44
31	W10794337		Assembly, Center Support				$ 256.19
32	W11086556		Frame, Crisper Cover   (Replaces: W10794334)				$ 216.28
33	W10794336		Gasket, Crisper Cover (rear)		Appelez-nous	-
34	W10794242		Gasket, Crisper Cover (front)				$ 132.33
35	W10854845		Cover, Wiring Harness		Appelez-nous	-
36	W10835866		Jumper, Crisper Led		Appelez-nous	-
37	W10794317		Support, Side (left Hand)				$ 156.53
12A	W10814864		Glide, Platter (right Hand)				$ 159.23
15A	W10814859		Glide, Crisper (right Hand)				$ 131.09
37A	W10794320		Support, Side (right Hand)		Appelez-nous	-
9A	W10817924		Assembly, Block (front Right/back Left)				$ 27.88
