SELECT A DIAGRAM

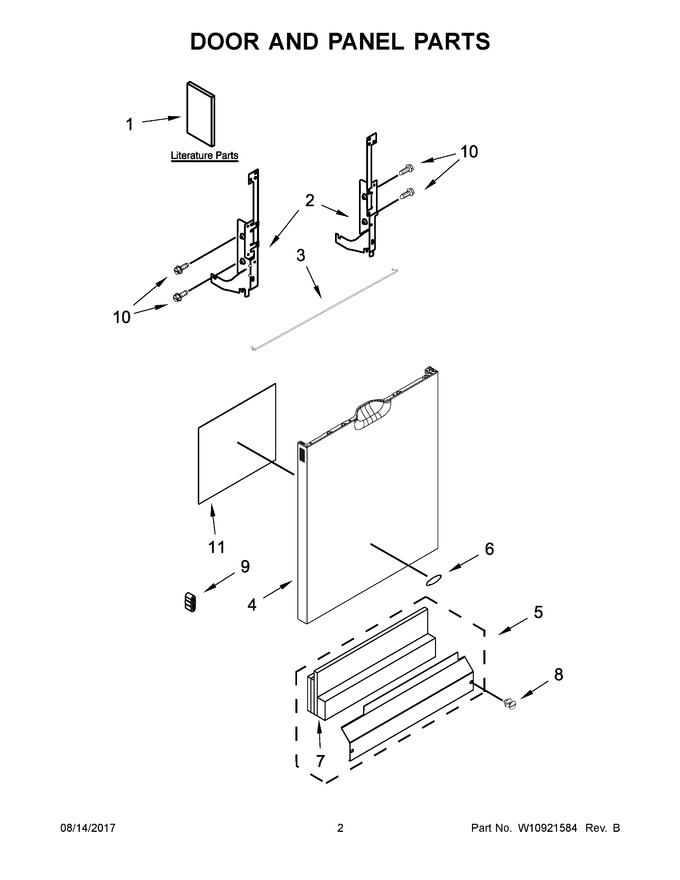

01 - Cover Sheet


02 - Door And Panel Parts


03 - Control Panel And Latch Parts


04 - Inner Door Parts


05 - Fill, Drain And Overfill Parts


06 - Tub And Frame Parts


07 - Pump, Washarm And Motor Parts


08 - Upper Wash And Rinse Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10806908		Installation Instructions		Appelez-nous	-
2	W11806566		Arm, Hinge (left Hand)   (Replaces: W10274922)			Immediately	$ 71.77
3	W10850371		Stiffener, Door   (Replaces: W10803537)			Immediately	$ 32.88
4	WPW10629473		Panel, Front (includes Nameplate) (stainless)   (Replaces: W10629473)				$ 388.41
5	WPW10526114		Access Panel (black)   (Replaces: W10526114)			Immediately	$ 149.53
6	WPW10393264		Nameplate (grey)   (Replaces: W10393264)				$ 67.74
7	W10831329		Insulation, Four Layer   (Replaces: W10518815)			Immediately	$ 43.30
8	WPW10503548		Fastener (black)   (Replaces: W10503548)			Immediately	$ 30.39
9	WP8268961		Sleeve, Friction   (Replaces: 8268961)			Immediately	$ 5.93
10	WPW10109200		Screw   (Replaces: 489470)			Immediately	$ 8.80
11	W11126003		Insulation, Front Panel   (Replaces: W10315897)			Immediately	$ 65.25
1A	W11046216		Energy Guide		Appelez-nous	-
1B	W10889568		Use & Care Guide		Appelez-nous	-
1C	W10590887		Tech Sheet, English		Appelez-nous	-
1D	W10590888		Tech Sheet, French		Appelez-nous	-
2A	W11613572		Arm, Hinge (right Hand)   (Replaces: W10274921)			Immediately	$ 83.93

    View Diagram in Separate Window       Print Part List
