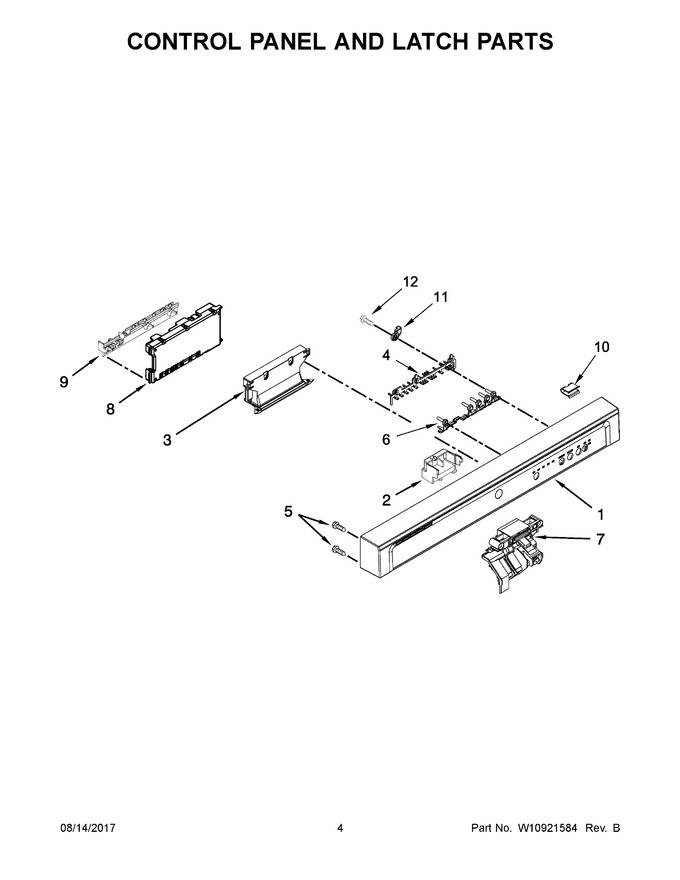

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10849486 | Console Assembly (includes Insert) (stainless) (Replaces: W10629489) |
|
Immediately | $ 235.09 | ||||
| 2 | W10783730 | Box, Connector (Replaces: W10756253) |
|
$ 31.41 | |||||
| 3 | W11568629 | Handle Pocket (black) (Replaces: W10629511) |
|
Immediately | $ 24.85 | ||||
| 4 | W10839423 | Light Pipe (Replaces: W10629497) |
|
Immediately | $ 27.14 | ||||
| 5 | W11232015 | Screw (Replaces: W10648588) |
|
Immediately | $ 14.73 | ||||
| 6 | W10849355 | Button Tree (Replaces: W10629499) |
|
$ 26.38 | |||||
| 7 | WPW10653840 | Latch Assembly (includes Switch) (Replaces: W10574864) |
|
Immediately | $ 34.18 | ||||
| 8 | W10817264 | Control, Electronic (Replaces: W10804132) |
|
Immediately | $ 283.77 | ||||
| 9 | WPW10372484 | Brace, Connector (Replaces: W10372484) |
|
$ 23.37 | |||||
| 10 | W10815836 | Clip, Panel (Replaces: W10485367) |
|
$ 8.25 | |||||
| 11 | W10629551 | Tab, Control |
|
$ 21.86 | |||||
| 12 | W11700520 | Screw (Replaces: 3400061) |
|
$ 14.28 |
