SELECT A DIAGRAM

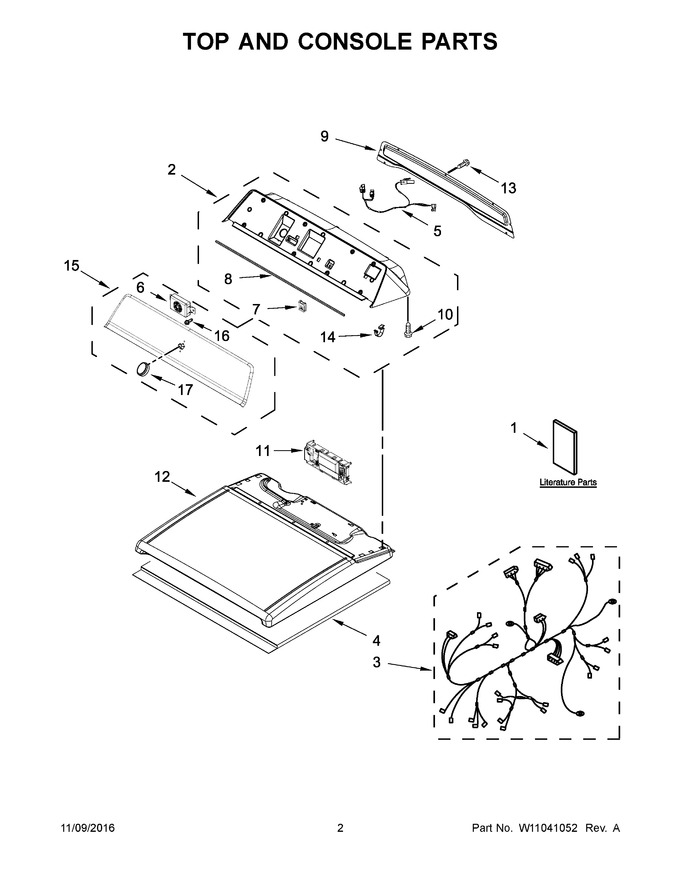

01 - Cover Sheet


02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Door Parts


06 - Burner Assembly Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10725269		Installation Instructions		Appelez-nous	-
2	W10682013		Console Assembly (complete) (chrome Shadow)				$ 381.03
3	W10777444		Wiring Harness		Appelez-nous	-
4	W11668653		Panel, Dampening   (Replaces: W10836097)				$ 30.95
5	W10849059		Harness, User Interface   (Replaces: W10788429)				$ 184.59
6	W11123146		Assembly, Speaker   (Replaces: W10568405)				$ 80.93
7	W11213336		Nut, "u   (Replaces: W10298336)				$ 8.13
8	W11721376		Seal, Console   (Replaces: W10726632)		Appelez-nous	-
9	W10622402		Panel, Rear Console		Appelez-nous	-
10	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 8.58
11	W10833003		Control, Electronic   (Replaces: W10793302)				$ 390.64
12	W11051477		Top (chrome Shadow)   (Replaces: W10701018)				$ 358.85
13	W10704731		Screw		Appelez-nous	-
14	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
15	W10849058		Fascia   (Replaces: W10740702)				$ 812.33
16	WP9740849		Screw   (Replaces: 9740849)				$ 7.30
17	W10853910		Assembly, Control Knob (chrome)   (Replaces: W10727011)				$ 53.94
1A	W10680141		Use And Care Guide		Appelez-nous	-
1B	W10777449		Tech Sheet		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
