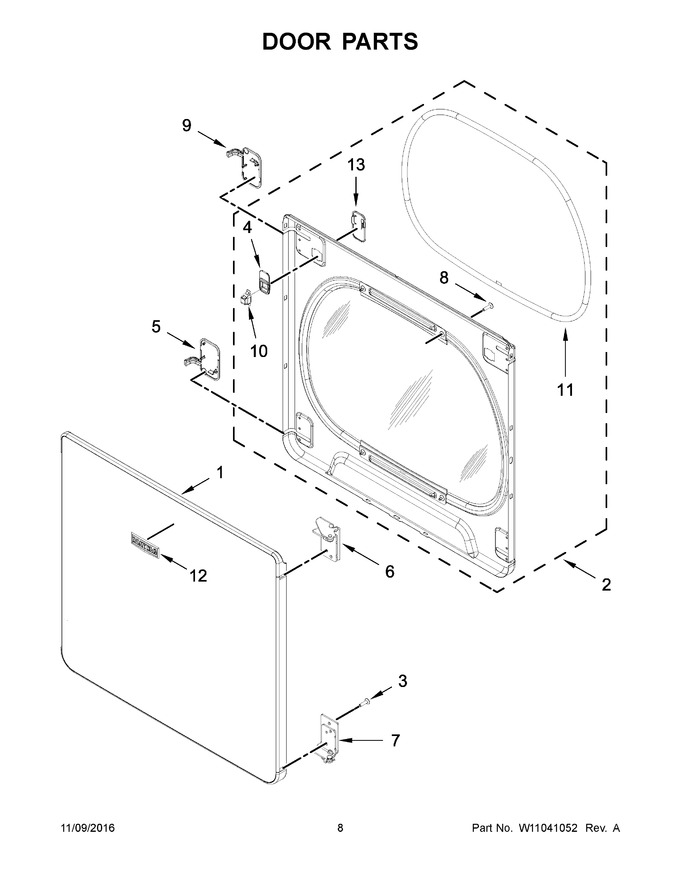

05 - Door Parts
06 - Burner Assembly Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11129460 | Assembly, Outer Door (white) (Replaces: W10631405) |
|
$ 459.98 | |||||
| 2 | W10615000 | Assembly, Inner Door (chrome Shadow) |
|
$ 271.77 | |||||
| 3 | W10850046 | Screw (Replaces: 9742177) |
|
Immediately | $ 7.55 | ||||
| 4 | W10669023 | Bezel, Door Catch (chrome Shadow) |
|
$ 23.64 | |||||
| 5 | W10631413 | Hinge Cover, Bottom (chrome Shadow) |
|
- | |||||
| 6 | W10850024 | Door, Hinge (upper) (Replaces: W10783754) |
|
$ 85.53 | |||||
| 7 | W10850044 | Door, Hinge (lower) (Replaces: W10783755) |
|
$ 85.42 | |||||
| 8 | WP488627 | Screw (Replaces: 342055) |
|
$ 8.11 | |||||
| 9 | W10631412 | Hinge Cover, Top (chrome Shadow) |
|
$ 25.76 | |||||
| 10 | W11429587 | Assembly, Door Catch (Replaces: W10610880) |
|
Immediately | $ 26.55 | ||||
| 11 | W10763835 | Seal, Door |
|
Immediately | $ 129.79 | ||||
| 12 | WPW10612925 | Badge (maytag) (Replaces: W10612925) |
|
Immediately | $ 42.36 | ||||
| 13 | W10669024 | Cover, Door Catch (chrome Shadow) |
|
$ 25.65 |
