SELECT A DIAGRAM

01 - Cover Sheet

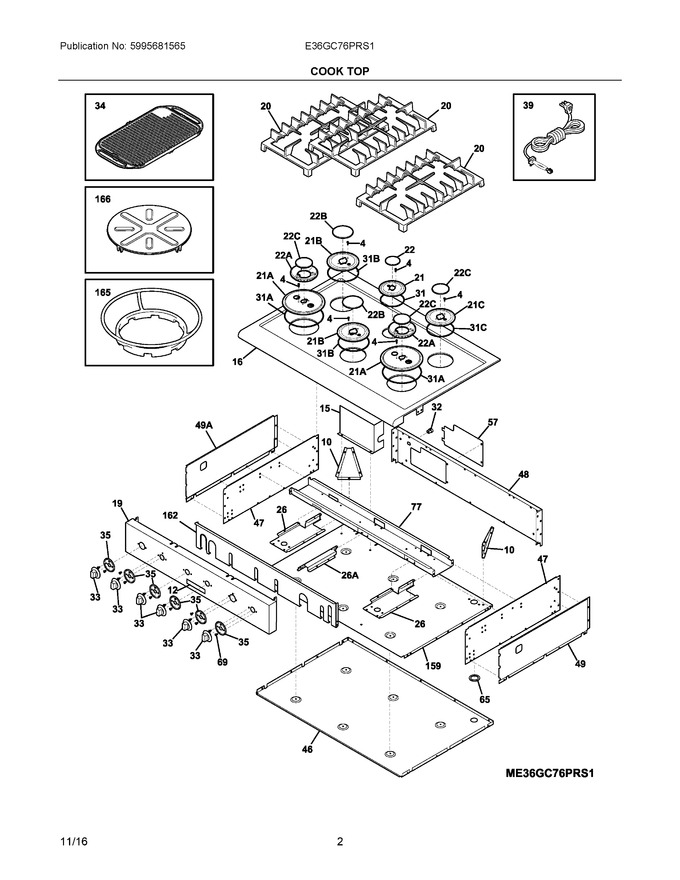

02 - Cook Top


03 - Burner


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	316240600		Screw, Hex Wash, 6-32 X .485   (Replaces: 5304472956)			Immediately	$ 13.48
10	318392500		Bracket, Box, (2)		Appelez-nous	-
12	241603101		Label, Nameplate, Elux/icon				$ 89.96
15	318024206		Deflector, Spark Module		Appelez-nous	-
16	318185238		Main Top Assy, Frame/glass, Stainless/black				$ 2,438.54
19	305596202		Panel, Control, Stainless				$ 329.58
20	809103801		Grate, Burner, Black, Double				$ 275.54
21	305596407		Skirt, 5k Burner, Black				$ 65.36
22	5304508441		Cap, 5k Burner, Matte, Black			Immediately	$ 38.93
26	305593700		Bracket, Channel Mtg., Twin Burner, (2)		Appelez-nous	-
31	316242002		Seal, 5k/9.5k Burner				$ 27.80
32	5304513507		Strain Relief   (Replaces: 3201437)				$ 10.11
33	318242275		Knob, Control, Stainless			Immediately	$ 110.20
34	318251600		Griddle				$ 240.03
35	318251911		Skirt, (4)				$ 81.73
39	305574902		Power Cord, Electrical, Supply				$ 77.18
46	318242814		Panel, Base		Appelez-nous	-
47	318241712		Panel, Side, (2)		Appelez-nous	-
48	318241806		Panel, Rear		Appelez-nous	-
49	318241904		Panel, Interior Side, Rh		Appelez-nous	-
57	318286400		Panel, Service		Appelez-nous	-
65	5304506478		Seal, Rubber				$ 12.60
69	803910601		Screw		Appelez-nous	-
77	305594300		Bracket, Burner Support		Appelez-nous	-
159	318242955		Panel, Bottom		Appelez-nous	-
162	5304508507		Deflector, Heat		Appelez-nous	-
165	318254300		Support, Wok				$ 288.23
166	318254202		Simmer Plate				$ 182.75
21A	305596412		Skirt, Twin Burner, Black, G5			Immediately	$ 77.18
21B	305596410		Skirt, 14k Burner, Black				$ 68.25
21C	305596408		Skirt, 9.5k Burner, Black				$ 74.03
22A	139029202		Cap, Burner, Brass, G5				$ 145.69
22B	5304508443		Cap, 14k Burner, Matte, Black			Immediately	$ 51.12
22C	5304508442		Cap, 9.5k Burner, Matte, Black			Immediately	$ 40.61
26A	305593800		Bracket, Channel Mtg.		Appelez-nous	-
31A	316515203		Seal, 17k Twin Burner, (2)				$ 78.12
31B	316242000		Seal, 12k/14k Burner				$ 81.90
31C	316242001		Seal, 9.5k/12k Burner				$ 25.62
49A	318241905		Panel, Interior Side, Lh		Appelez-nous	-
NI	318163602		Cleaner, Stainless Steel				$ 26.51
NI	316459400		Pad, Cleaning		Appelez-nous	-
NI	318163601		Cleaner-cooktop				$ 0.42
NI	305338602		Screw, (3)		Appelez-nous	-
NIA	305322203		Seal, Strip, Black, Glass Top		Appelez-nous	-
NIA	5303323140		Screw, Ground   (Replaces: 305452800)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
