SELECT A DIAGRAM
01 - Cover Sheet
02 - Cook Top

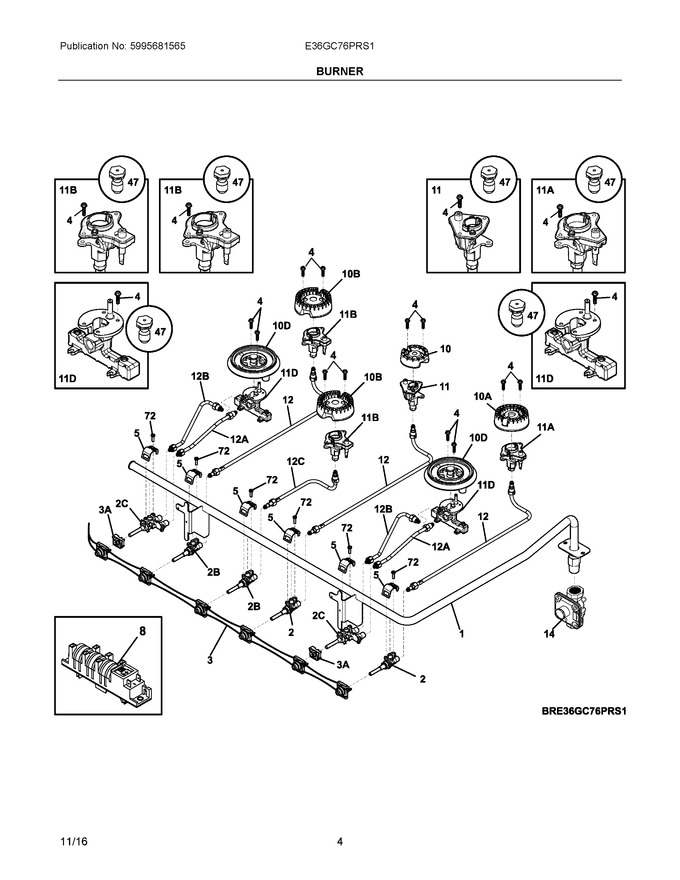

03 - Burner
04 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304508506 | Manifold Pipe |
|
- | |||||
| 2 | 5304508463 | Valve, Saddle, 1125/1250 Btu, Blue Stem |
|
- | |||||
| 3 | 305595116 | Switch Assembly, Ignitor, W/harness |
|
$ 126.40 | |||||
| 4 | 316240600 | Screw, Hex Wash, 6-32 X .485 (Replaces: 5304472956) |
|
Immediately | $ 13.48 | ||||
| 5 | 357733402 | Bracket, Valve Fixing |
|
$ 10.73 | |||||
| 8 | 5304537114 | Module, Spark, 6 Outputs (Replaces: 5304505696) |
|
Immediately | $ 53.20 | ||||
| 10 | 316438200 | Burner, Sealed, 5k |
|
Immediately | $ 63.00 | ||||
| 11 | 5304498786 | Ignitor/orifice Assy., Top Burner, 5k |
|
$ 92.14 | |||||
| 12 | 318221383 | Tubing, 5/9.5/14k, Rear, (3) |
|
- | |||||
| 14 | 5304519943 | Regulator, Pressure (Replaces: 318122727) |
|
$ 144.37 | |||||
| 47 | 5304506292 | Lp Kit, Gas Conversion |
|
$ 88.41 | |||||
| 72 | 5304508436 | Screw, Saddle Valve, M4 |
|
- | |||||
| 10A | 316558300 | Burner, Sealed, 9.5k |
|
Immediately | $ 58.28 | ||||
| 10B | 316438600 | Burner, Sealed, 14k |
|
$ 88.67 | |||||
| 10D | 5304501023 | Burner Assembly, G5 |
|
$ 184.43 | |||||
| 11A | 5304498787 | Ignitor/orifice Assy., Top Burner, 9.5k |
|
$ 133.14 | |||||
| 11B | 5304500255 | Ignitor/orifice Assy., Top Burner, 14k |
|
$ 74.03 | |||||
| 11D | 5304529110 | Ignitor/orifice Assy., Top Burner, Twin, 18k, W/holder (Replaces: 316440108) |
|
Immediately | $ 168.98 | ||||
| 12A | 5304508466 | Tube, Dual Burner, Secondary |
|
- | |||||
| 12B | 5304508467 | Tube, Dual Burner, Main |
|
- | |||||
| 12C | 318221384 | Tubing, 14k, Front |
|
- | |||||
| 2B | 5304508464 | Valve, Saddle, 1800/2000 Btu, Red Stem |
|
Immediately | $ 73.31 | ||||
| 2C | 5304508465 | Valve, Saddle, 1500/2000 Btu, Clear Stem |
|
$ 225.82 | |||||
| 3A | 5304508439 | Adapter, Switch, Dual Valve |
|
$ 17.69 | |||||
| NI | 803910601 | Screw |
|
- | |||||
| NI | 318243104 | Harness, Burner Wiring |
|
$ 183.44 | |||||
| NI | 305338602 | Screw, (3) |
|
- | |||||
| NIA | 202855101 | Holder, Cable |
|
$ 1.58 | |||||
| NIB | 5303323140 | Screw, Ground (Replaces: 305452800) |
|
- | |||||
| NIC | 131202300 | Screw, (4) (Replaces: 305376102) |
|
Immediately | $ 14.96 | ||||
| NIDA | 5304501620 | Sleeve, Silicone |
|
- |
