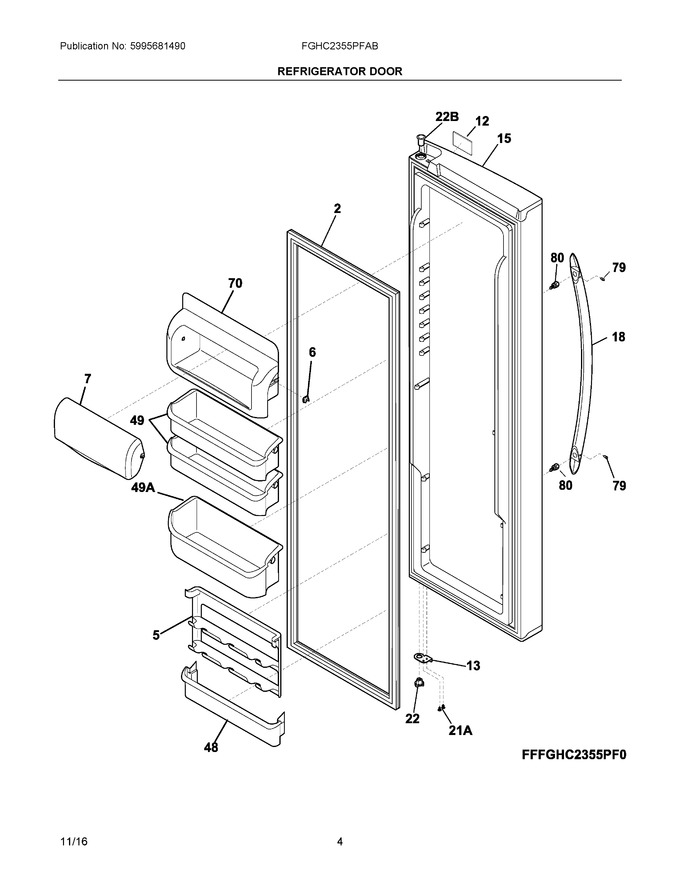

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 241510207 | Gasket-refr Door, Gray, Magnetic (Replaces: 241510205) |
|
Immediately | $ 107.93 | ||||
| 5 | 241516102 | Rack-can |
|
$ 101.54 | |||||
| 6 | 241515901 | Lug-dairy Compartment |
|
$ 47.19 | |||||
| 7 | 241515606 | Door-dairy (Replaces: 241515601) |
|
$ 45.51 | |||||
| 12 | 242015201 | Label-nameplate |
|
Immediately | $ 7.67 | ||||
| 13 | 241990201 | Door Stop, Black, Ref |
|
$ 23.63 | |||||
| 15 | 242178111 | Door-refr, Stainless, Complete |
|
$ 709.23 | |||||
| 18 | 241930101 | Handle-door, Stainless |
|
$ 178.76 | |||||
| 22 | 241990301 | Bearing-hinge, Gray |
|
$ 7.88 | |||||
| 48 | 241511701 | Bin-door, Ref, W/trim (Replaces: 241808207) |
|
Immediately | $ 74.68 | ||||
| 49 | 241505301 | Bin-door, 2 Liter (Replaces: 241808213) |
|
Immediately | $ 84.89 | ||||
| 70 | 241515801 | Compartment-dairy, Removable |
|
$ 197.66 | |||||
| 79 | 218755405 | Screw-set, 10-32 X 0.375 (Replaces: 218755408) |
|
Immediately | $ 22.84 | ||||
| 80 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 20.67 | ||||
| 21A | 240442708 | Screw-#10-32 X 3/4, Zinc (Replaces: 240442706) |
|
$ 9.27 | |||||
| 22B | 241760404 | Bearing, Hinge, Top |
|
$ 14.18 | |||||
| 49A | 241505501 | Bin-door, Gallon, W/trim (Replaces: 241808210) |
|
Immediately | $ 110.03 | ||||
| NIA | 241601002 | Wrench, Allen |
|
- |
