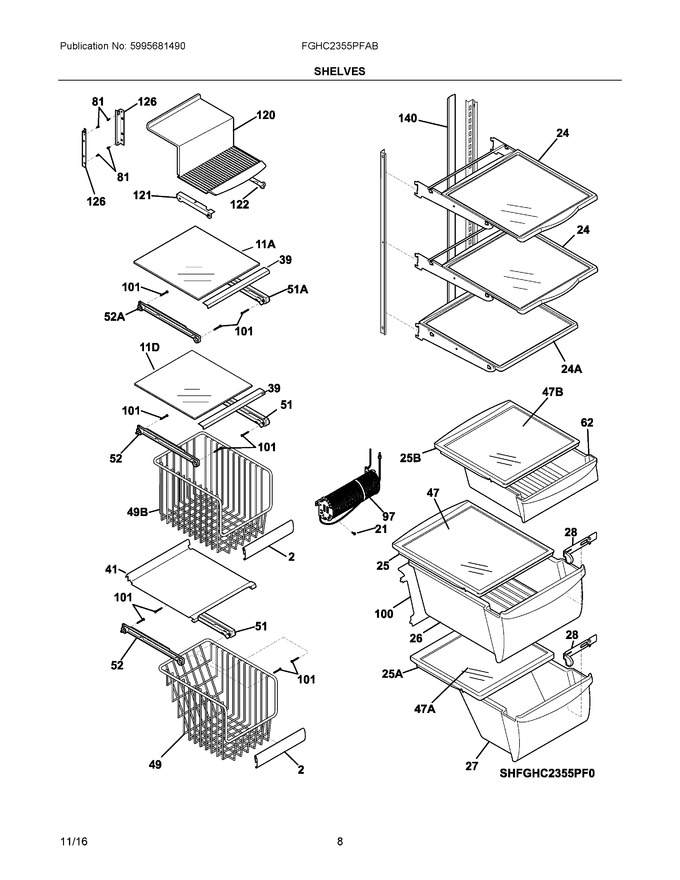

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 241510605 | Trim-basket |
|
- | |||||
| 21 | 218843801 | Screw, Hx Wshr Hd Sems, 8-15a X 0.625 (Replaces: 5304455658) |
|
$ 16.01 | |||||
| 24 | 240350160 | Shelf-"spill-safe", Cantilever, Sliding (Replaces: 240350158) |
|
Immediately | $ 162.62 | ||||
| 25 | 240599301 | Cover-crisper Pan, Upper |
|
Immediately | $ 104.87 | ||||
| 26 | 240351061 | Pan-crisper, Upper |
|
Immediately | $ 122.23 | ||||
| 27 | 240351240 | Pan-crisper, Lower |
|
$ 226.05 | |||||
| 28 | 240362201 | Control-humidity |
|
$ 77.18 | |||||
| 39 | 240367603 | Trim-shelf, 11.65", Front |
|
$ 82.69 | |||||
| 41 | 241637601 | Baffle-air |
|
$ 87.05 | |||||
| 47 | 240350649 | Insert-pan Cover, Glass |
|
Immediately | $ 137.66 | ||||
| 49 | 241515001 | Basket-sliding |
|
$ 209.10 | |||||
| 51 | 241514501 | Hanger-basket, Rh |
|
$ 81.90 | |||||
| 52 | 241514601 | Hanger-basket, Lh |
|
$ 85.05 | |||||
| 62 | 241974604 | Pan-meat (Replaces: 241974601) |
|
$ 146.22 | |||||
| 81 | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 15.75 | |||||
| 97 | 242220208 | Tube-water Inlet, .315 - 97.50", Natural |
|
Immediately | $ 48.04 | ||||
| 100 | 240326304 | Cover-water Tank |
|
$ 81.74 | |||||
| 101 | 218493101 | Screw, Hex Washer Head, 8-18ab X 1-3/4 |
|
$ 14.96 | |||||
| 120 | 241691701 | Shelf-ice Cream |
|
$ 82.69 | |||||
| 121 | 241504701 | Rail-ice Cream Shelf, Lh |
|
$ 71.66 | |||||
| 122 | 241504702 | Rail-ice Cream Shelf, Rh |
|
$ 83.42 | |||||
| 126 | 241674401 | Channel, Auger Mtg, Lh |
|
$ 52.76 | |||||
| 140 | 241812502 | Channel, Wtr Tube Cover |
|
$ 76.97 | |||||
| 101A | 241637202 | Screw, Hex Sems Head, 8-18ab X 1-3/4 |
|
$ 5.90 | |||||
| 11A | 240443358 | Shelf-freezer, Glass, Upper |
|
$ 107.86 | |||||
| 11D | 241711213 | Shelf-freezer, Glass, Lower (Replaces: 240443357) |
|
$ 96.06 | |||||
| 126A | 241674402 | Channel, Auger Mtg, Rh |
|
$ 48.04 | |||||
| 24A | 240355278 | Shelf-"spill-safe", Fixed |
|
- | |||||
| 25A | 240350903 | Cover-crisper Pan, Lower |
|
$ 102.21 | |||||
| 25B | 240599803 | Frame-deli Cover, Upper |
|
Immediately | $ 100.61 | ||||
| 47A | 240350603 | Insert-pan Cover, Glass |
|
Immediately | $ 128.36 | ||||
| 47B | 240443391 | Insert-pan Cover, Glass |
|
Immediately | $ 137.35 | ||||
| 49B | 241514901 | Basket-sliding, Upper, Full |
|
- | |||||
| 51A | 241514701 | Hanger-shelf Glass, Rh |
|
$ 70.88 | |||||
| 52A | 241514801 | Hanger-shelf Glass, Lh |
|
$ 381.94 | |||||
| NI | 241595202 | Clip-slide, Crisper |
|
$ 20.22 | |||||
| NI | 240349801 | Clip-slide, Pan |
|
$ 22.75 | |||||
| NI | 240362101 | Clip-slide, Cover |
|
$ 52.25 | |||||
| NIA | 241781601 | Seal-return Air |
|
$ 10.11 | |||||
| NIA | 241806601 | Connector-water, Straight, 5/16 To 5/16 (Replaces: 242103001) |
|
Immediately | $ 78.40 | ||||
| NIB | 242200102 | Clip, Tubing, 90 Deg Elbow (Replaces: 242200101) |
|
$ 11.81 |
