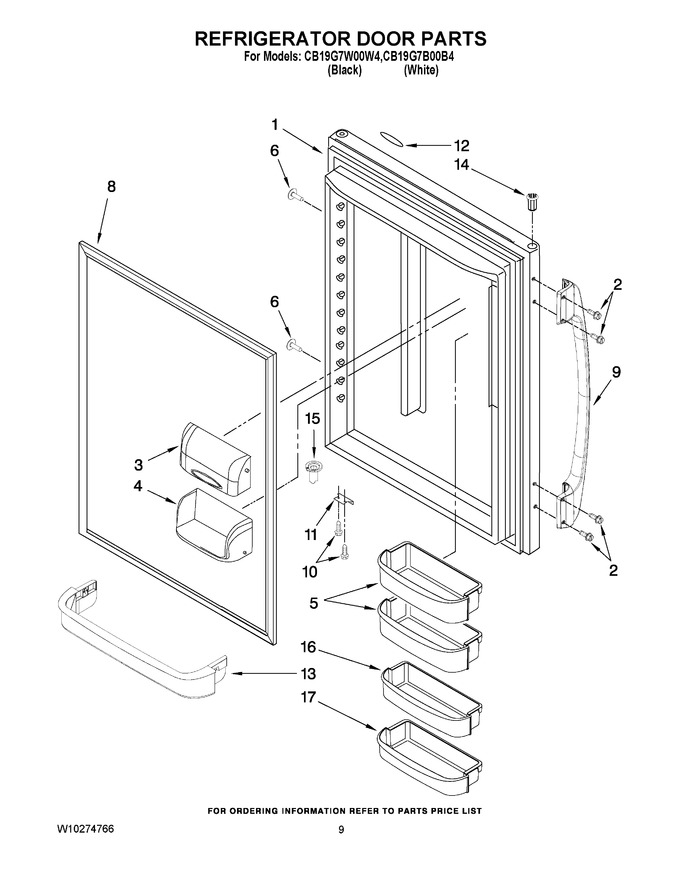

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12658529WQ | Door, Refrigerator (white) |
|
$ 439.53 | |||||
| 1 | 12658529BQ | Door, Refrigerator (black) |
|
$ 443.92 | |||||
| 2 | 67006806 | Screw, Handle (black) (Replaces: 12992803) |
|
$ 14.02 | |||||
| 2 | 12992802 | Screw, Handle (white) |
|
- | |||||
| 3 | WP67003637 | Door, Dairy (Replaces: 12804701SP) |
|
Immediately | $ 82.67 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 88.01 | ||||
| 5 | 67001141 | Bucket, Small (2) (Replaces: 12557202) |
|
Immediately | $ 78.91 | ||||
| 6 | 12991103 | Screw, Handle Hole (white) |
|
$ 12.03 | |||||
| 6 | 12991105 | Screw, Handle Hole (black) |
|
- | |||||
| 8 | WPW10436245 | Gasket, Door (black) (Replaces: W10164031) |
|
$ 362.36 | |||||
| 8 | WPW10443309 | Gasket, Door (white) (Replaces: W10164030) |
|
Immediately | $ 365.24 | ||||
| 9 | 12845806B | Handle, Door (black) |
|
- | |||||
| 9 | 12845806W | Handle, Door (white) |
|
- | |||||
| 10 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 11 | 12815801 | Stop, Door (black) |
|
- | |||||
| 11 | W11708403 | Stop, Door (white) (Replaces: 10447112) |
|
Immediately | $ 14.75 | ||||
| 12 | 12951301 | Nameplate (white) |
|
- | |||||
| 12 | 12651303 | Nameplate (black) |
|
- | |||||
| 13 | 67001139 | Retainer, Ref Door (Replaces: 12557907) |
|
Immediately | $ 104.79 | ||||
| 14 | WP67004977 | Bushing (4) (white) (Replaces: 10961006W) |
|
$ 8.20 | |||||
| 14 | 67004978 | Bushing (4) (black) (Replaces: 10961006B) |
|
$ 22.10 | |||||
| 15 | WP67003638 | Closure, Door (white) (Replaces: 12028505W) |
|
Immediately | $ 8.15 | ||||
| 15 | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
$ 90.32 | |||||
| 16 | WP67001021 | Bucket, Medium (1) (Replaces: 12557204V) |
|
$ 84.95 | |||||
| 17 | 12737704 | Bucket, Short (1) |
|
- |
