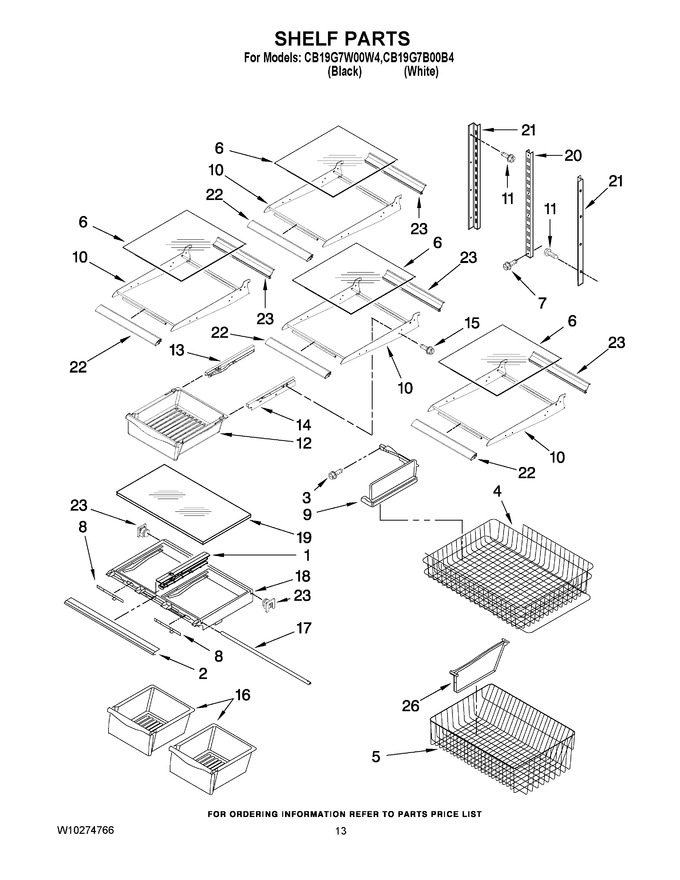

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10671238 | Rail, Center Crisper (Replaces: 12530701) |
|
Immediately | $ 118.46 | ||||
| 2 | WPW10231481 | Trim, Crisper (Replaces: W10231481) |
|
$ 117.42 | |||||
| 3 | 12990601 | Screw |
|
- | |||||
| 4 | 12896401 | Basket, Freezer Upper |
|
- | |||||
| 5 | W10503182 | Basket, Freezer (lower) (Replaces: 13016001) |
|
$ 241.97 | |||||
| 6 | 12204808V | Glass, Shelf |
|
- | |||||
| 7 | W10709795 | Screw (Replaces: 12990515) |
|
$ 13.79 | |||||
| 8 | WP67005864 | Slide, Humidity Control (Replaces: 12530805SP) |
|
Immediately | $ 8.20 | ||||
| 9 | 12693802 | Divider, Basket (upper) |
|
- | |||||
| 10 | 10460116V | Frame, Shelf |
|
- | |||||
| 11 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 7.30 | ||||
| 12 | WP67001308 | Pan, Deli (Replaces: 12656504V) |
|
Immediately | $ 138.10 | ||||
| 13 | WP67001054 | Glide, Left (Replaces: 12656601V) |
|
Immediately | $ 8.82 | ||||
| 14 | WP67001053 | Glide, Right (Replaces: 12656602V) |
|
Immediately | $ 9.24 | ||||
| 15 | W11233072 | Screw, Glide (4) (Replaces: 12990302SP) |
|
Immediately | $ 14.72 | ||||
| 16 | W10833528 | Pan, Crisper (Replaces: 12531305) |
|
Immediately | $ 139.95 | ||||
| 17 | WP12227302WD | Brace, Crisper (Replaces: 12227302WD) |
|
$ 111.60 | |||||
| 18 | WPW10671240 | Frame, Crisper (Replaces: 12530901SP) |
|
Immediately | $ 138.10 | ||||
| 19 | WP67006877 | Glass, Crisper Cover (Replaces: 12204823) |
|
Immediately | $ 209.75 | ||||
| 20 | 67001073 | Ladder, Center (Replaces: 12435807) |
|
$ 56.89 | |||||
| 21 | 12710606 | Ladder, Side |
|
- | |||||
| 22 | W10231328 | Trim, Front Shelf |
|
- | |||||
| 23 | 10946012V | Trim, Rear Shelf |
|
- | |||||
| 26 | 12659608 | Divider, Basket (lower) |
|
- |
