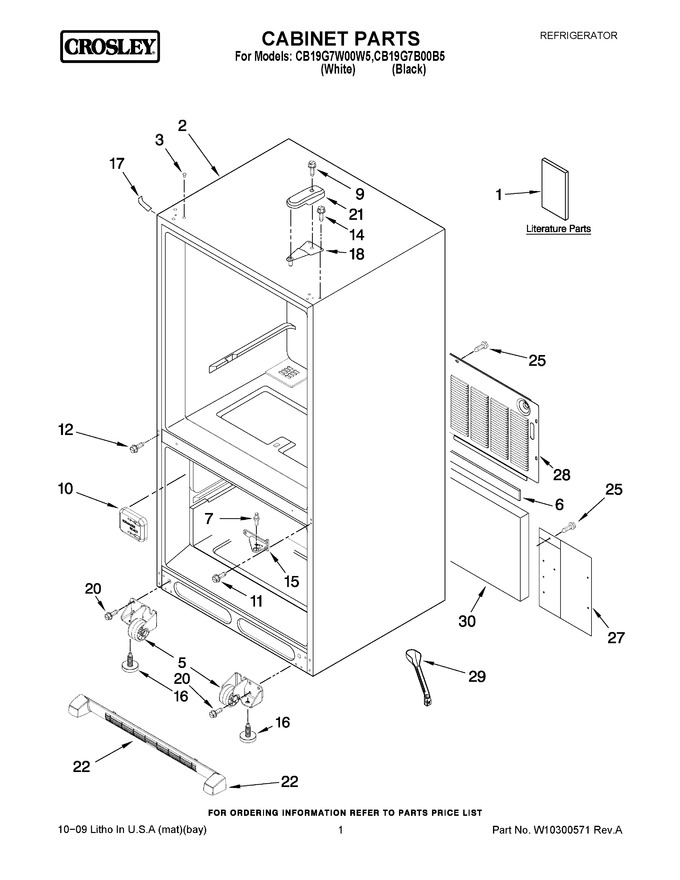

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10175450 | Use & Care Guide |
|
- | |||||
| 1 | W10279338 | Tech Sheet |
|
- | |||||
| 1 | W10183285 | Energy Guide |
|
- | |||||
| 2 | N/P | Cabinet (not A Servicable Part) |
|
- | |||||
| 3 | WP12246608 | Plug, Button (3) (black) (Replaces: M0310731) |
|
Immediately | $ 8.15 | ||||
| 3 | WP67001130 | Plug, Button (3) (white) (Replaces: M0310729) |
|
Immediately | $ 5.98 | ||||
| 5 | 12580304 | Roller Assy. (2) |
|
$ 5.84 | |||||
| 6 | B5759655 | Gasket |
|
$ 13.03 | |||||
| 7 | WP67006642 | Pin, Center Hinge (Replaces: 10351006) |
|
$ 8.78 | |||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.55 | ||||
| 10 | WP67001098 | Cover-fill Tube (Replaces: 12477501) |
|
$ 8.43 | |||||
| 11 | W11573362 | Screw (Replaces: 12992201) |
|
$ 14.72 | |||||
| 12 | WP489349 | Screw (Replaces: 12990101) |
|
Immediately | $ 8.43 | ||||
| 14 | WP489349 | Screw (3) (Replaces: 12992403) |
|
Immediately | $ 8.43 | ||||
| 15 | W11689473 | Hinge, Center (white) (Replaces: 12607103WD) |
|
$ 69.79 | |||||
| 15 | WP12607104ED | Hinge, Center (black) (Replaces: 12607104ED) |
|
$ 167.35 | |||||
| 16 | 10354002 | Foot, Brake |
|
Immediately | $ 7.38 | ||||
| 17 | 67003485 | Cover, Corner (black) (Replaces: 12587703B) |
|
Immediately | $ 22.14 | ||||
| 17 | 12587703W | Cover, Corner (white) |
|
$ 22.90 | |||||
| 18 | WP12566606ED | Hinge, Top (Replaces: 12566604ED) |
|
Immediately | $ 47.13 | ||||
| 20 | 67006564 | Screw (8) (Replaces: 12991302) |
|
Immediately | $ 8.15 | ||||
| 21 | 67001012 | Cover, Hinge (black) (Replaces: 12477601B) |
|
$ 49.71 | |||||
| 21 | 67001014 | Cover Hinge (white) (Replaces: 12477601W) |
|
$ 22.34 | |||||
| 22 | WPW10534166 | Grille, Toe (white) (Replaces: W10236649) |
|
Immediately | $ 76.61 | ||||
| 22 | WPW10534167 | Grille, Toe (black) (Replaces: W10236650) |
|
$ 91.42 | |||||
| 25 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 27 | W11684617 | Cover, Water Valve (Replaces: W10217701) |
|
$ 21.36 | |||||
| 28 | W10210978 | Cover, Unit |
|
$ 201.78 | |||||
| 29 | W10619951 | Tube, Drain (Replaces: W10210987) |
|
Immediately | $ 42.39 | ||||
| 30 | 12820505 | Pad-acoustic |
|
$ 71.70 |
