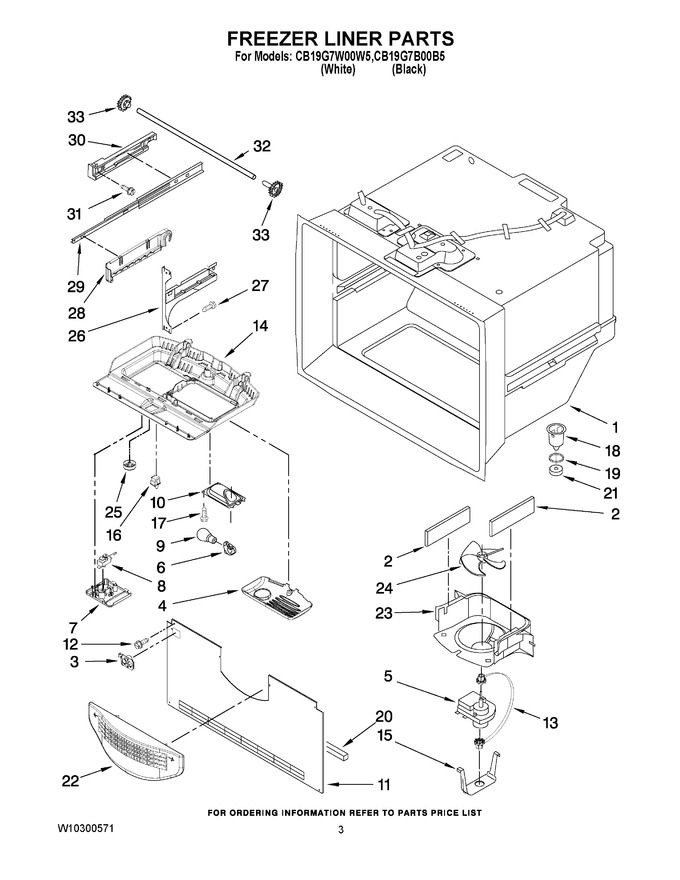

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not Aseviceable Part) |
|
- | |||||
| 2 | W11451451 | Gasket, Foam (Replaces: A3189397) |
|
$ 13.03 | |||||
| 3 | W11448709 | Guide, Fill Tube (Replaces: 12932103) |
|
$ 25.87 | |||||
| 4 | 12476302 | Cover, Light |
|
- | |||||
| 5 | WPW10128551 | Motor, Evaporator (Replaces: W10128551) |
|
Immediately | $ 78.75 | ||||
| 6 | W11447232 | Socket, Light (Replaces: 12570701V) |
|
Immediately | $ 13.87 | ||||
| 7 | 12476101 | Panel Control |
|
- | |||||
| 8 | WP67003000 | Control, Fz Temp (Replaces: 12351008) |
|
Immediately | $ 184.98 | ||||
| 9 | W11679940 | Bulb, Light (Replaces: W10194422V) |
|
Immediately | $ 11.30 | ||||
| 10 | W11702858 | Housing, Light (Replaces: 12476401V) |
|
$ 90.11 | |||||
| 11 | 12226107 | Cover, Evaporator |
|
$ 27.60 | |||||
| 12 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 13 | W10121318 | Grommet |
|
$ 50.80 | |||||
| 14 | 12476002 | Module, Freezer Control |
|
$ 60.80 | |||||
| 15 | 13058002 | Clip, Evap. Motor |
|
$ 12.66 | |||||
| 16 | W11396033 | Switch, Light (Replaces: 12466105) |
|
Immediately | $ 37.30 | ||||
| 17 | 12990514V | Screw |
|
- | |||||
| 18 | W10815413 | Funnel, Drain (Replaces: D7753903) |
|
Immediately | $ 51.50 | ||||
| 19 | WPM0500703 | Seal (Replaces: M0500703) |
|
$ 11.47 | |||||
| 20 | A3189394 | Gasket, Bottom |
|
$ 28.74 | |||||
| 21 | WPB8381501 | Gasket (Replaces: B8381501) |
|
$ 7.78 | |||||
| 22 | WPW10175909 | Grille, Fz Air (Replaces: 13024803) |
|
Immediately | $ 85.72 | ||||
| 23 | WPW10167023 | Shroud, Evap.fan (Replaces: 13057901) |
|
Immediately | $ 66.28 | ||||
| 24 | WP2169142 | Blade, Fan (evaporator) (Replaces: 2169142) |
|
Immediately | $ 43.41 | ||||
| 25 | 12476209 | Knob, Fz Control |
|
- | |||||
| 26 | WPW10330991 | Bracket, Door (left) (Replaces: W10122147) |
|
$ 164.31 | |||||
| 26 | WPW10330993 | Bracket, Door (right) (Replaces: W10122148) |
|
$ 166.09 | |||||
| 27 | WP98165 | Screw (8) (Replaces: 12990521) |
|
$ 8.57 | |||||
| 28 | WPW10280613 | Cradle, Basket (right) (Replaces: W10280613) |
|
$ 92.15 | |||||
| 28 | WPW10280608 | Cradle, Basket (left) (Replaces: W10280608) |
|
$ 92.15 | |||||
| 29 | W11658402 | Slide, Drawer (2) (Replaces: W10120018) |
|
Immediately | $ 127.51 | ||||
| 30 | W10128118 | Adapter, Slide (left) |
|
- | |||||
| 30 | W10128119 | Adapter, Slide (right) |
|
- | |||||
| 31 | WP489474 | Screw (6) (Replaces: 12990501) |
|
Immediately | $ 8.55 | ||||
| 32 | W10802329 | Shaft (Replaces: 12812901WD) |
|
$ 115.35 | |||||
| 33 | 12002497 | Gear (includes Lh & Rh) |
|
Immediately | $ 22.51 | ||||
| NI | W10280150 | Harness, Lights (freezer) |
|
- |
